4
DRAIN SYSTEM

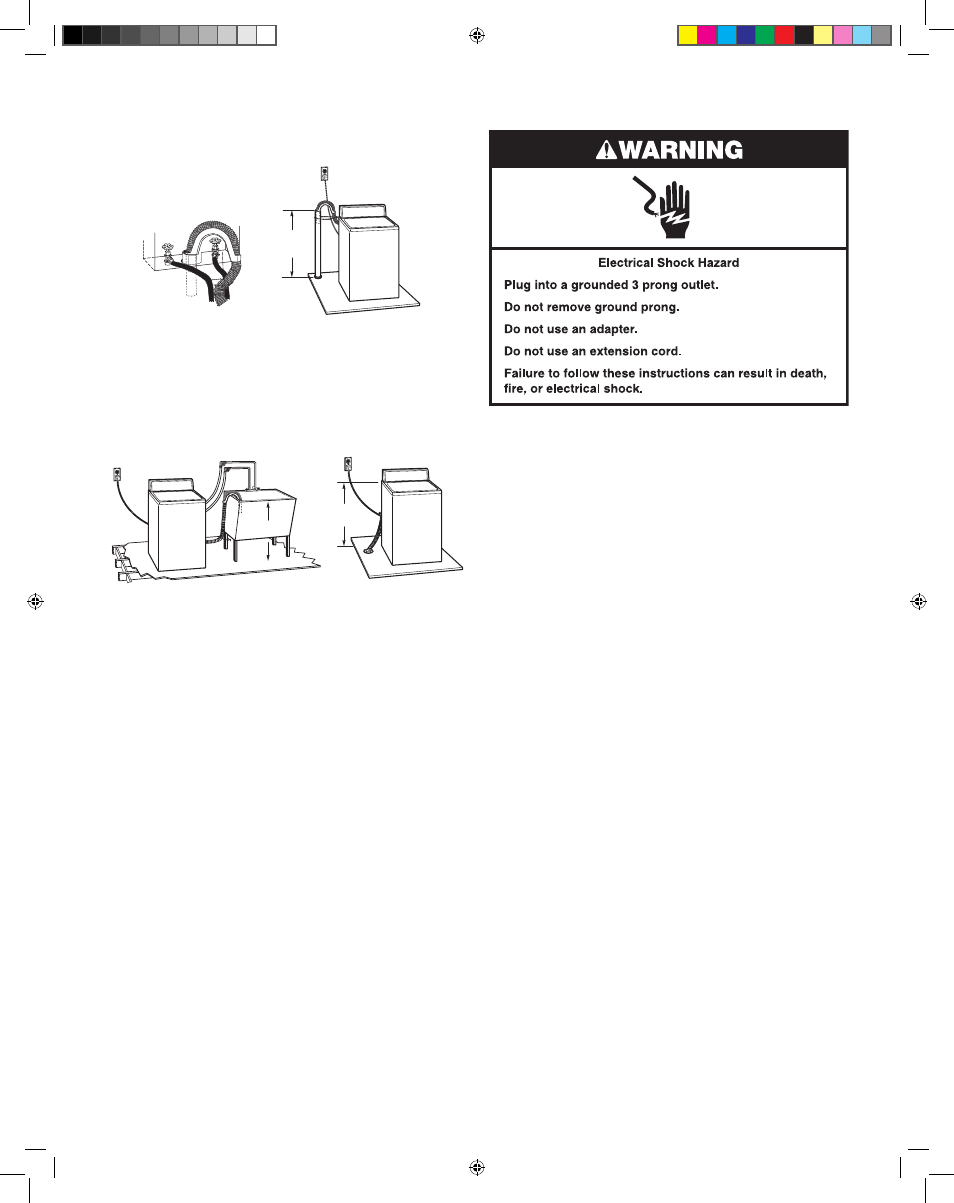

Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select method you need.
The standpipe drain requires a minimum diameter standpipe
of 2" (51 mm). The minimum carry-away capacity can be no less
than 17 gal. (64 L) per minute. A 2" (51 mm) diameter to 1" (25 mm)
diameter standpipe adapter kit is available. See “Tools and Parts”.
The top of the standpipe must be at least 39" (990 mm) high
and no higher than 96" (2.4 m) from the bottom of the washer.
The laundry tub drain system needs a minimum 20 gal. (76 L)
capacity laundry tub. The top of the laundry tub must be at least
39" (990 mm) above the floor and no higher than 96" (2.4 m) from
the bottom of the washer.
The floor drain system requires a siphon break that may
be purchased separately. See “Tools and Parts”. The siphon
break must be a minimum of 28" (710 mm) from the bottom
of the washer. Additional hoses might be needed.
ELECTRICAL REQUIREMENTS
■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker on
a separate circuit serving only this washer is recommended.
■ This washer is equipped with a power supply cord having
a 3 prong grounding plug.
■ To minimize possible shock hazard, the cord must be
plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances.
If a mating outlet is not available, it is the personal
responsibility and obligation of the customer to have the
properly grounded outlet installed by a qualified electrician.
■ If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure
the washer is properly grounded.
■ Do not have a fuse in the neutral or ground circuit.
Wall standpipe Floor standpipe
Laundry Tub Floor
39"
(990 mm)
39"
(990 mm)
28"
(710 mm)
