ENG - 29

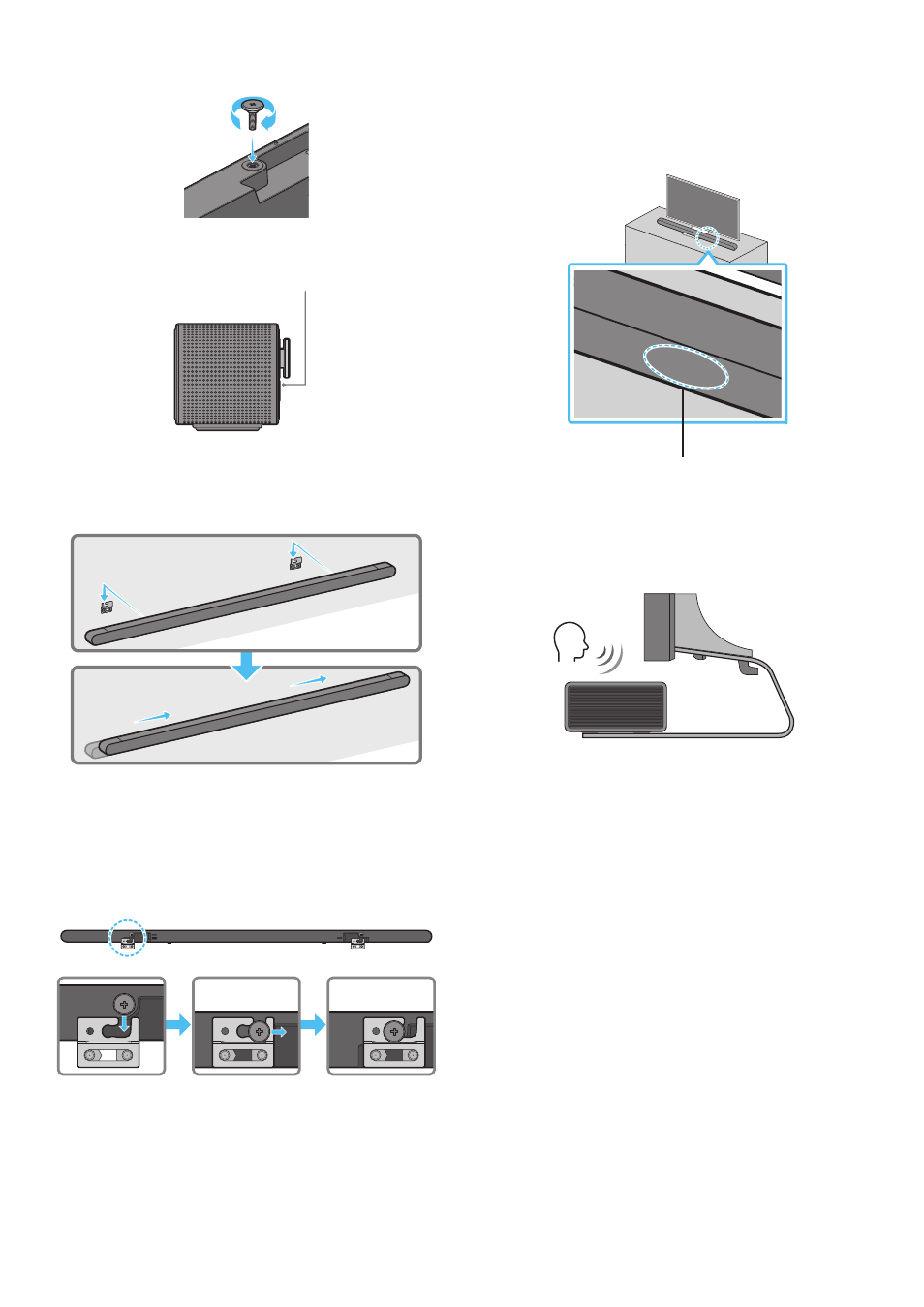

6. Install the 2 Bracket-Wall Mounts in the correct orientation on the
rear of the Soundbar using 2 Holder-screws .
• When assembling, make sure the hanger part of the Bracket-
Wall Mounts are located behind the rear of the Soundbar.
Rear of Soundbar
Right end of Soundbar
7. Install the Soundbar with the attached Bracket-Wall Mounts by
hanging the Bracket-Wall Mounts on the Holder-Screws on the
wall.
8. Slide the Soundbar down as shown below so that the Bracket-Wall
Mounts rest securely on the Holder-Screws .
• Insert the Holder-Screws into the wide (rear) part of the
Bracket-Wall Mounts , and then slide the Bracket-Wall Mounts
down so that the Bracket-Wall Mounts rest securely on the
Holder-Screws .
SERVICE
HDMI
(ARC)
SERVICE
HDMI
(ARC)
SERVICE HDMI (ARC) DC 19V
09 INSTALLING THE
SOUNDBAR IN FRONT OF
TV
Microphones
As illustrated in the image, align the center of the Soundbar with the
center of the TV, carefully place the Soundbar onto the TV stand.
At this time, place the microphones at the front of the stand not to
interfere with voice recognition.
Right end of Soundbar
TV
NOTE
• Make sure the Soundbar is placed on a flat and solid surface.
• Insufficient gap from the TV may cause voice recognition and
acoustic problems.
• The illustration above differs with the respective model.
