Page 10: Usb connection
17
16

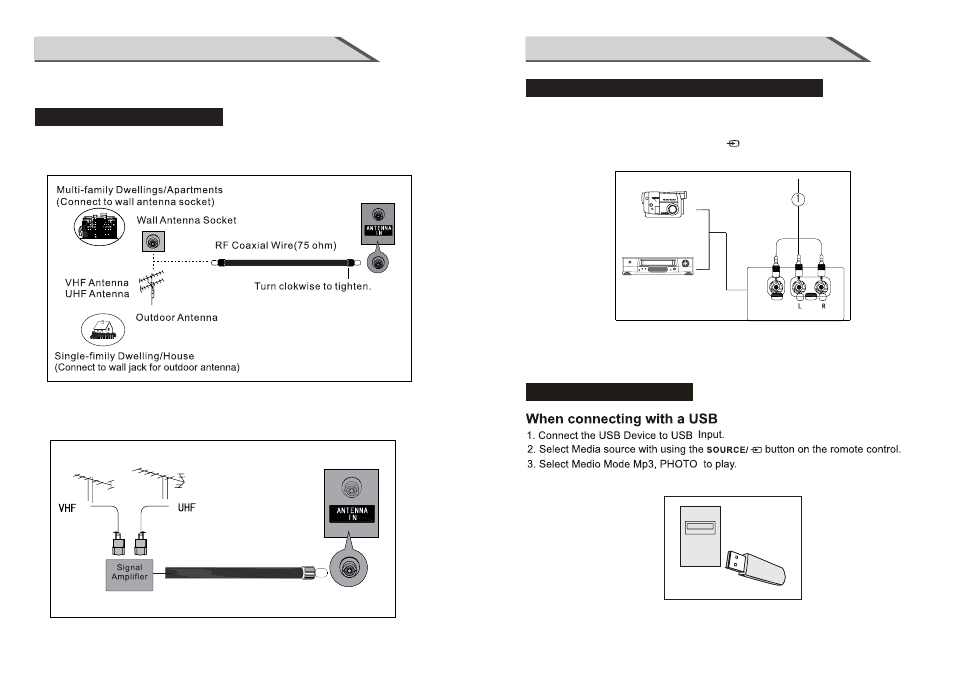

CONNECTIONS & SETUP
CONNECTIONS & SETUP
ANTENNA CONNECTION
■For optimum picture quality, adjust antenna direction.
■An antenna cable and converter are not supplied.
■
you have finished connecting all equipment.
To prevent the equipment damage, never plug in any power cords until
■In poor signal areas, to get better picture quality, install a signal amplifier
to the antenna as shown below.
■If signal needs to be split for two TVs, use an antenna signal splitter for connection.
1. Connect the AV jacks between TV and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Select AV source with using the SOURCE/ button on the remote control.
3. Operate the corresponding external equipment. Refer to external equipment
operating guide.
EXTERNAL EQUIPMENT CONNECTIONS
Video Game Set
PPHHIILLIIPPSS
DDRRIIVVEE
TTUURRBBOO
Camcorder
AV
USB CONNECTION
USB
Note:Can only support MP3 format of music
