3

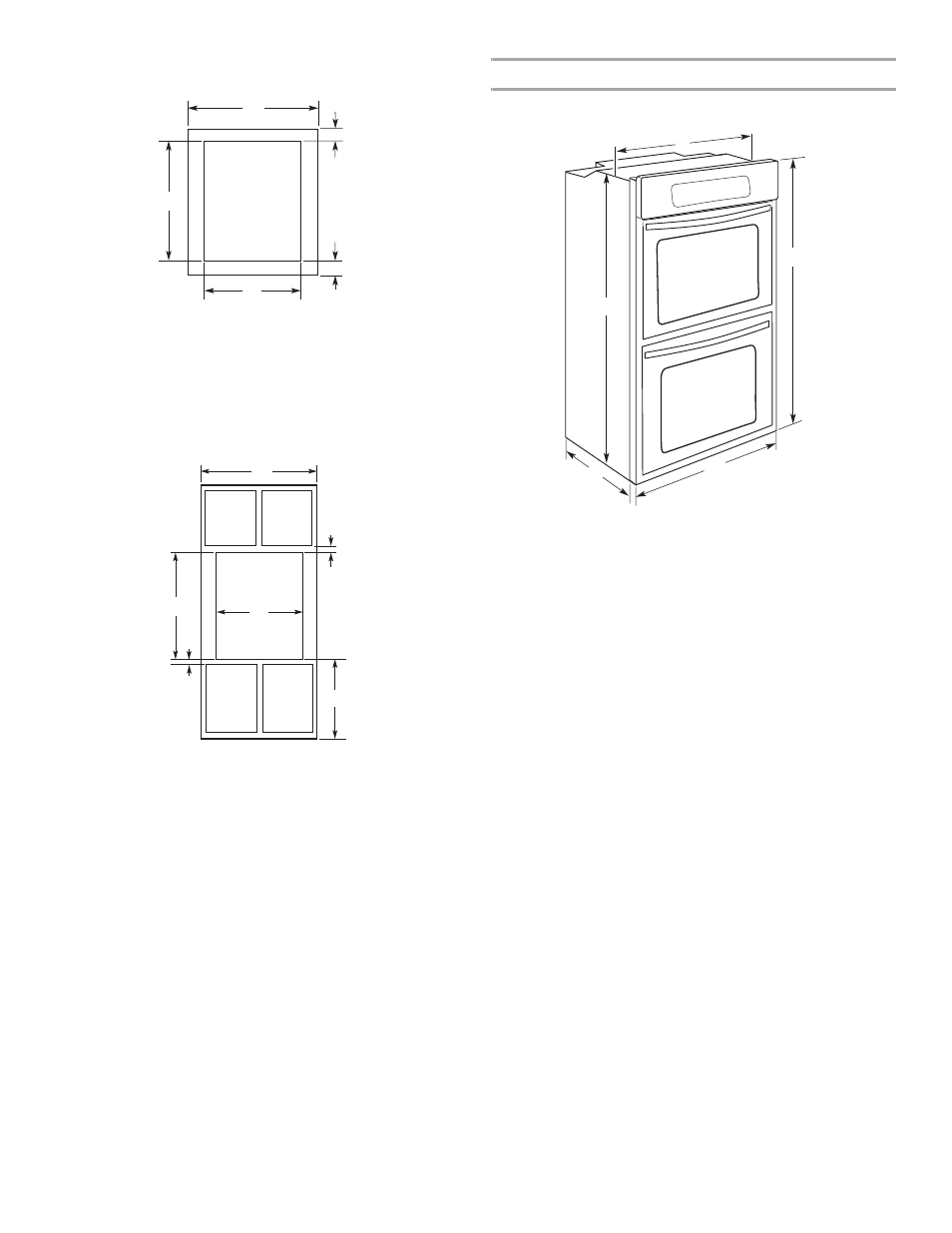

30" (76.2 cm) Single Oven Undercounter (with cooktop
installed above)
Single Oven Installed in Cabinet
Product Dimensions - Double Oven
27" (68.6 cm) and 30" (76.2 cm) Ovens
A. 30" (76.2 cm) min. cabinet width
B. Electric cooktop 1 ⁵⁄₈ " (4.1 cm); Gas cooktop 3 ³⁄₈ " (8.6 cm) min.
top of cutout to underside of countertop
C. Electric cooktop 5" (12.7 cm); Gas cooktop 3¼" (8.3 cm)
bottom of cutout to floor
D. 28 ¹⁄₂" (72.4 cm) cutout width
E. 27 ⁷⁄₈" (70.8 cm) min. cutout height
27" (68.6 cm) models 30" (76.2 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 4" to 33" (10.2 to 83.8 cm)
bottom of cutout to floor
D. 25 ¹⁄₂" (64.8 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27 ⁷⁄₈" (70.8 cm) min. cutout
height
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 4" to 33" (10.2 to 83.8 cm)
bottom of cutout to floor
D. 28 ¹⁄₂" (72.4 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27 ⁷⁄₈" (70.8 cm) min. cutout
height
A
B
C
D
E
A
B
C
D
E
F
27" (68.6 cm) models 30" (76.2 cm) models
A. 25 ³⁄₈" (64.5 cm) max. recessed
width
B. 50¼" (127.6 cm) max. overall
height
C. 26 ³⁄₄" (67.9 cm) overall width
D. 23½" (59.7 cm) max. recessed
depth
E. 49 ⁵⁄₈" (126.1 cm) recessed
height
A. 28 ³⁄₈" (72.1 cm) max. recessed
width
B. 50¼" (127.6 cm) max. overall
height
C. 29 ³⁄₄" (75.6 cm) overall width
D. 23½" (59.7 cm) max. recessed
depth
E. 49 ⁵⁄₈" (126.1 cm) recessed
height
A
B
D
E
C
