230 V∼∼ 50 Hz
Total energy consumption
:
TV222.....6,4 kW
TV224.....6,3 kW
TV282.....6,9 kW
Installing your hob in complete safety

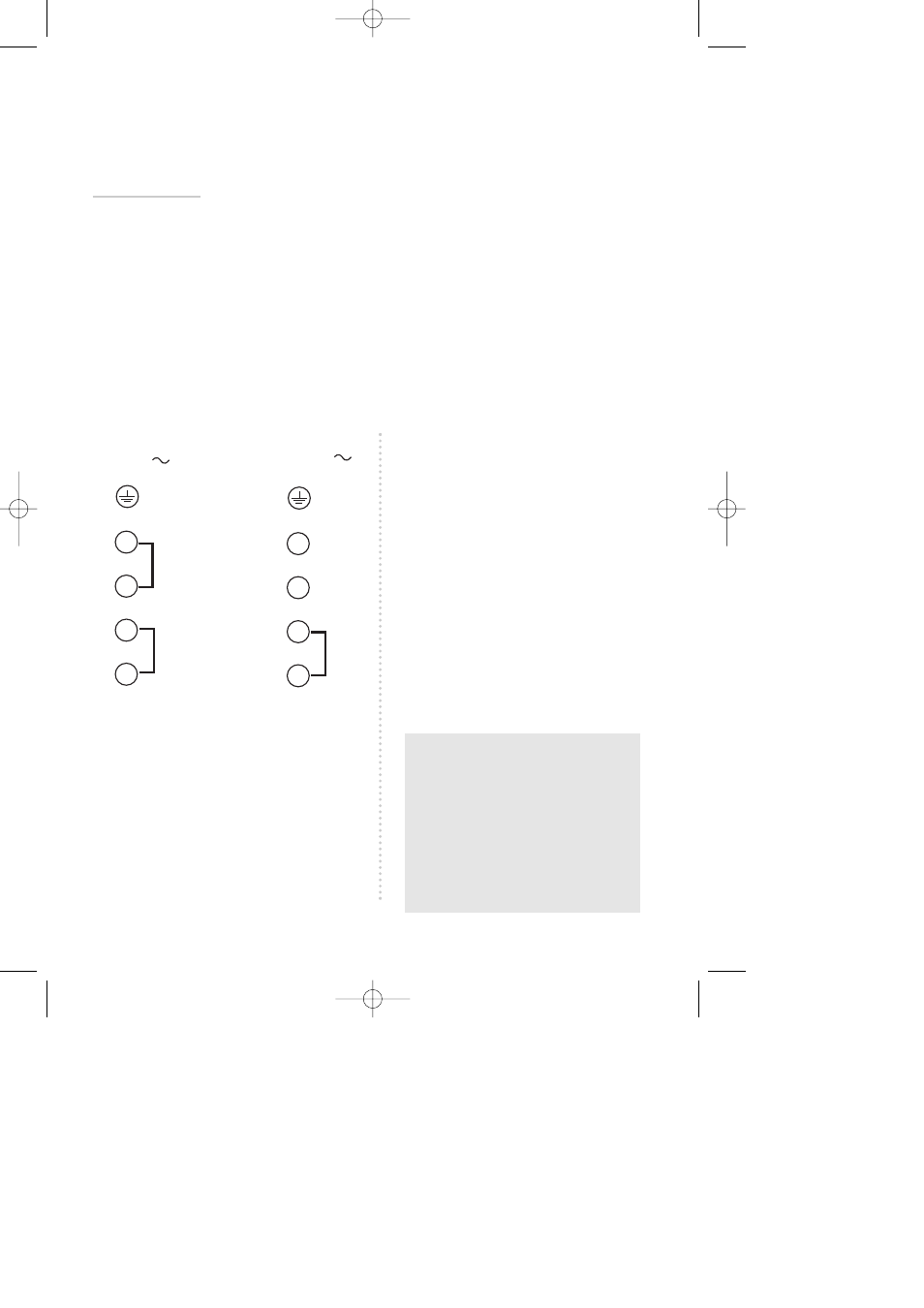

Connection
You must use a 32
Amp fuse on your ins-
tallation You must use a 16
Amp fuse on your ins-
tallation
1
2
3
4
L1
L2
N
1
2
3
4
L1
N
230V
400v 2N
Your hob must be connected to the mains with:
- A H05RRF type cable with three 2.5 mm² conduc-
tors or five 1.5 mm² conductors (including a yellow /
green earth wire)
- A plug that complies to CEI 83
recommendations or an all-pole circuit breaker with
contacts that open by at least 3 mm.
If the cable is damaged, it must be replaced by the manufacturers, their After Sales Service or another
similarly qualified person for avoiding any possible risk of accident.
When the power is switched on, or after a long power failure, a light
code appears on the control panel. This disappears automatically after
about 30 seconds or as soon as any touch control is touched on the
panel. This is normal, as the display is for use by the after-sales service when required. The user must not
take this into account under any circumstances.If the unit has a 3 phase 400 V2N connection, and is not
working correctly, check that the neutral wire is correctly connected. This precaution should also be taken
for all your other electronic apparatus.
