4

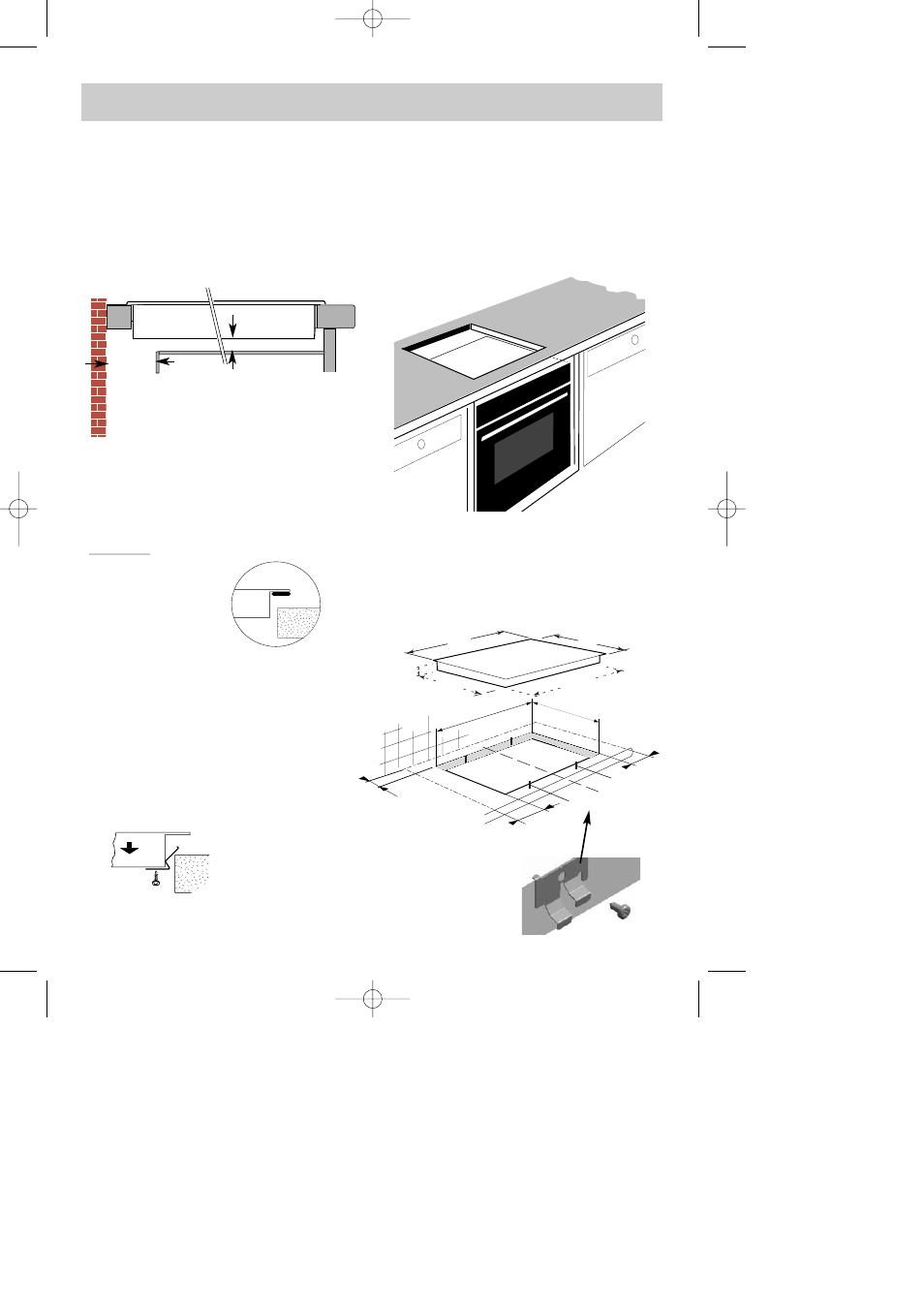

Installing your hob in complete safety
;;;
;;;
The hob can be fitted directly into the worktop
above an oven placed in its upper position
(Minimum distance 10 mm).
Above a cupboard Above an oven
According to the layout of your kitchen, you should install your hob:
C
hoice of installation
Fitting
vide
sanitaire AVANT MEUBLE
1 cm mini
4 cm
Screw the clips into
position as shown
below
4 mini
56
49
4 mini
4 mini
21,6
21,6
58
51
48,8
55,5
4,1
dimensions in cm
A seal exists for preventing any humidity getting under the
hob.
-Stick the seal under the rim of the hob and lower the hob into
position on the worktop.
-This seal is supplied in the sachet; stick it in place beneath the
hob.
The unit must be installed so that the mains plug
is easily accessible.
fix the clips onto
the hob
Depending on the clip model provided in the sachet:
CUPBOARD FRONT Gap
