GRAPHIC SWITCHER II™
PAGE 7
Chapter 3 : TECHNICAL DESCRIPTION

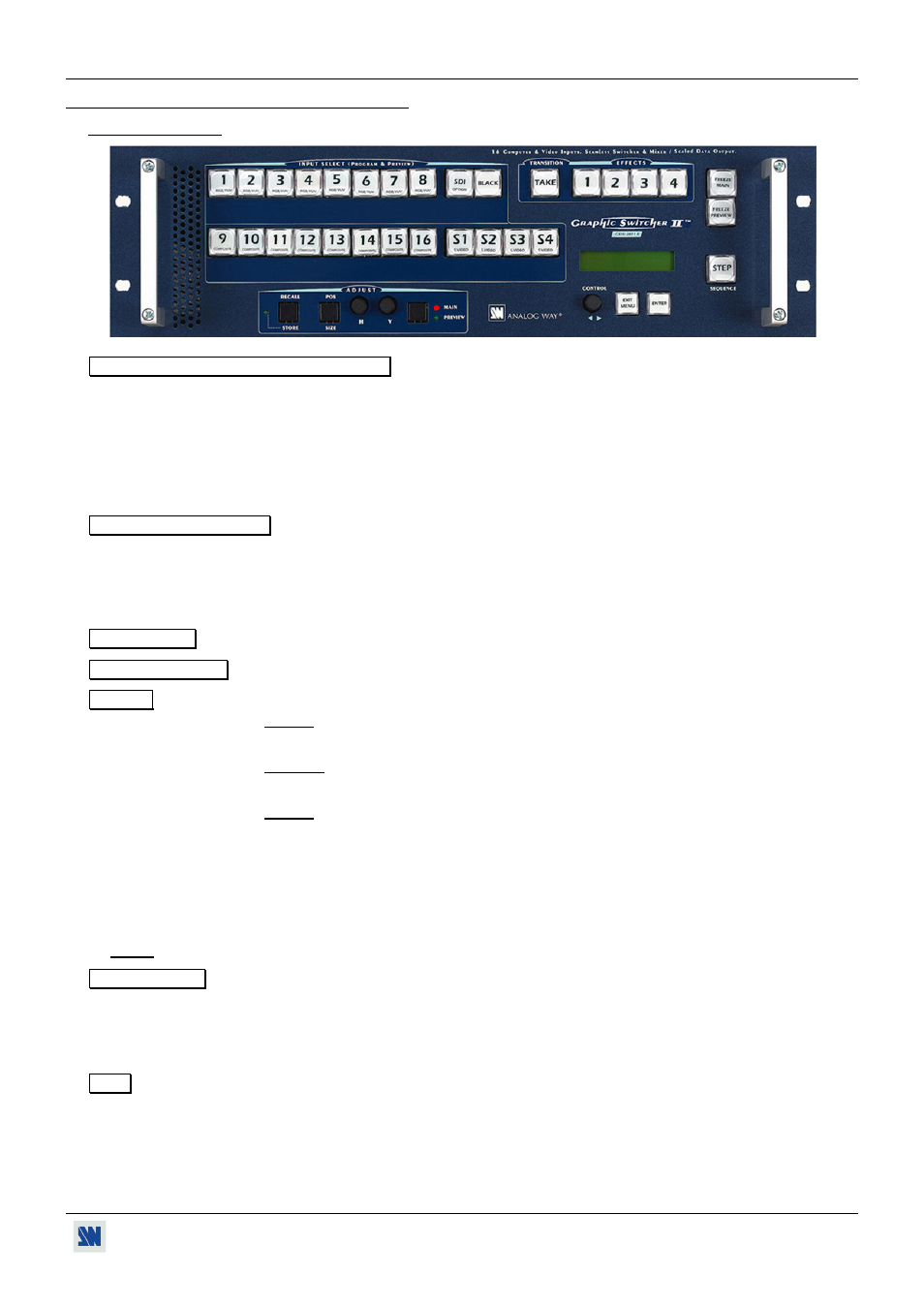

3-1. FRONT PANEL
INPUT SELECT (PROGRAM & PREVIEW)
1 to 8 : 8 RGB/YUV input selection keys.
9 to 16 : 8 Composite Video input selection keys.
S1 to S4 : 4 S.VIDEO (Y/C) input selection keys.
SDI : Optional SDI input selection key.
BLACK : BLACK screen selection key.
TRANSITION - EFFECTS
TAKE : Allows to switch the pre-selected input (blinking key) on the MAIN output with the pre-
selected EFFECT (EFFECT KEYS).
1, 2, 3, 4 : Four EFFECT keys. Each of those keys can store one of the effects available in the LCD effect
menu.
FREEZE MAIN Allows to FREEZE the MAIN output image (active when the key is ON).
FREEZE PREVIEW Allows to FREEZE the PREVIEW output image (active when the key is ON).
ADJUST
RECALL / STORE : STORE (a long push, LED = ON): allows to store for each input, the image adjustments
(position, size).
RECALL (a short push on the button): allows to recall the stored image settings for the
selected input.
NOTE: The GRAPHIC SWITCHER II ™ has 40 NON-volatile image setting memories.
POS / SIZE : Position or Size mode selection. (Acts on H & V buttons).
H : Horizontal image control (position or size).
V : Vertical image control (position or size).
MAIN & PREVIEW : Output selection for the adjust functions.
NOTE: The adjust functions are active on the output indicated by the turned ON LED's (MAIN and/or PREVIEW).
LCD WINDOWS
CONTROL  Allows to select items in the LCD menu.
EXIT / MENU : Allows to exit from a LCD menu.
ENTER : Allows to validate the selected item.
STEP Allows to directly step through a programmed switching sequence.
(SEQUENCE)
