Chapter 5 : OPERATING MODE (continued) GRAPHIC SWITCHER II™
PAGE 14

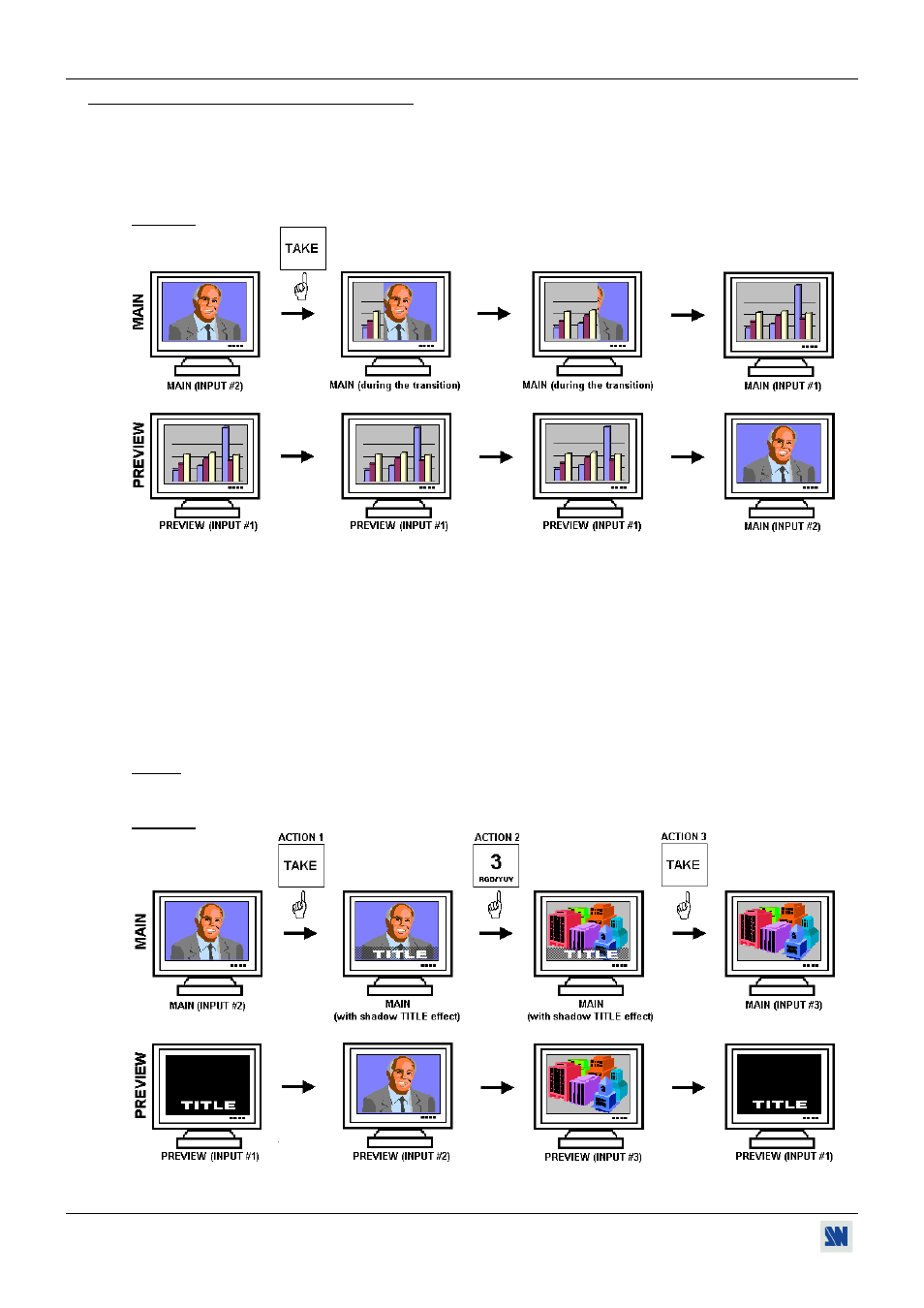

5-6. EXAMPLES OF TRANSITIONS & EFFECTS
c WIPE TRANSITION:
• Assign a WIPE to one of the EFFECTS keys: Press one EFFECTS key, select a WIPE (for example: hor wipe >
left to right) then select the duration.
• Press the TAKE key to activate the transition: the PREVIEW image appears onto the MAIN display with a wipe
transition.
Example:
d TITLE EFFECT (OR SHADOW TITLE):
The TITLE effect allows to display a text onto the MAIN image. For a better readability you also can display a
shadow bar onto your text.
• Create the text to displayed with the computer connected to the GSW2811R thanks to a drawing software like
Power Point (text in white onto a black background).
• Display on the MAIN output the source to titling (INPUT #2 in the example below), then pre-select the source
used for create the text: the image appears on the PREVIEW output (INPUT #1 in the example below).
• Assign the TITLE effect to one of the EFFECTS keys: Press one EFFECTS key, select title or shadow title, then
select the duration.
• Press the TAKE key to activate the effect (ACTION 1): the text is now displayed onto the image of the MAIN
output.
NOTE: With the ADD-ON-2 upgrade, you can change the background image (PREVIEW image) by selecting
another input (ACTION 2): the transition operates with a fading to black. To remove the TITLE effect,
press the TAKE key (ACTION 3).
Example:
