12
49-5000760 Rev. 0
INST
ALLA
TION INSTRUCTIONS
Installation Instructions

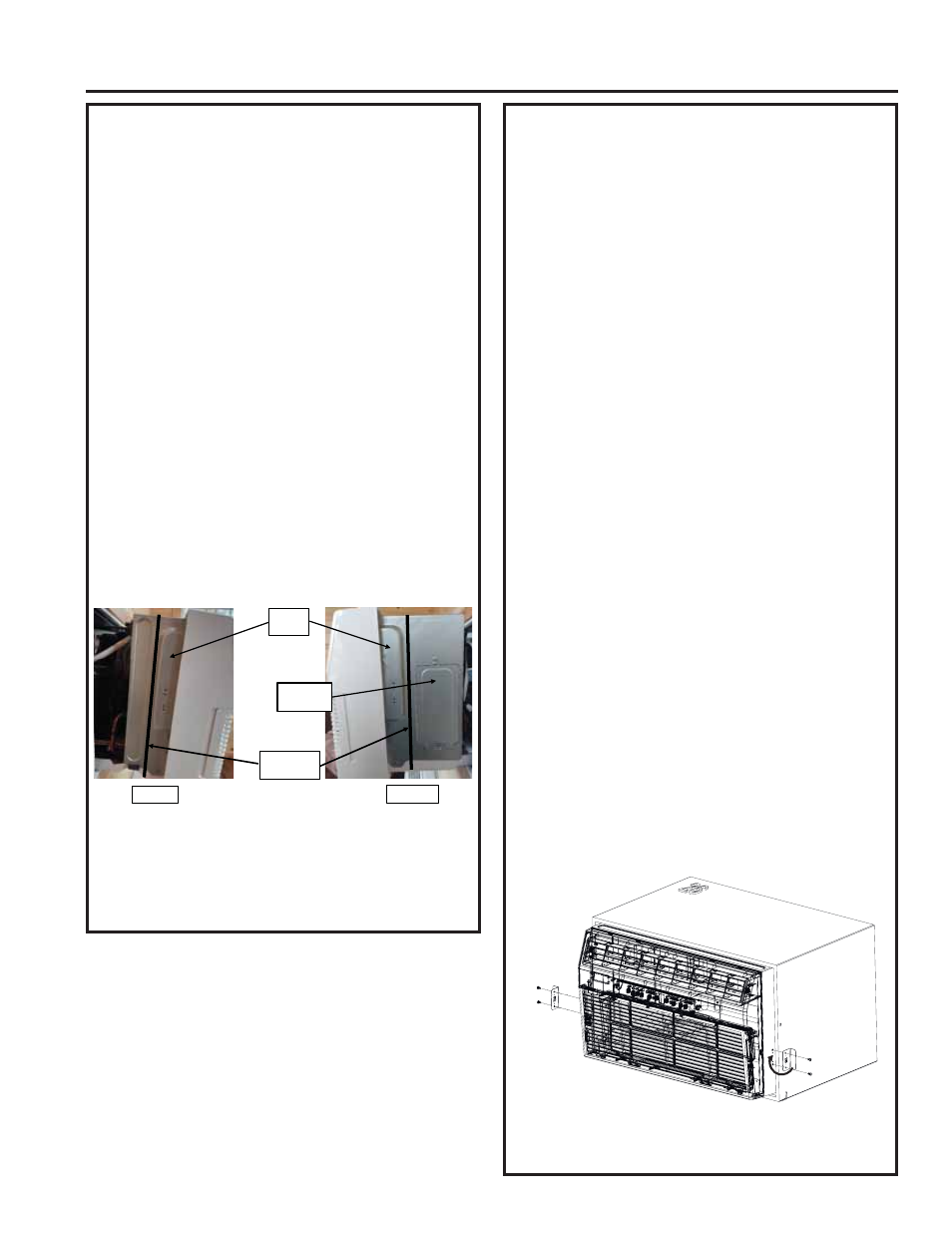

Weather Seal Strips Installation
Ŷ7RLPSURYHVHDOLQJRQQRQ*(:DOO6OHHYHVRU
older wall sleeves that have damaged or missing
gaskets, we have provided two foam pads with
adhesive that can be installed on the sides of the
chassis per the below instructions.
Note: These gaskets may not be necessary with a
new RAB26A sleeve install.
1. Remove all packaging and packing material from
the unit.
2. Put the chassis on a table or install it
DSSUR[LPDWHO\ôRIWKHZD\LQWRWKHVOHHYH
3. Locate the “bump” or raised area in the metal on
each side of the unit right behind the front cover.
The foam strip should be located right behind the
raised area.
4. Wipe each side with a cloth to make sure the area
is clean.
5. Peel the backing off one piece of foam and starting
at the top corner of side, adhere it from top to
bottom just behind the bump on the flat surface.
6. Repeat on right side ensuring you do not put the
foam strip over the removable cover on the right
side.
7. When sliding the unit into the sleeve gently
compress the pads to help it move behind the
flange of the sleeve.
8. Be cautious of the foam pads when removing the
unit from the sleeve as well.
Security Brackets Installation
(It is important to install these brackets
to prevent the chassis from being
pushed into the room from the outside.)
Ŷ The brackets must be installed so the flanges are
hooked behind the inside flanges of the wall sleeve.
8VLQJWKHVFUHZVSURYLGHGDWWDFKWKHEUDFNHWVRQ
the sides of the chassis.
To install the security bracket without fully removing
WKHIURQWJULOOH
1. Grasp the front cover louvers on both sides at the
recess and pull forward.
2. Remove the filter by pulling forward and out.
3. Remove the two Phillips head screws located in
the upper corners of the grille louver opening. Do
not discard screws.
4. Grasp the left and right rear edges of the front
cover about 6” from the top and pull outward to
release the tabs on the inside of the grille from
the slots in each side of the metal chassis cover.
When released pull out both bottom corners of the
IURQWJULOOHDERXW´WRH[SRVHWKHWZRVFUHZKROHV
on the lower area of the metal chassis cover.
5. Locate the 2 metal brackets stamped 26” that were
included with the air conditioner. Hook the short
flange of the bracket behind the sleeve inside edge
and rotate it so the long side can be pressed flat
against the metal chassis cover. Adjust so the
bracket can be secured to the metal chassis cover
by 2 screws included with the bracket. Only one
bracket will be needed and can be installed on
either side of the chassis.
6. To reinstall the front grille, push the lower corners
to toward the sleeve until the side tabs click into
the mating slots. Reinstall the two screws removed
earlier and replace the filter and louvers.
Hook inside
sleeve edge
and secure
to unit
Hook inside
sleeve edge
and secure
to unit
Raised
Area
Locate foam
pad here
Removable
cover
Left Side Right Side
