It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.
Installation Steps:
Window bracket panel adapter, hose and hose connector are pre-assembled inside the package. 1.
2. Adjust the window bracket as per width or height of your window and insert the plastic pin to
fix at the desired position. There is a hole where the hose will be inserted later. Make sure this
hole is not blocked.
Hole for Window Bracket
Panel Adapter and Hose
26.6", 36.2" to 52"
(67.5 cm, 92 cm to 132 cm)
Plastic Pin
1 3
x1 x1 x1

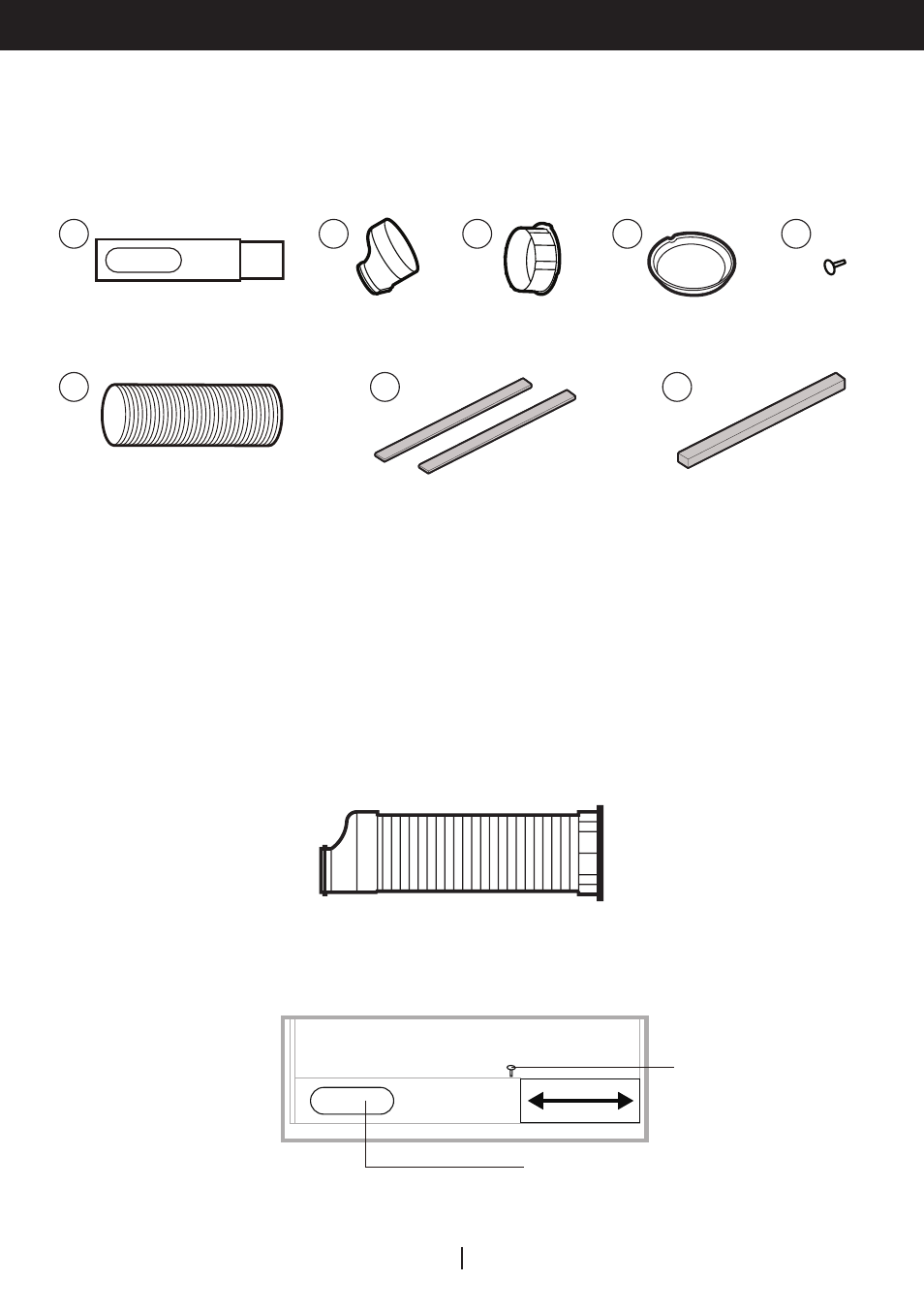

Installation Kit:
1. Window Bracket Kit (1 Set) 5. Plastic Pin (2 Pieces)
2. Window Bracket Panel Adapter (1 Piece) 6. Hose (1 Piece)
3. Hose Connector (1 Piece) 7. Foam Seal (adhesive) (2 Pieces)
4. Drain Pan (1 Piece) 8. Foam Seal (non-adhesive) (1 Piece)
2 4 5
x1 x2
6
x1
7
x2 x1
