1
2
3
4
5
Back of
Microwave
Blower Plate screw
Blower motor screw
B lower Motor
Part“A”
Blower Motor screw
Adaptor
Back of
Microwave
Guide
Guide
Blower Motor screw
Blower Plate
Adaptor
Microwave
Back of
Using the top cabinet template
There are instructions on the top cabinet template
that detail how it should be used.
Tape the top cabinet template to the under side of
the cabinet where the microwave will be installed.
Drill holes for the top support screws, a hole large
enough for the power cord to fi t through and a
cutout large enough for the exhaust adapter.

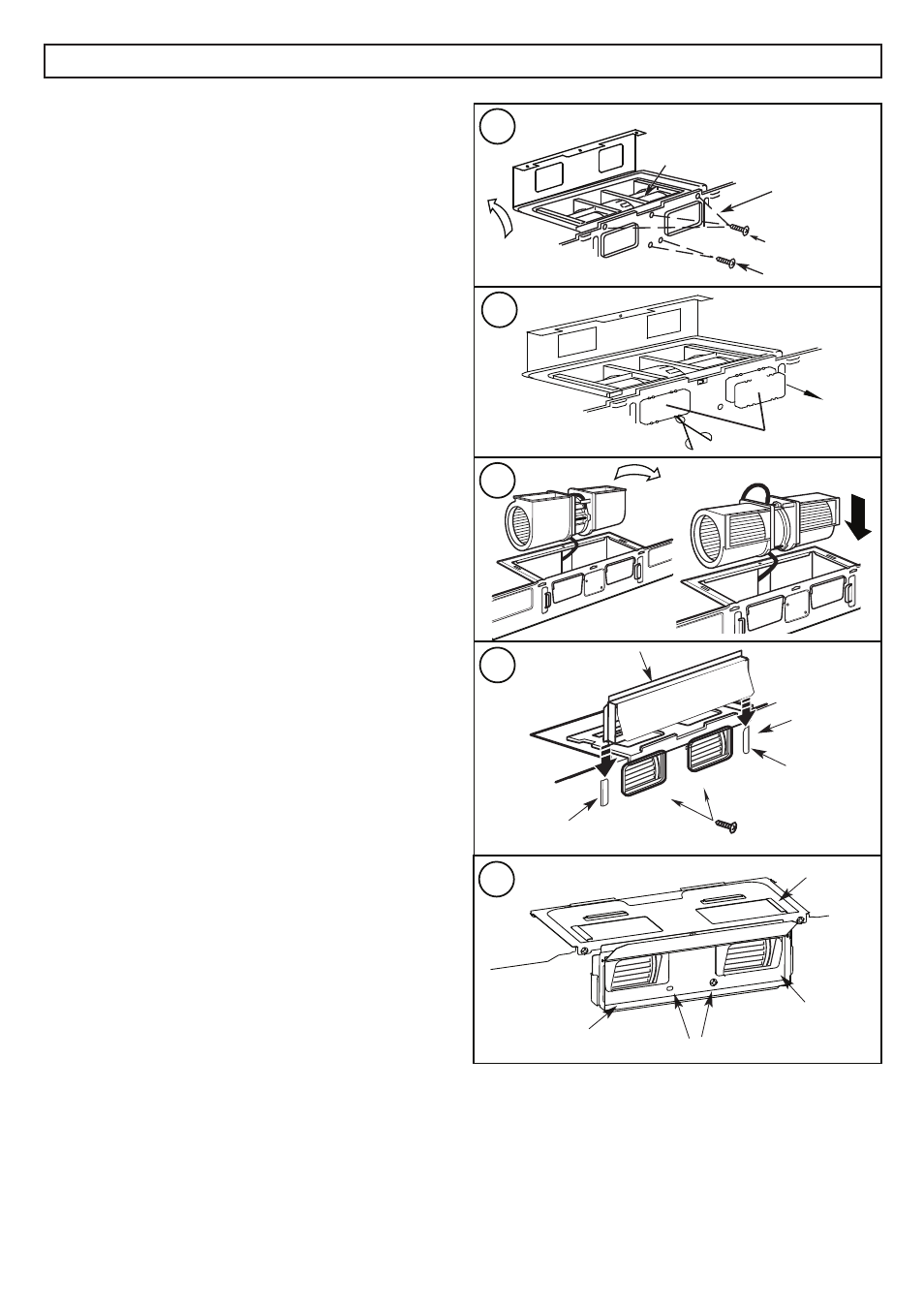

Adapting blower for back exhaust
1. Remove the screws that secure the blower motor.
Lift up the blower plate.
2. Remove part A with tin snips or scissors.
3. Pull out the blower unit. Be careful not to stretch
the wires and make sure the wires do not get
pinched. Rotate the blower so that it faces
toward the back and replace it in the appliance.
The blower unit exhaust openings should
match the exhaust openings on the rear of the
microwave.
4. Close the blower plate. Attach the exhaust
adapter to the back of the microwave by sliding
it into the guides at the top. Push in securely
until the screw holes are visible. Ensure that the
damper hinge is installed so that it is at the top
and the damper swings freely.
5. Secure the blower motor with screws. Secure the
blower plate with screws.
INSTALLATION INSTRUCTIONS - OUTSIDE BACK EXHAUST
16
