KITCHENAID 1.1 cu. ft. Over-The-Range Microwave Oven Dimension Guide Manuel d'utilisation
Dimension guide, Microwave oven
DIMENSION GUIDE
1 of 15
IMPORTANT:
Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information.
Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.
MICROWAVE OVEN
W11640273A
PRODUCT DIMENSIONS
MODEL
#
WMMF5930P / YWMMF5930P
MMMF6030P / YMMMF6030P
KMMF330P / YKMMF330P
Unit of Measurement
in
cm
Overall Width (A)
30
76
Overall Height (B)
17
7
/
8
45.4
Height of the door (C)
15
38.2
Depth without door (D)
12
7
/
8
32.7
Depth with door (E)
13
33
Depth with door open 90° (F)
42
3
/
4
108.7
Depth without door with Bump Out Kit (G)
13
11
/
16
~15
7
/
8
34.7~40.3
Depth with door with Bump Out Kit (H)
13
3
/
4
~16
35~40.6
Depth with door open 90° with Bump Out Kit (J)
43
9
/
16
~45
3
/
4
110.7~116.3

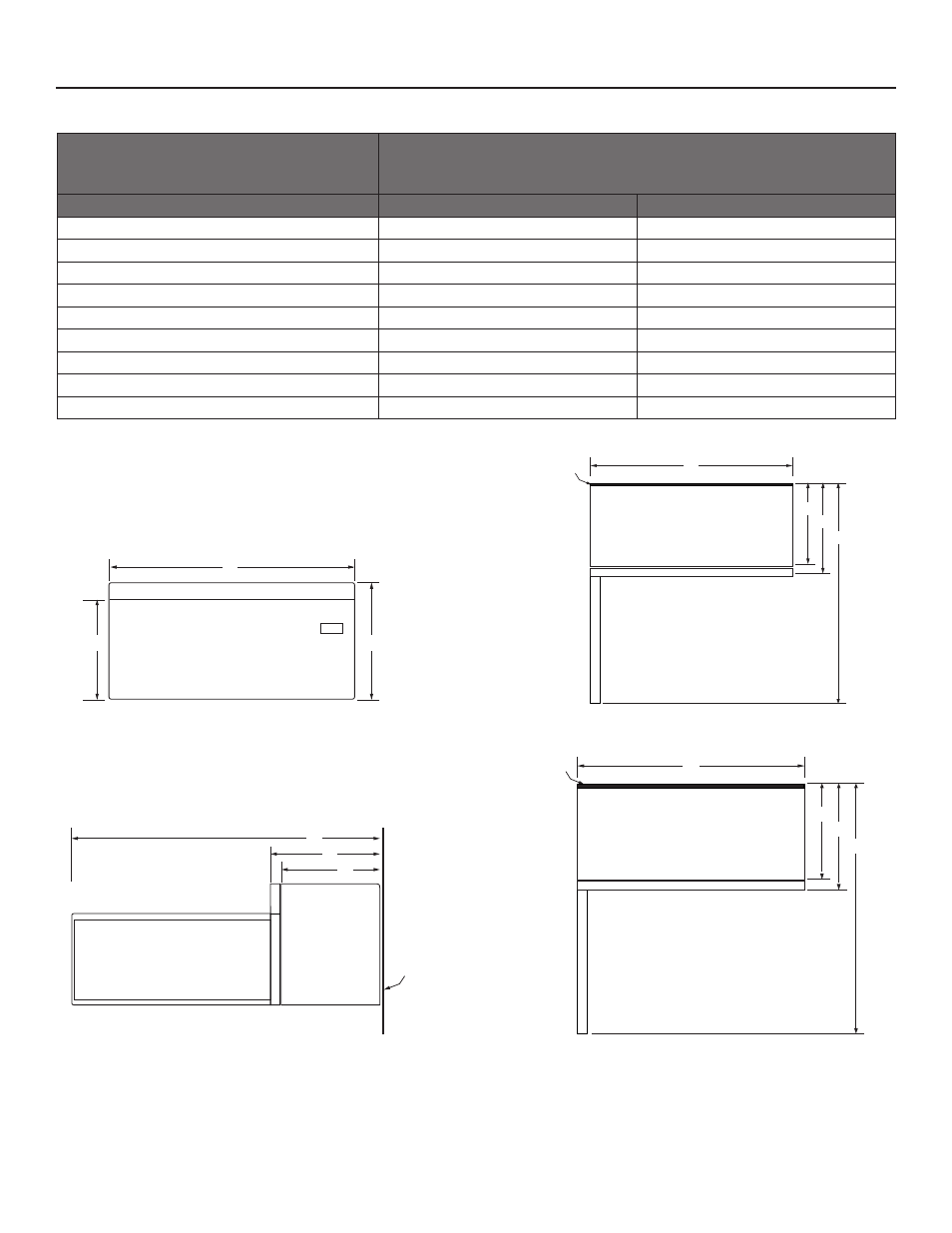

TOP VIEW
SIDE VIEW
TOP VIEW WITH BUMP OUT KIT
FRONT VIEW
A
D
E
F
Mounting
Plate
Back of
Cabinet
F
E
D
A
G
H
J
Bump Out
Kit
A
B
C
