10 11 Quick Start Guide DN9630

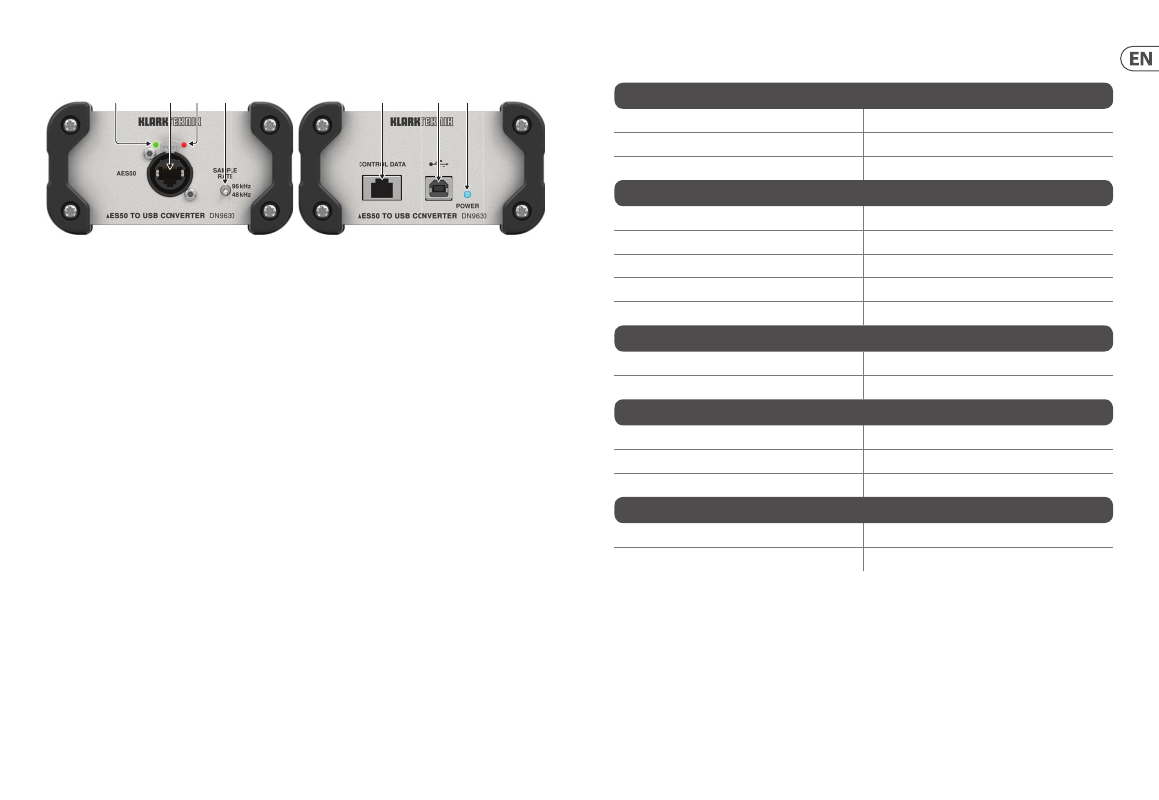

3. Front Panel
1. Green AES50 status LED indicates AES50 synchronisation
2. AES50 connection compatible with Neutrik etherCON.
3. Red AES50 status LED indicates an error with the port connection when lit.
4. Sample Rate switch selects between 96 kHz and 48 kHz sample rates.
5. Control Data for potential future expansion
6. USB input transfers audio data between computer and the DN9630. The USB connection
also supplies power to the unit.
7. Power LED lights to indicate the unit is powered on.
4. Operation
Before applying power to the DN9630 set the sample rate to match that of the AES50 enabled
device it will be connected to. Then plug in the USB cable. The device will appear like a normal
soundcard in your audio application and you can confi gure according to the applications
instructions. Connect the AES50 and wait for it to syncronise.
Once this is done the DN9630 is ready to be used for recording or playback.
(1) (2) (3) (4) (5) (6) (7)
5. Specifi cations
Connectors
AES50 etherCON x 1
USB USB 2.0 x 1
Control Data RJ45 x 1
Input/Output
Channels of input/output @ 48 kHz 48 bidirectional
Channels of input/output @ 96 kHz 24 bidirectional
Sample rates 48 kHz / 96 kHz, selectable
Sample word length 24-bit
Clock synchronization External
Power
Connection Remotely powered via USB 2.0
Consumption <2.5 W
Dimensions
Height 64 mm (2.5")
Width 118 mm (4.6")
Depth 152 mm (6.0")
Weight
Net 0.5 kg (1.1 lbs)
Shipping 0.55 kg (1.2 lbs)
