05 CONNECTING TO A TV
Connecting the TV that supports HDMI ARC (Audio Return Channel)
CAUTION
• When using an HDMI to Micro HDMI cable, take caution not to break the cable terminal.
• When the HDMI cable is connected, the HDMI signal is received first.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. Otherwise, the TV sound may not
be output.
• The recommended cable is High Speed HDMI Cable with Ethernet .
HDMI IN
(ARC)
SERVICE
HDMI
(ARC)
Connect to the HDMI IN (ARC)
or (eARC) port of your TV.
Connect to the HDMI (ARC)
port of the Soundbar main
unit.
HDMI to Micro
HDMI Cable
Rear of the Soundbar
Top of the Soundbar
LED indicator
White On → Off
“ TV ARC ”

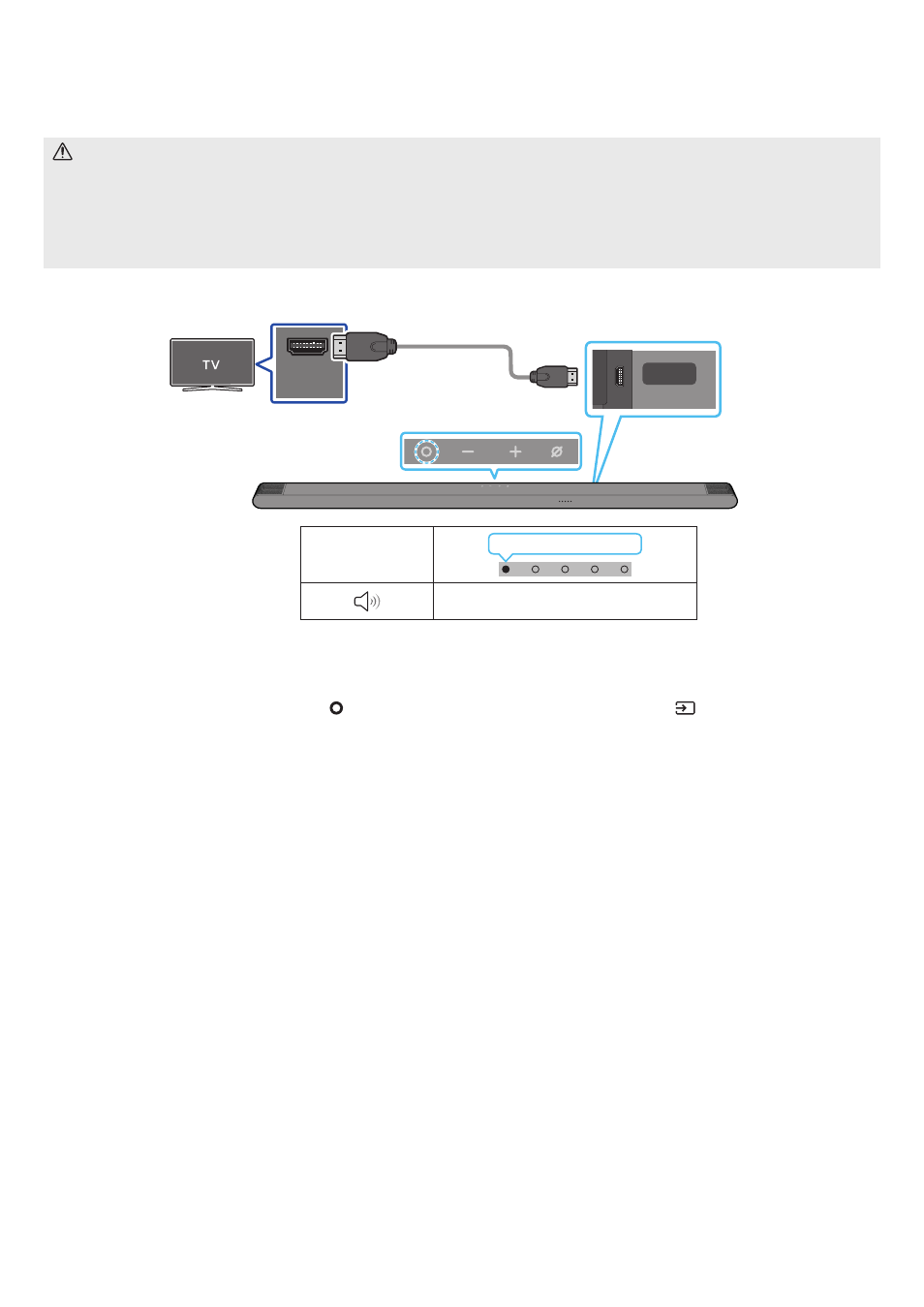

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.
3. Your TV will output sound via the Soundbar.
• When the TV sound is not output, press the
(Multi Function) button at the top of the Soundbar or the (Source) button on the remote
control to select the “ TV ARC ” mode.
• When the sound is not output, check the HDMI cable connection again.
• Use the volume buttons on the TV’s remote control to change the volume on the Soundbar.
NOTE
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 0.55 inches
(14 mm).
• This function is not available if the HDMI cable does not support ARC.
• When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that
you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may
use different words for Dolby Digital and PCM depending on the TV manufacturer.)
