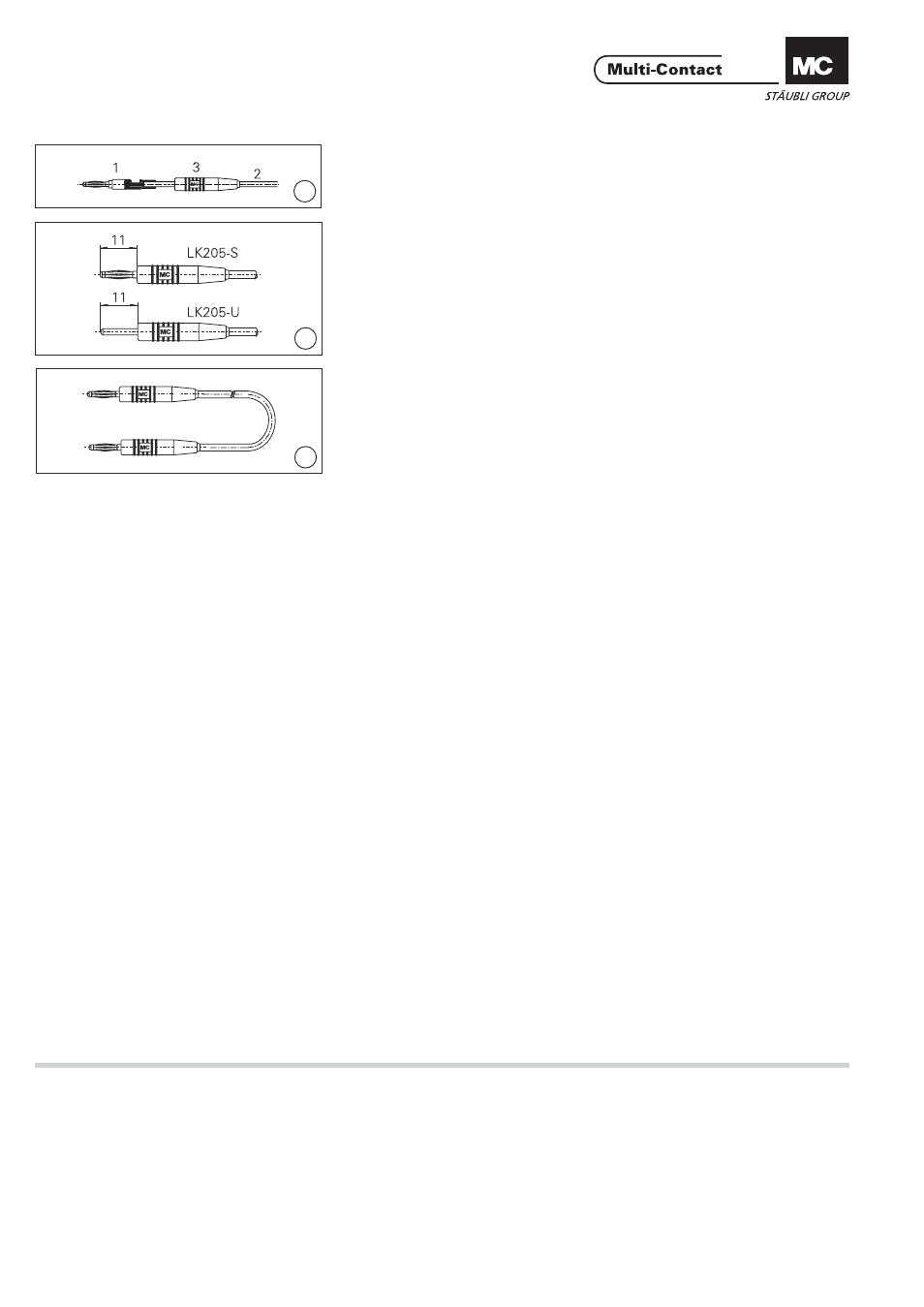

(ill. 8)
Monter le capuchon 3 sur la fi che 1
en tirant sur le câble 2 et en poussant
simultanément la fi che 1 jusqu‘au
point d‘arrêt. (ill. 8)
Pull cable 2 through the insulator 3
and at the same time push-in plug 1
to its end position.
(ill. 9)
Vérifi er le montage de la fi che.
(Longueu r de la partie visible de la
fi che: 11mm). (ill. 9)
Check insulator location. The distance
between the insulator and the top of
plug must be 11mm.
(ill. 10)
Le cordon de liaison est prêt à l‘em-
ploi. (ill. 10)
The connecting lead is now ready for
use.
