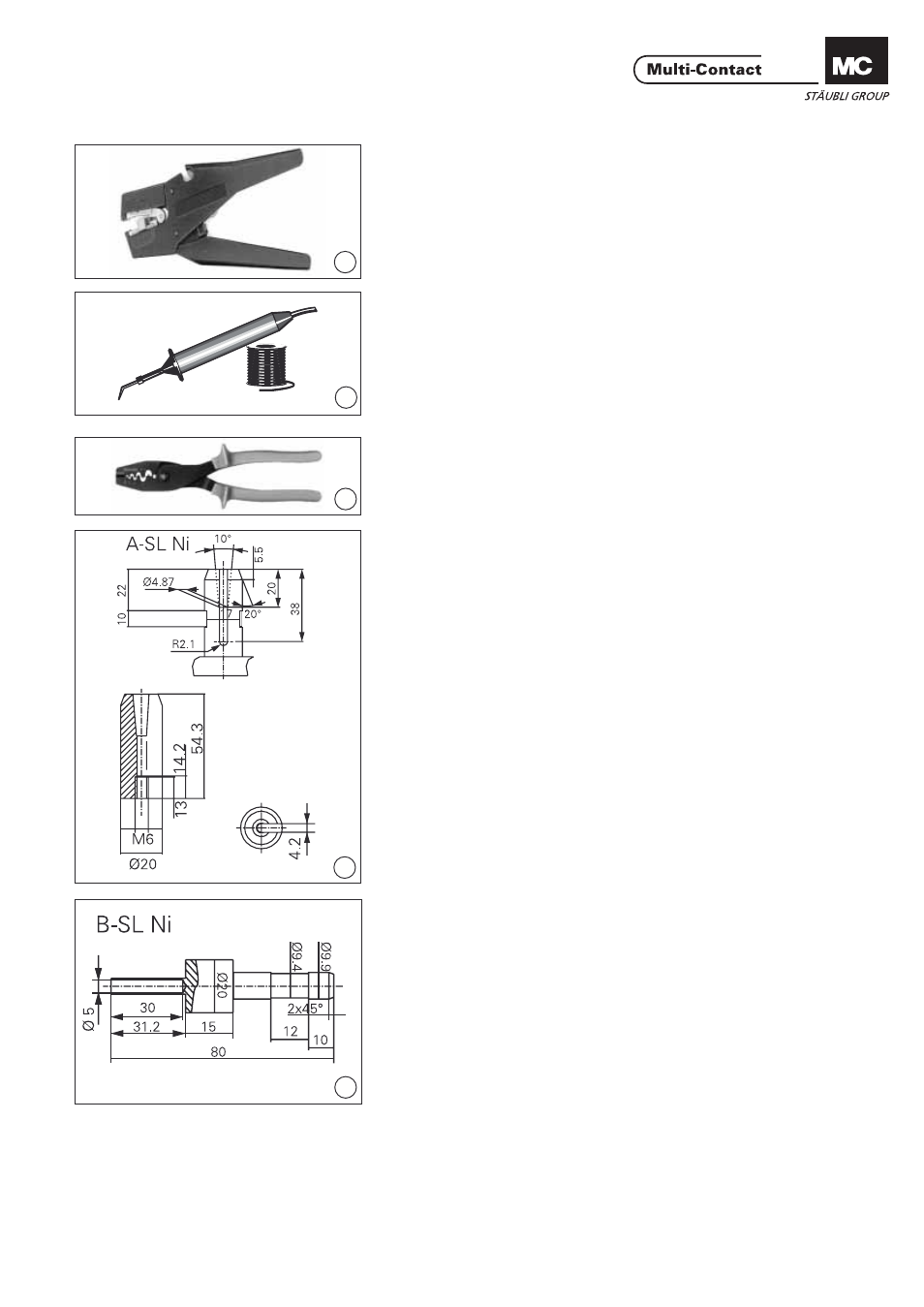

Outillage nécessaire Tools required
(ill.1)
Pince à dénuder „Stripax“
No. de Cde 25.0015 (ill.1)
Cable stripper „Stripax“
Order No. 25.0015
(ill. 2)
- Fer à souder 60 W
- Fil de soudure
p.e. soudure sans plomb Ø
1,5#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source d’approvisionnement:
www.kester-online.de (ill. 2)
- Soldering iron 60 W
- Solder
e.g. leadfree solder Ø 1,5#58/405
(SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source of supply:
www.kester-online.de
(ill. 3)
Pince à sertir p.e. Klauke PZK 3
No. de Cde 25.0018 (ill. 3)
Crimping pliers e.g. Klauke PZK 3
Order No. 25.0018
Proposition d’outillage Suggested tools
(ill. 4)
Outil de montage A-SL Ni.
Matière recommandée: Laiton. (ill. 4)
Auxiliary tool A-SL Ni
Recommended material: Brass.
(ill. 5)
Outil de montage B-SL Ni
Matière recommandée: Acier. (ill. 5)
Auxiliary tool B-SL Ni
Recommended material: Steel.
