FIG.1
ASSEMBLY INSTRUCTIONS
1. Find a clean, level place to begin the assembly of your Billiard Table. The table will be assembled upside down
and then turned over on its legs once the assembly completed. This game table is heavy, and turning it over will
require at least four strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list page.
Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.
3. Place the Leg Cabinet - A (#2), Leg Cabinet - B (#3), Leg Cabinet - C (#4) and Leg Cabinet - D (#5) together.
See FIG.1A.
4. Attach the Top Leg Base (#6) to the Leg Cabinet using four Screws (#12) per Top Leg Base. See FIG.1B.
5. Attach the Bottom Leg Base (#7) to the Leg Cabinet using four Bolts (#17) and four Washers (#14) per Bottom
Leg Base. See FIG.1C.

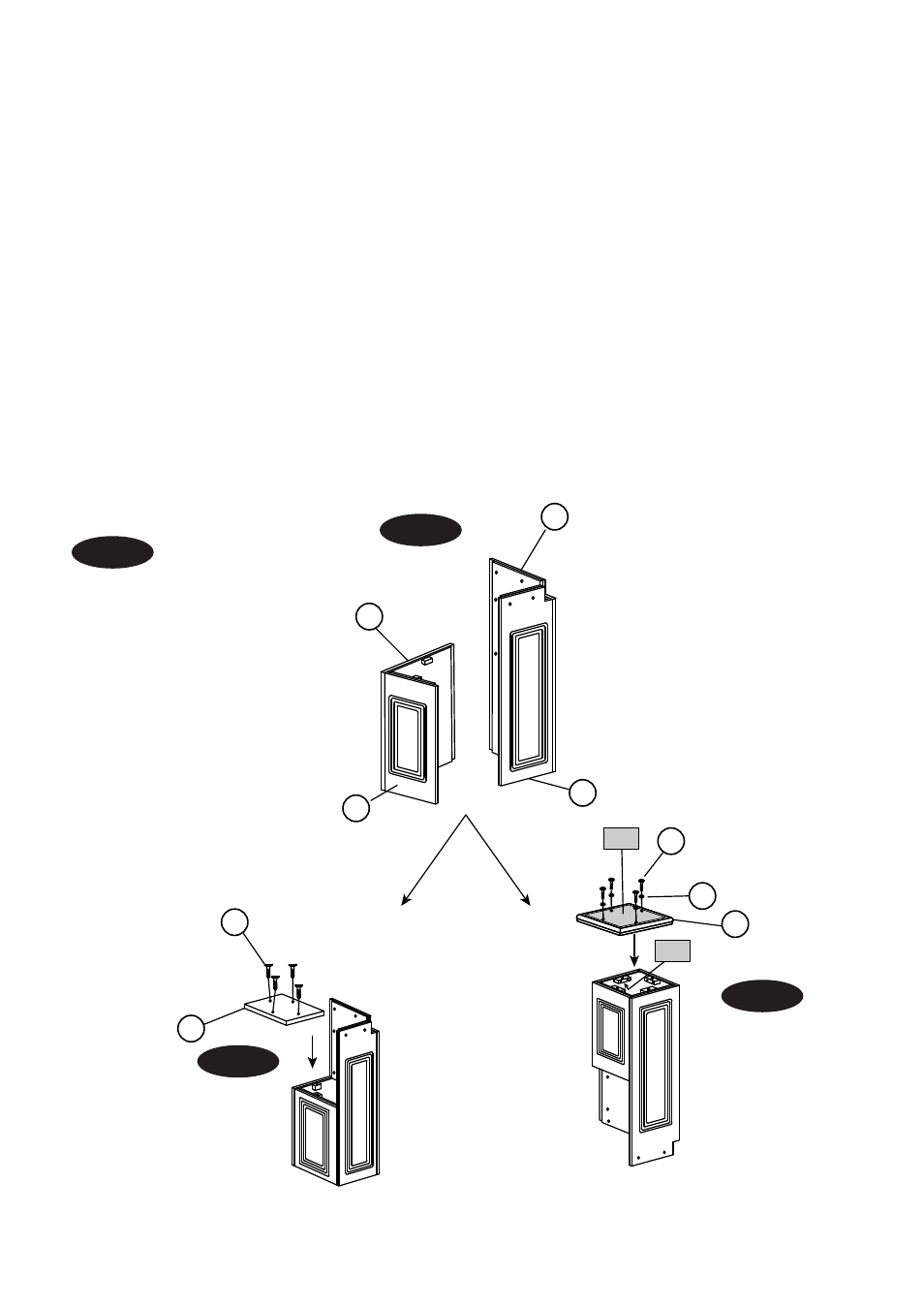

FIG. 1
FIG. 1A
4
2
FIG. 1B
FIG. 1C
3
6
12
14
17
5
7
26
