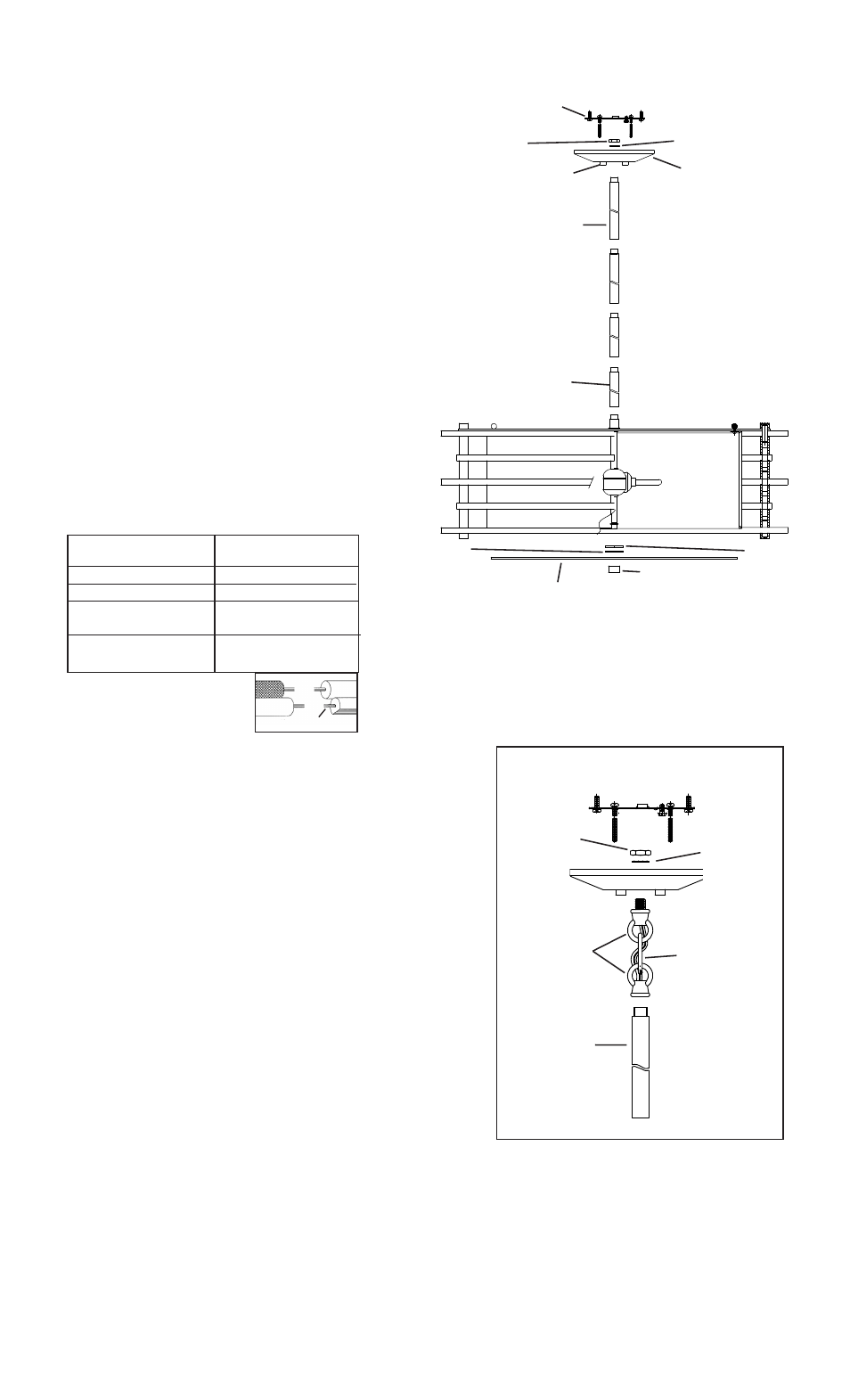

RIGID STEM MOUNT
1) Pass wire through stem and screw stem into coupling on top
of fixture body. IMPORTANT: At least one 6” stem must be
used. NOTE: Thread locking compound must be applied to
all stem threads as noted with symbol (3) to prevent
accidental rotation of fixture during cleaning, relamping, etc.
2) Pass fixture wire through remaining stems and screw stems
together.
3) Screw small threaded pipe into top of last stem.
4) Pass hole in canopy over threaded pipe at end of last stem.
5) Slip lockwasher over end of threaded pipe protruding from
inside canopy. Screw hexnut onto end of threaded pipe.
6) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
7) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
8) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
9) Make wire connections (connectors not provided). Reference
chart below for correct connections and wire accordingly.
10) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
11) Secure fixture to ceiling with threaded balls.
12) Insert recommended bulbs.
13)
Slip flat washer then rubber washer over end of threaded pipe
protruding from bottom of fixture.
14) Pass hole in glass diffuser over end of threaded pipe.
15) Slip remaining rubber washer over end of threaded pipe and
screw finial onto threaded pipe. (DO NOT over tighten.)
LOOP/CHAIN LINK MOUNT
1) Follow steps 1 and 2 from Stem Mount Instructions.
2) Screw loop onto end of last stem.
3) Add chain link to loop and add second loop to chain link.
4) Screw small threaded pipe into end of loop.
5) Pass hole in canopy over threaded pipe at end of loop.
6) Slip lockwasher over end of threaded pipe and screw hexnut
onto threaded pipe.
7) Follow steps 6 - 15 from Stem Mount Instructions.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 10/5/12 IS-42098-CB
LOOP/CHAIN LINK
BOUCLE/MAILLON DE CHAÎNE
RIGID STEM MOUNT
INSTALLATION SUR TIGE CANNELÉE
3
3
3
3
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
CANOPY
CACHE
LOCKWASHER
RONDELLE DE BLOCAGE
STEM
TIGE
HEXNUT
ECROU HEXAGONAL
LOOP
BOUCLE
CHAIN LINK
MAILLON DE
CHAÎNE
STEM
VARILLA
MOUNTING STRAP
PLANCHA PARA MONTAR
THREADED BALL
BOULE FILETÉE
GLASS DIFFUSER
DIFFUSEUR EN VERRE
RUBBER WASHER
RONDELLE EN
CAOUTCHOUC FINIAL
ORNEMENT
LOCKWASHER
RONDELLE DE
BLOCAGE
HEXNUT
ECROU \
HEXAGONAL
6” STEM
TIGE DE 25 CM
3
3
FLAT WASHER
RONDELLE
PLATE
3
