4- Control Panel Overview
(1) Control Panel Functions :
1- TV/VIDEO To select the input signal: TV/VIDEO/S-VIDEO/Component1/Component2/
2- MENU Enter into MENU
3- CH+ TV channel up
4- CH- TV channel down
5- VOL+ Volume up / Right orientation
6- VOL- Volume down / Left orientation
7- POWER Power supply switch
Indicator Light Status
The indicator light is red when the TV is in standby mode. The indicator light is green when you press
the ' ' key

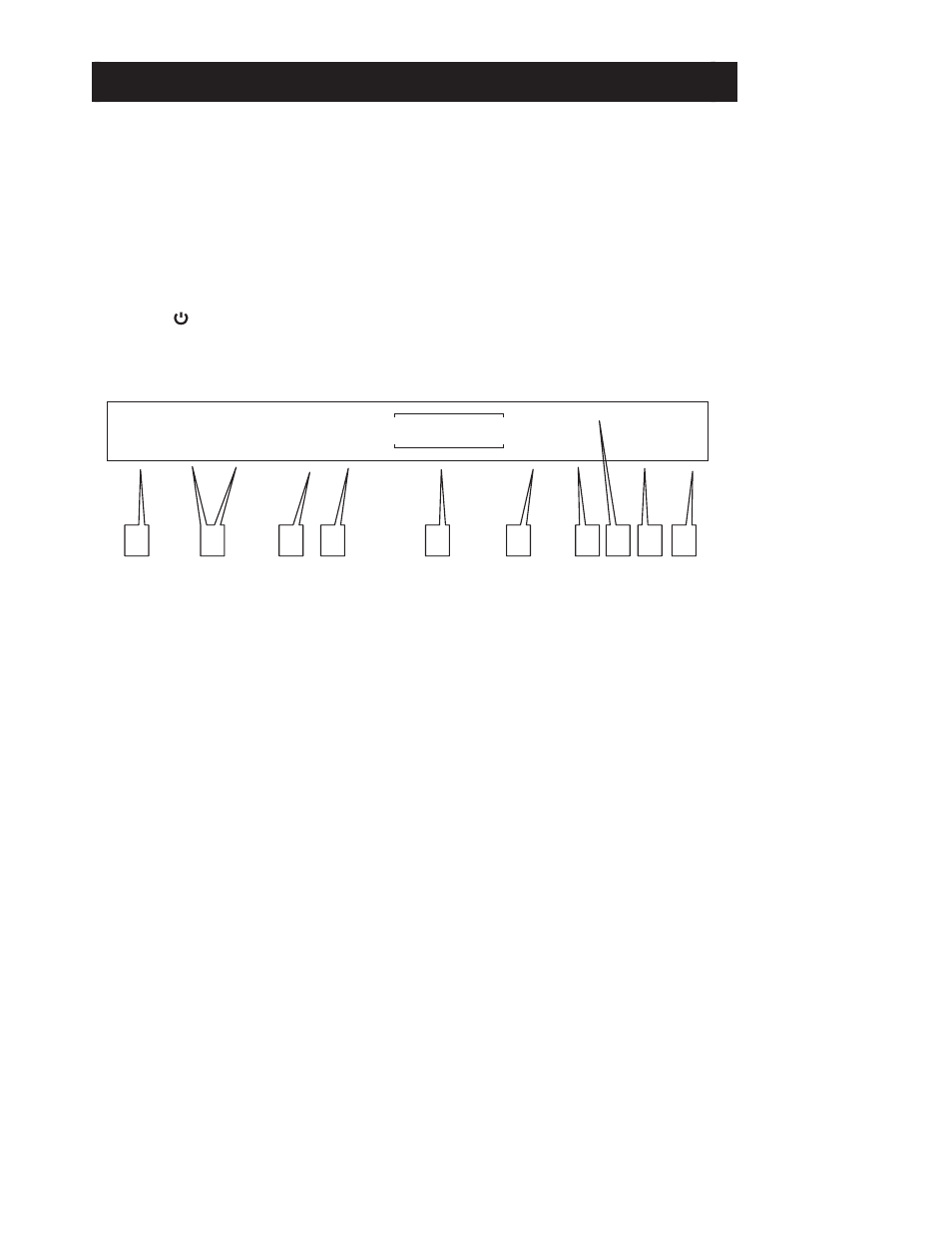

(2) Illustration of Connectors
Connectors descriptions:
Power receptacle AC120V 60Hz
Antenna input, connect antenna connector or aerial interface here to receive cable / aerial signal
Coaxial output
L/R audio inputs (AV/S-VIDEO) from exterior AV devices such as DVD players, Video Cameras etc.
Video input, connect video input from external device here
S-VIDEO input, connect video input from external device here
Component input interface
PC sound card audio input
HDMI input interface
