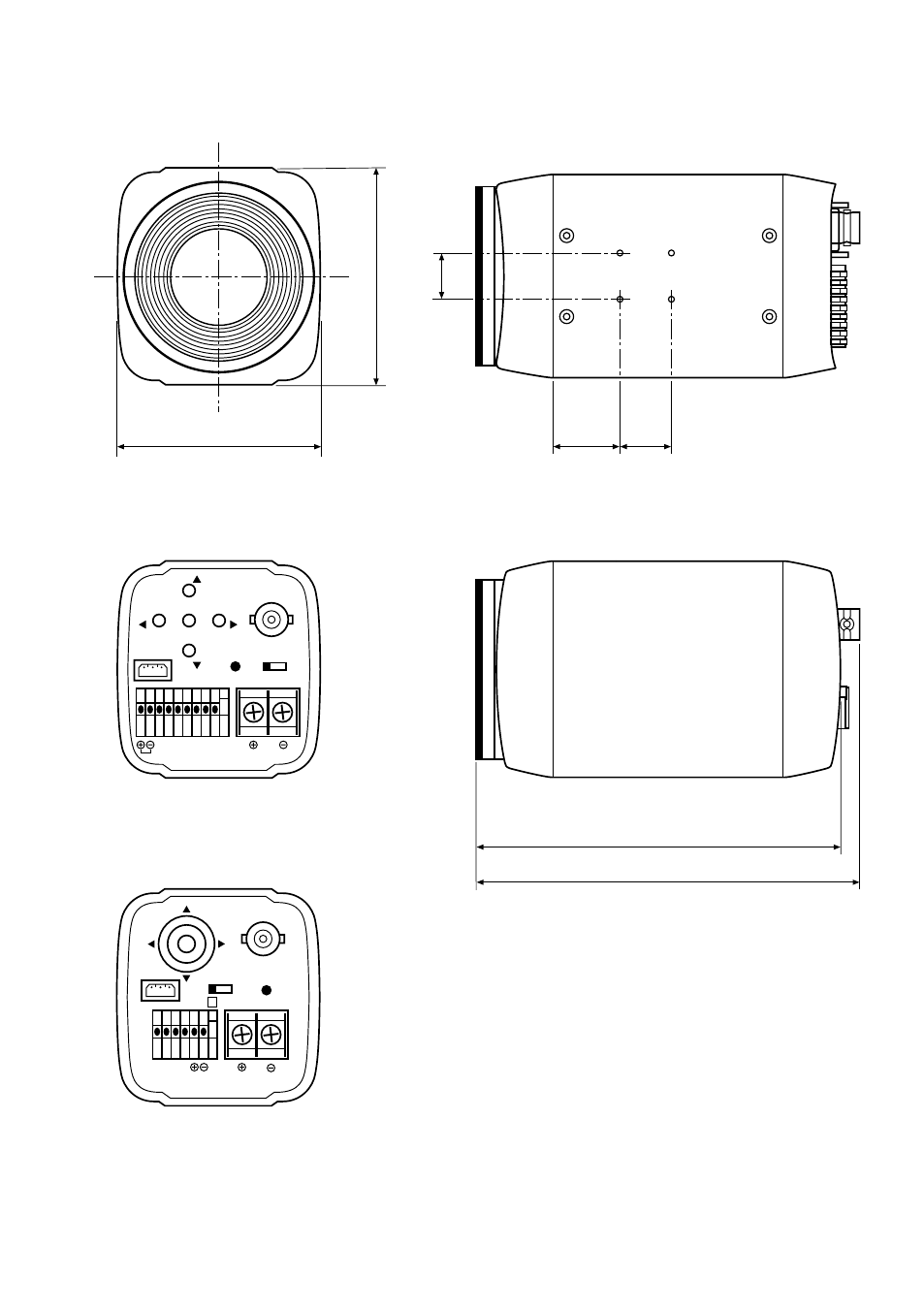

Dimensions: mm
9. Croquis
M O D G Z F C
D D N
RS-485
SET
FAR NEAR
TELE
WIDE
AD KEY POWER
VIDEO OUT
CABLE
DISTANCE
DC12V
64
68
16
14
20
113.3
119.3
M O D G
D N RS-485
1
F N
T
W
AD KEY
POWER
VIDEO OUT
CABLE
DISTANCE
DC12V D
2 3
VKC-1424-36, # 92718 und VKC-1424-22, # 92754
VKC-1424-12, # 92755
