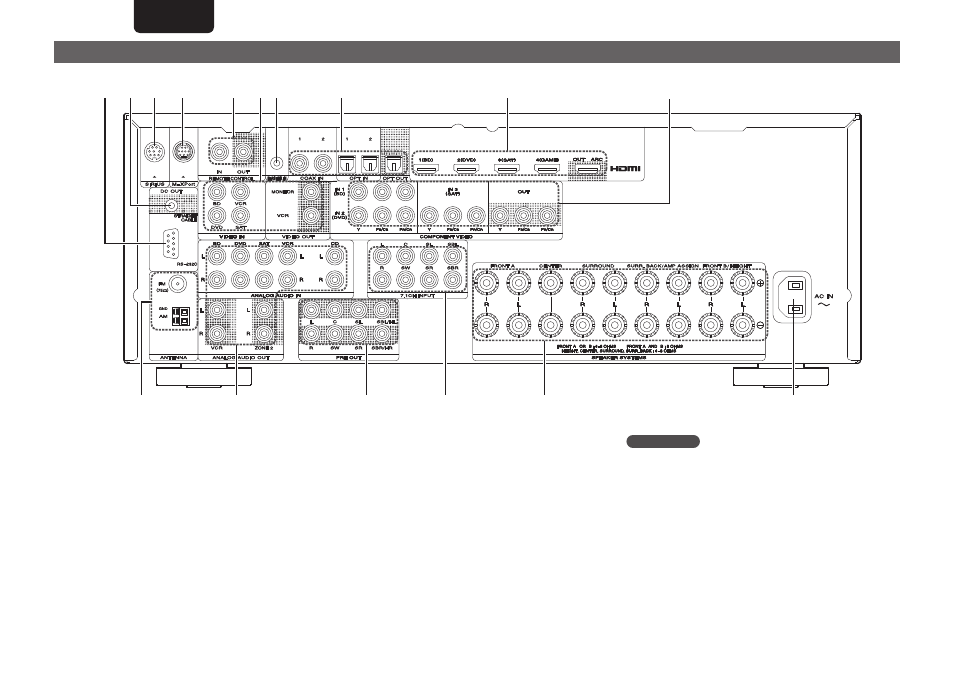

Panneau arrière
Voir la page indiquée entre parenthèses ( ).
q w e r t y
o Q0 Q2 Q1 Q3 Q4 Q6 Q5 i u
q Bornes d’antennes FM/AM ···················································· (20)
w Bornes audio analogiques ·········································(16 – 18, 21)
e Bornes PRE OUT ·····················································(5, 21, 34 – 36)
r Borne 7.1CH INPUT ································································· (21)
t Bornes d’enceintes ·······················································(5, 34 – 36)
y Prise CA ······················································································ (5)
u Bornes COMPONENT VIDEO ············································ (16, 17)
i Bornes HDMI ············································································ (15)
o Bornes audio numériques ···············································(16 – 18)
Q0 Prise FLASHER IN
Utilisé avec un BOITIER de commande ou autre dispositif de
commande pour la gestion de cet appareil.
Q1 Bornes VIDEO ···································································(16 – 18)
Q2 Bornes REMOTE CONTROL ···················································· (38)
Q3 Borne M-XPort ··································································· (18, 38)
Q4 Borne SIRIUS ··········································································· (20)
Q5 Prise DC OUT ··········································································· (38)
Q6 Borne RS-232C ········································································· (38)
REMARQUE
Ne touchez pas les broches internes des connecteurs sur le panneau
arrière. Une éventuelle décharge électrique pourrait endommager de
façon permanente votre appareil.
