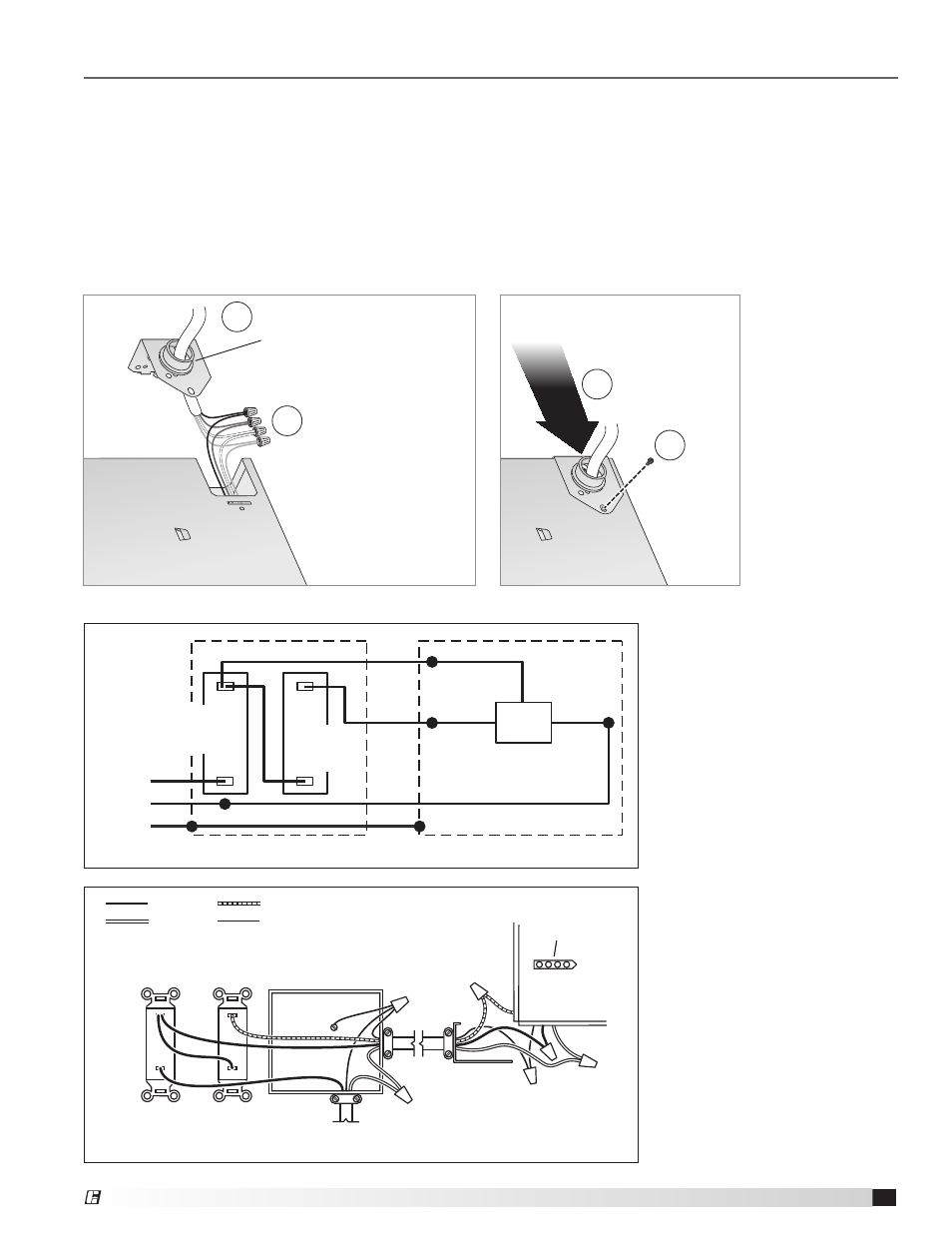

5 - Connect Wires and Install Knockout Plate
• Run 120VAC electrical wiring to the installation
location.
• Use proper UL-approved connectors to secure wiring
to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
3
4
1
2
Screw from
Parts Bag
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
Connect wires
LINE
IN
GRD GRD
WHT
BLK
BLK BLK (Adjustable Level)
RED
WHT
WHT RED
(Rated
Level)
MASTER
ON/OFF
SWITCH
MODE
SELECT
SWITCH
FAN
UNIT SWITCH BOX
LINE
IN
GRD GRD
WHT
BLK
BLK BLK
RED
WHT
WHT RED MASTER
ON/OFF
SWITCH
MASTER
ON/OFF
SWITCH*
MODE
SELECT
SWITCH
MODE
SELECT
SWITCH*
FAN
UNIT SWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
BLACK
WHITE RED
GROUND (green or bare)
* purchase separately
New Construction Installation
5 SP Ceiling Exhaust Fans
®
