7 — English © 2010 Baja, Inc. All Rights Reserved.

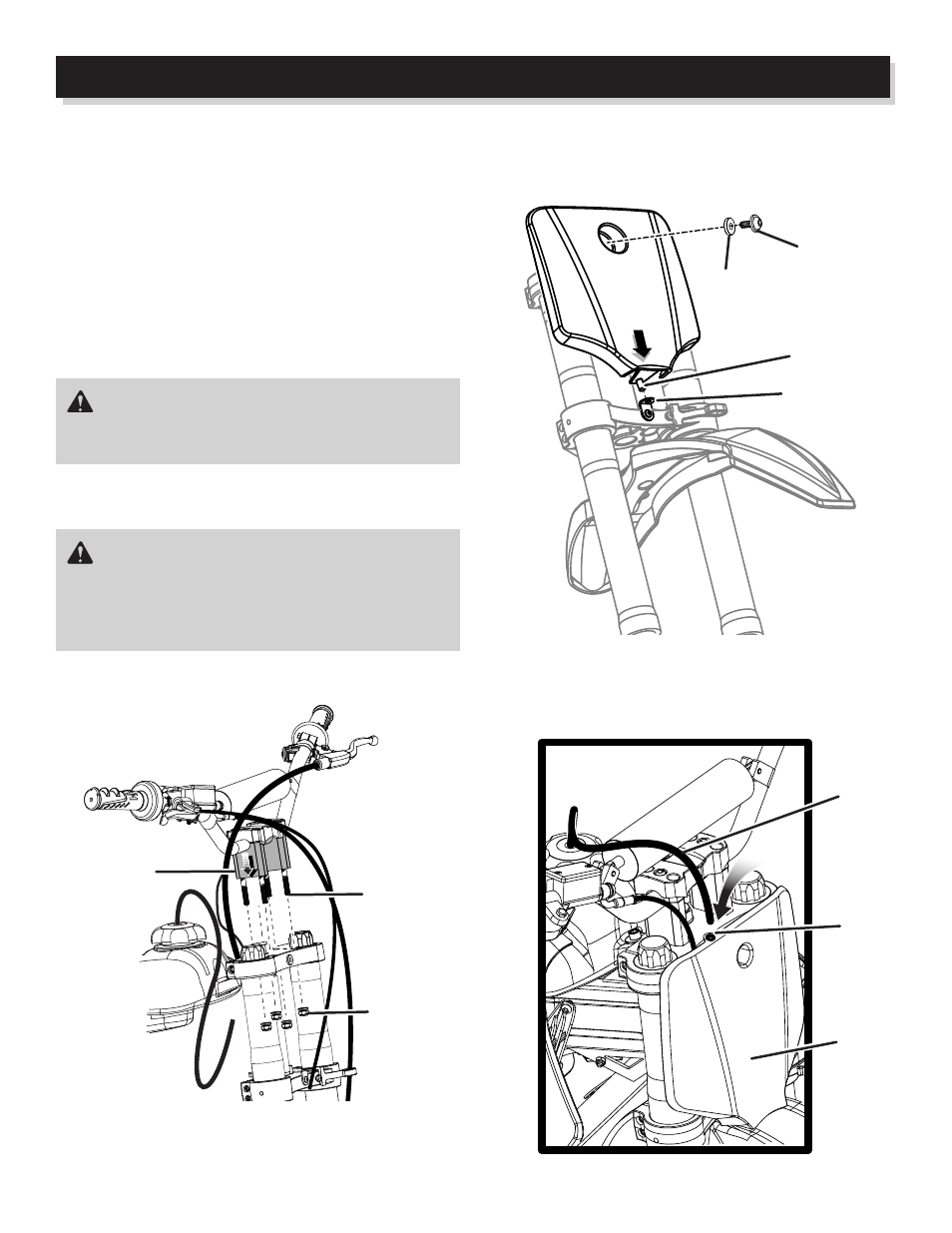

ASSEMBLY
INSTALLING HANDLEBAR AND NUMBER
PLATE
 Remove lock nuts and washers from the handlebar
mounting brackets. Leave the bolts in place and keep the
top and bottom mounting brackets sandwiched against
the handlebar.
 Place the threaded end of the bolts through the holes in
the dirt bike frame as shown.
 Adjust the position of the handlebar as needed to proper
operating position.
 Reinstall the washer and lock nuts and tighten nuts securely.
Torque to 20 ft.lbs. (27 Nm).
WARNING:
Strictly adhere to all torque wrench tightening specifica-
tions. Failure to do so could cause serious personal injury.
 Turn the handlebars fully left and right to verify proper
operation and to make sure the throttle cable, brake hoses,
and other wires are not squeezed or pulled too tightly.
WARNING:
Failure to correctly install and verify proper operation of
the handlebars could cause a loss of control when op-
erating the dirt bike, which could result is serious injury
or death.
 Place the peg on the bottom of the number plate into the
bracket as shown.
 Install bolt with washer to secure top of number plate.
 Feed fuel vent line through hole in top of number plate as
shown.
BOLT
NUMBER
PLATE
LOCK
NUTS
BRACKET
FUEL VENT
LINE
HOLE
SCREW
WASHER
BRACKET
PEG
