2

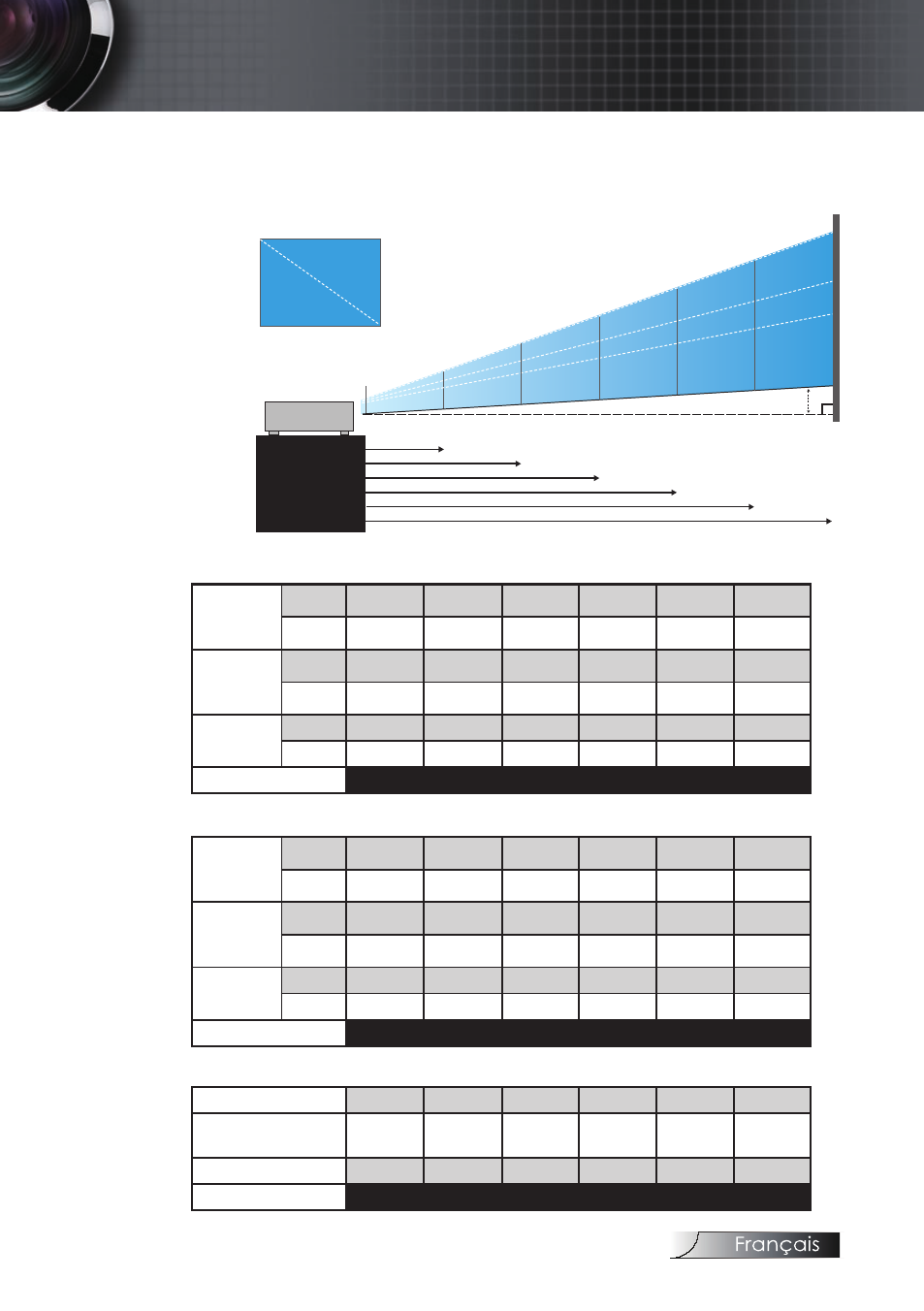

Réglage de la taille de l’image projetée
(WUXGA)
Hauteur
Diagonale
Largeur
Hd Hd
4,9' (1,50m)
6,6' (2,00m)
18,4' (5,60m)
30,2' (9,20m)
42,0' (12,80m)
53,8' (16,40m)
65,6' (20,00m)
1,6' (0,50m)
3,3' (1,00m)
4,9' (1,50m)
6,6' (2,00m)
8,2' (2,50m)
9,8' (3,00m)
8,9' (2,72m)
14,4' (4,40m)
20,2' (6,16m)
26,2 (8,00m)
32,6' (9,95m)
Objectif standard : Décalage=55%
Ecran
(Diagonale)
Max. 45,2’’
(114,9cm)
82,0’’
(208,3cm)
132,6’’
(336,9cm)
185,7’’
(471,7cm)
241,2’’
(612,6cm)
300,0’’
(761,9cm)
Min. 36,1’’
(91,7cm)
65,4’’
(166,2cm)
105,8’’
(268,8cm)
148,2’’
(376,4m)
192,4’’
(488,8cm)
239,4’’
(608,0cm)
Taille de
l’écran
(lxH)
Max. 38,3’’x24,0’’
97,4x60,9cm
69,5’’x43,5’’
176,6x110,4cm
112,5’’x70,3’’
285,7x178,6cm
157,5’’x98,4’’
400,0x250,0cm
204,5’’x127,8’’
519,5x324,7cm
254,4’’x159,0’’
646,1x403,8cm
Min. 30,6’’x19,1’’
77,7x48,6cm
55,5’’x34,7’’
140,9x88,1cm
89,8’’x56,1’’
228,0x142,5cm
125,7’’x78,5’’
319,2x199,5cm
163,2’’x102,0’’
414,5x259,1cm
203,0’’x126,9’’
515,5x322,2cm
Hd
Max. 1,2’’ (3,0cm) 2,2’’ (5,5cm) 3,5’’ (8,9cm) 4,9’’ (12,5cm) 6,4’’ (16,2cm) 7,9’’ (20,2cm)
Min. 1,0’’ (2,4cm) 1,7’’ (4,4cm) 2,8’’ (7,1cm) 3,9’’ (10,0cm) 5,1’’ (13,0cm) 6,3’’ (16,1cm)
Distance 4,9’ (1,50m) 8,9’ (2,72m) 14,4’ (4,40m) 20,2’ (6,16m) 26,2’ (8,00m) 32,6’ (9,95m)
Objectif longue portée : Décalage=55%
Ecran
(Diagonale)
Max. 48,1’’
(122,2cm)
134,7’’
(342,2cm)
221,3’’
(562,1cm)
307,9’’
(782,1cm)
394,5’’
(1002,1cm)
481,1’’
(1222,0cm)
Min. 32,0’’
(81,3cm)
89,7’’
(227,7cm)
147,3’’
(374,1cm)
204,9’’
(520,5cm)
262,6’’
(666,9cm)
320,2’’
(813,3cm)
Taille de
l’écran (lxH)
Max. 40,8’’x25,5’’
103,6x64,8cm
114,2’’x71,4’’
290,2x181,3cm
187,7’’x117,3’’
476,7x297,9cm
261,1’’x163,2’’
663,2x414,5cm
334,5’’x209,1’’
849,7x531,1cm
408,0’’x255,0’’
1036,0x647,7cm
Min. 27,2’’x17,0’’
69,0x43,1cm
76,0’’x47,5’’
193,1x120,7cm
124,9’’x78,1’’
317,2x198,3cm
173,8’’x108,6’’
441,4x275,9cm
222,6’’x139,2’’
565,5x353,4cm
271,5’’x169,7’’
689,7x431,0cm
Hd
Max.
1,3’’ (3,2cm) 3,6’’ (9,1cm) 5,9’’ (14,9cm) 8,2’’ (20,7cm) 10,5’’ (26,6cm) 12,7’’ (32,4cm)
Min.
0,8’’ (2,2cm) 2,4’’ (6,0cm) 3,9’’ (9,9cm) 5,4’’ (13,8cm) 7,0’’ (17,7cm) 8,5’’ (21,6cm)
Distance
6,6’ (2,00m) 18,4’ (5,60m) 30,2’ (9,20m) 42,0’ (12,80m) 53,8’ (16,40m) 65,6’ (20,00m)
Objectif courte portée : Décalage=55%
Ecran (Diagonale) 30,1’’ (76,6cm) 60,3’’ (153,1cm) 90,4’’ (229,7cm) 120,6’’ (306,3cm) 150,7’’ (382,9cm) 180,9’’ (459,4cm)
Taille de l’écran
(lxH)
25,6’’x16,0’’
64,9x40,6cm
51,1’’x32,0’’
129,9x81,2cm
76,7’’x47,9’’
194,8x121,8cm
102,3’’x63,9’’
259,7x162,3cm
127,8’’x79,9’’
324,7x202,9cm
153,4’’x95,9’’
389,6x243,5cm
Hd 0,8’’ (2,0cm) 1,6’’ (4,1cm) 2,4’’ (6,1cm) 3,2’’ (8,1cm) 4,0’’ (10,1cm) 4,8’’ (12,2cm)
Distance 1,6’ (0,50m) 3,3’ (1,00m) 4,9’ (1,50m) 6,6’ (2,00m) 8,2’ (2,50m) 9,8’ (3,00m)
