Optoma EH503 - Manuel (Page 26)

2

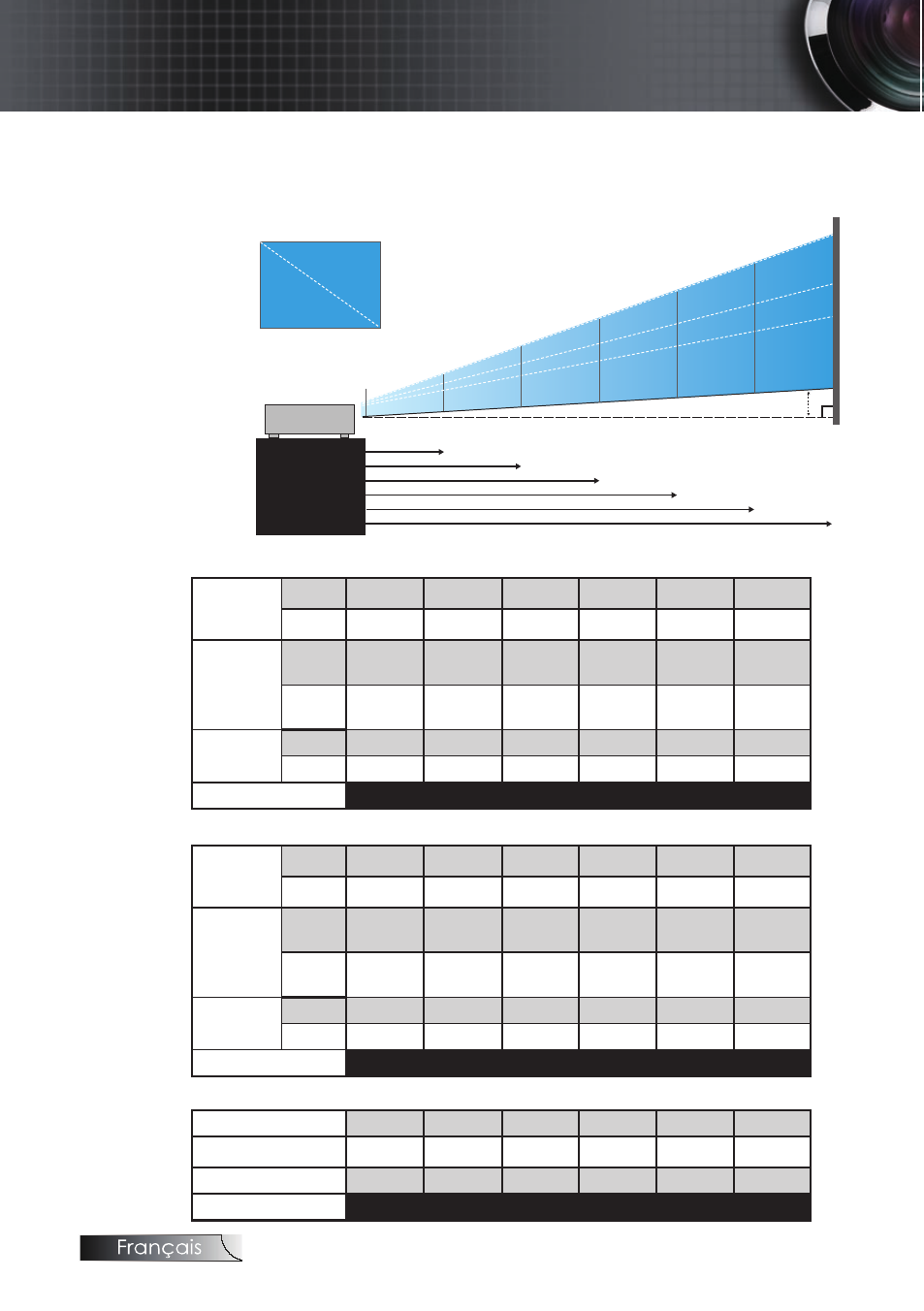

Réglage de la taille de l’image projetée
(WXGA)
Hauteur
Diagonale
Largeur
Hd Hd
4,9' (1,50m)
9,6' (2,92m)
15,5' (4,72m)
21,7' (6,61m)
28,2' (8,59m)
34,4' (10,47m)
6,6' (2,00m)
18,4' (5,60m)
30,2' (9,20m)
42,0' (12,80m)
53,8' (16,40m)
65,6' (20,00m)
1,6' (0,50m)
3,3' (1,00m)
4,9' (1,50m)
6,6' (2,00m)
8,2' (2,50m)
9,8' (3,00m)
Objectif standard : Décalage=55%
Ecran
(Diagonale)
Max. 43,0’’
(109,2cm)
83,7’’
(212,6cm)
135,3’’
(343,6cm)
189,4’’
(481,2cm)
246,2’’
(625,3cm)
300,1’’
(762,1cm)
Min. 34,3’’
(87,1cm)
66,8’’
(169,6cm)
107,9’’
(274,2cm)
151,2’’
(384,0cm)
196,5’’
(499,0cm)
239,5’’
(608,2cm)
Taille de
l’écran
Max.
(lxH).
36,5’’x22,8’’
92,6x57,9cm
71,0’’x44,4’’
180,2x112,7cm
114,7’’x71,7’’
291,4x182,1cm
160,6’’x100,4’’
408,0x255,0cm
208,8’’x130,5’’
530,2x331,4cm
254,4’’x159,0’’
646,3x403,9cm
Min.
(lxH)
29,1’’x18,2’’
73,9x46,2cm
56,6’’x35,4’’
143,8x89,9cm
91,5’’x57,2’’
232,5x145,3cm
128,2’’x80,1’’
325,6x203,5cm
166,6’’x104,1’’
423,2x264,5cm
203,1’’x126,9’’
515,8x322,4cm
Hd
Max.
1,1’’ (2,9cm) 2,2’’ (5,6cm) 3,6’’ (9,1cm) 5,0’’ (12,8cm) 6,5’’ (16,6cm) 8,0’’ (20,2cm)
Min.
0,9’’ (2,3cm) 1,8’’ (4,5cm) 2,9’’ (7,3cm) 4,0’’ (10,2cm) 5,2’’ (13,2cm) 6,3’’ (16,1cm)
Distance
4,9’ (1,50m) 9,6’ (2,92m) 15,5’ (4,72m) 21,7’ (6,61m) 28,2’ (8,59m) 34,4’ (10,47m)
Objectif longue portée : Décalage=55%
Ecran
(Diagonale)
Max. 45,7’’
(116,2cm)
128,1’’
(325,3cm)
210,4’’
(534,4cm)
292,7’’
(743,6cm)
375,1’’
(952,7cm)
457,4’’
(1161,8cm)
Min. 30,4’’
(77,3cm)
85,2’’
(216,5cm)
140,0’’
(355,7cm)
194,8’’
(494,9cm)
249,6’’
(634,1cm)
304,4’’
(773,3cm)
Taille de
l’écran
Max.
(lxH).
38,8’’x24,2’’
98,5x61,6cm
108,6’’x67,9’’
275,9x172,4cm
178,4’’x111,5’’
453,2x283,3cm
248,2’’x155,2’’
630,5x394,1cm
318,1’’x198,8’’
807,9x504,9cm
387,9’’x242,4’’
985,2x615,8cm
Min.
(lxH)
25,8’’x16,1’’
65,6x41,0cm
72,3’’x45,2’’
183,6x114,8cm
118,8’’x74,2’’
301,6x188,5cm
165,2’’x103,3’’
419,7x262,3cm
211,7’’x132,3’’
537,7x336,1cm
258,2’’x161,4’’
655,7x409,8cm
Hd
Max.
1,2’’ (3,1cm) 3,4’’ (8,6cm) 5,6’’ (14,2cm) 7,8’’ (19,7cm) 9,9’’ (25,2cm) 12,1’’ (30,8cm)
Min.
0,8’’ (2,0cm) 2,3’’ (5,7cm) 3,7’’ (9,4cm) 5,2’’ (13,1cm) 6,6’’ (16,8cm) 8,1’’ (20,5cm)
Distance
6,6’ (2,00m) 18,4’ (5,60m) 30,2’ (9,20m) 42,0’ (12,80m) 53,8’ (16,40m) 65,6’ (20,00m)
Objectif courte portée : Décalage=55%
Ecran (Diagonale)
28,7’’ (72,8cm) 57,3’’ (145,6cm) 86,0’’ (218,4cm) 114,6’’ (291,2cm) 143,3’’ (364,0cm) 172,0’’ (436,8cm)
Taille de l’écran 24,3’’x15,2’’
61,7x38,6cm
48,6’’x30,4’’
123,5x77,2cm
72,9’’x45,6’’
185,2x115,7cm
97,2’’x60,8’’
246,9x154,3cm
121,5’’x75,9’’
308,6x192,9cm
145,8’’x91,1’’
370,4x231,5cm
Hd
0,8’’ (1,9cm) 1,5’’ (3,9cm) 2,3’’ (5,8cm) 3,0’’ (7,7cm) 3,8’’ (9,6cm) 4,6’’ (11,6cm)
Distance
1,6’ (0,50m) 3,3’ (1,00m) 4,9’ (1,50m) 6,6’ (2,00m) 8,2’ (2,50m) 9,8’ (3,00m)
Installation
