6

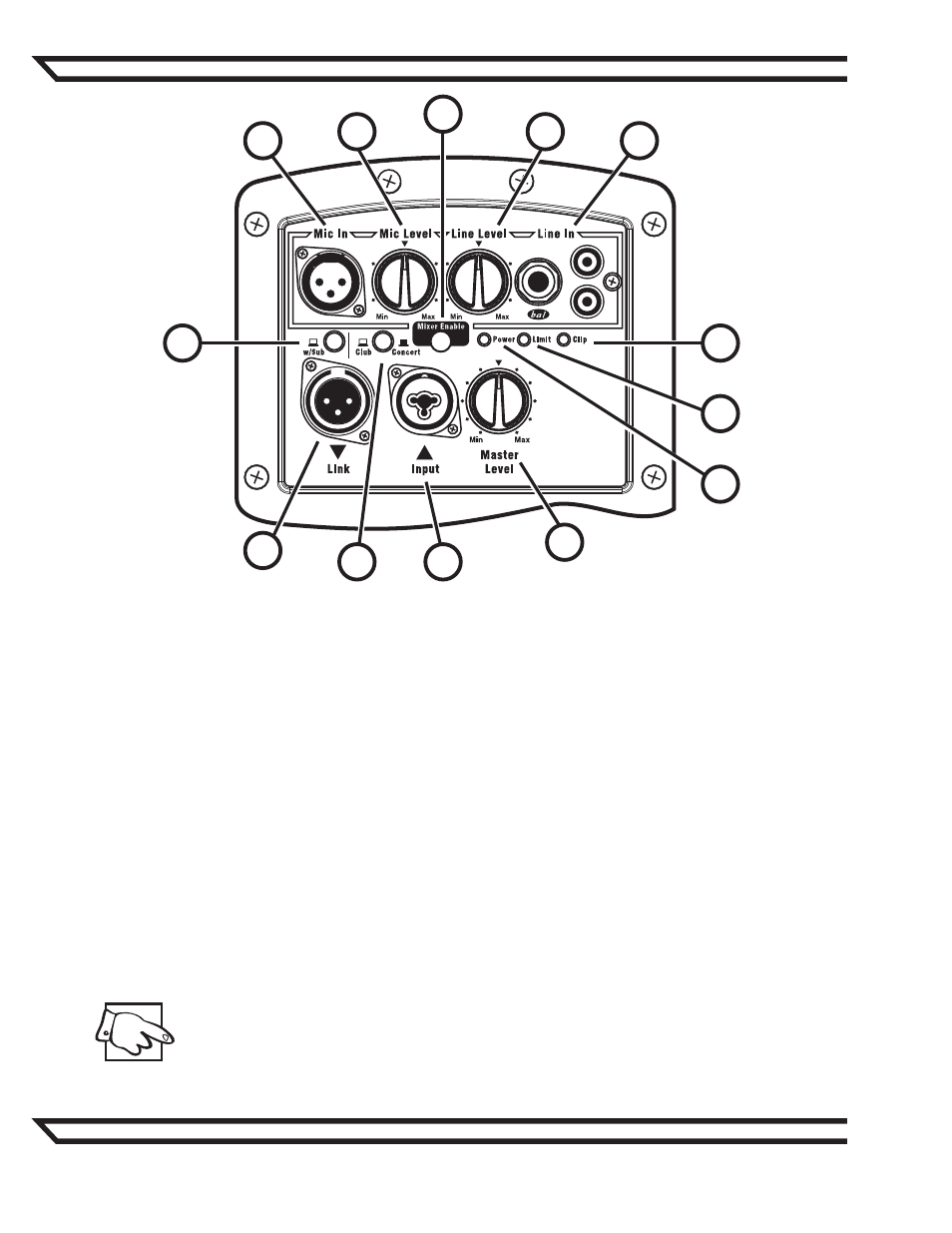

Built-In Two Channel Mixer
1. Mic In
Any dynamic microphone can be connected to the Mic input. Condenser microphones will require an
external power supply.
2. Mic Level
The Mic Level control adjusts the volume level of the Mic input. The microphone signal output to other
cabinets through the link connections will be affected as well.
3. Line In
The Line inputs allow line level sources such as portable music players and keyboards to be connected.
These RCA inputs are summed to allow the blending of stereo sources into mono. The ¼-inch input is
also balanced to help reject hum (when used with balanced cables). This input may be used to allow
operation from lower-level Line inputs (as opposed to the Link jacks).
4. Line Level
The Line control adjusts the volume level of devices plugged into the ¼-inch and RCA line inputs.
The signal out from this device, through the link connections, to other cabinets will be affected as
well. A line-level signal and microphone connected simultaneously will be electronically summed
allowing both to work together.
5. Mixer Defeat
The Mixer Defeat switch disables the on board mixer on the Parasource enclosure. For best noise
performance when the Parasource enclosure’s mixer is not being use, set the switch to defeat.
*Note: Parasource enclosures have been designed to connect multiple Parasource enclosures via the
Inputs and Link Outputs. When linking the Parasource enclosures, a maximum of 3 of internal mixers
can be used (enabled) allowing up to 3 microphones and 3 line sources to be mixed without the need
of an external mixer. This is useful for smaller music engagements, meetings, seminars, etc..
1
8
6 12
11
10
2
7
5
8
4
9
3
