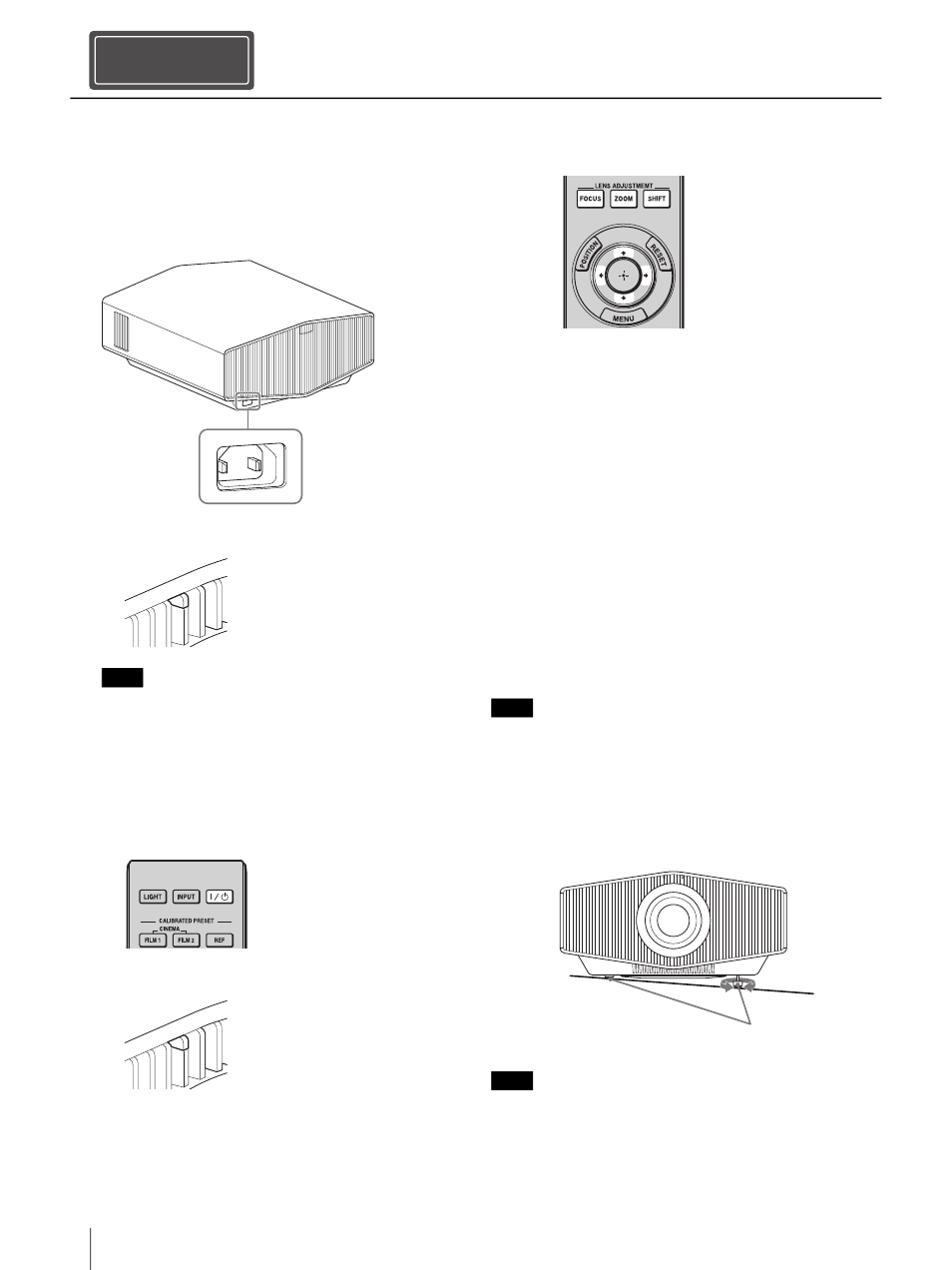

Installing the Unit
1
Position the unit so that the lens is parallel to
the screen.
2
After connecting the AC power cord to the
unit, plug the AC power cord into a wall outlet.
After connecting the AC power cord to the unit, the
ON/STANDBY indicator may blink in orange.
You may not be able to control the unit while the
indicator is blinking, but this is not a malfunction. Wait
until it stops blinking and remains lit in red.
3
Press the  /  (On/Standby) button to turn on
the unit.
4
Project an image on the screen, then adjust
the focus, size, and position.
 Adjust the focus.
Press the LENS ADJUSTMENT (FOCUS) button
to display the Lens Focus adjustment window
(test pattern). Then adjust the focus of the
picture by pressing the
 /  /  /  button.
 Adjust the picture size.
Press the LENS ADJUSTMENT (ZOOM) button to
display the Lens Zoom adjustment window
(test pattern). Then adjust the size of the
picture by pressing the
 /  /  /  button.
 Adjust the picture position.
Press the LENS ADJUSTMENT (SHIFT) button to
display the Lens Shift adjustment window
(test pattern). Then adjust to the proper
position of the picture by pressing the
 /  /
 /  button.
Do not touch the lens when you adjust the image position.
Your fingers may be pinched when the lens extends/
retracts.
To adjust the tilt of the installation surface
If the unit is installed on an uneven surface, use
the front feet (adjustable) to keep the unit level.
 Note that if the unit is tilted up or down, the projected
image will be distorted in a trapezoidal shape.
 Be careful not to pinch your fingers when rotating the
front feet (adjustable).
Installing the Unit
Step 2
Note
Rear of the unit
ON/ST
ANDB
Y
Front of the unit
Lights in red.
ON/ST
ANDB
Y
Front of the unit
The ON/STANDBY indicator flashes
in green, then it lights in green.
Note
Notes
Turn to adjust.
Front feet (adjustable)
