CONNECTIONS

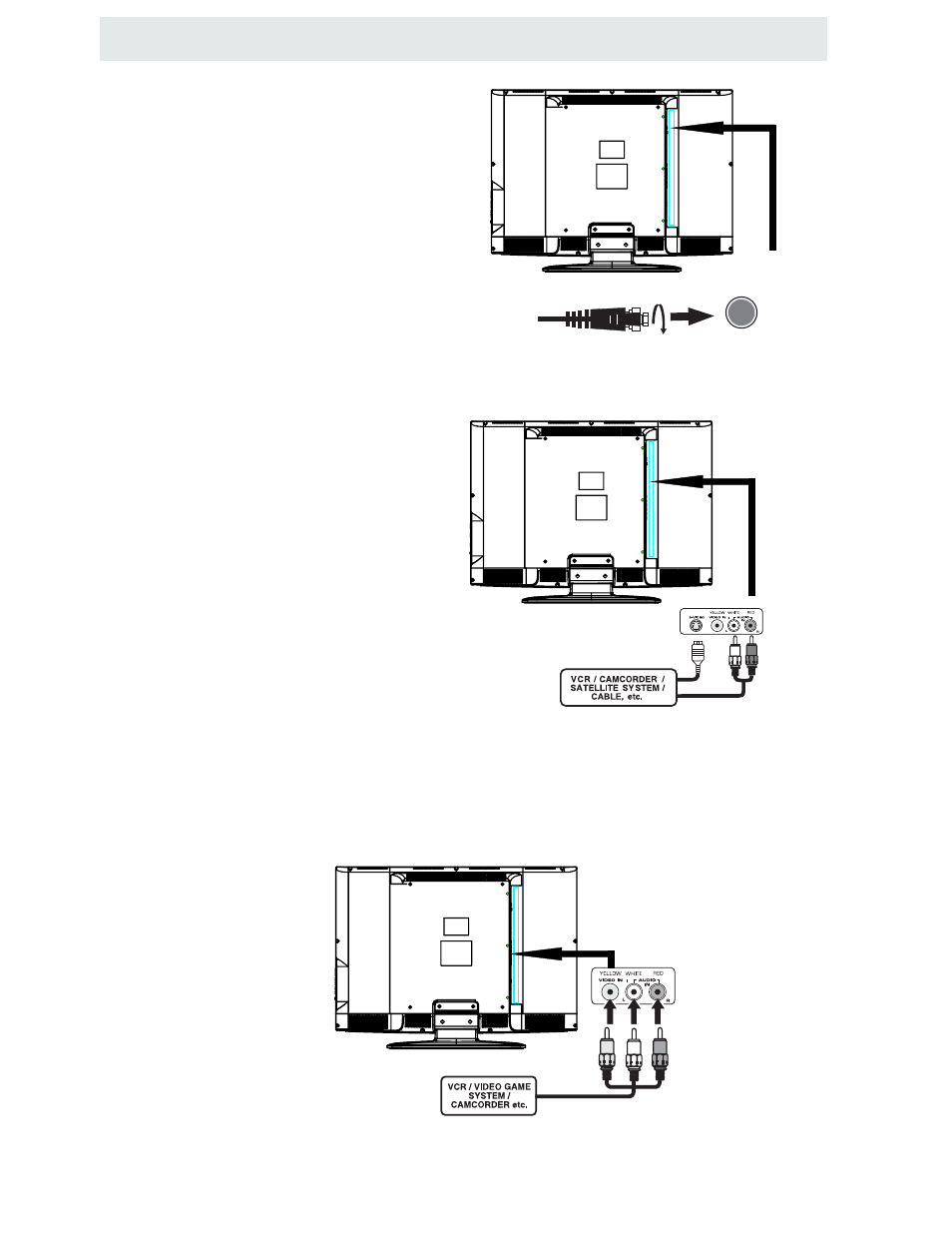

CONNECTING A TV ANTENNA / CABLE / S A TELLITE
To view television channels correctly, a signal must
be received from one of the following sources:
- An indoor or outdoor aerial antenna
- A cable system
- A satellite system
For receiving over-the-air TV broadcasts, we
recommend that you use an external fixed antenna.
Should you require the use of a temporar y antenna,
please ensure that you purchase an antenna with
sufficient ability to receive in weak signal areas.
Only when you are in close proximity to a transmitter
will a temporar y antenna reproduce a signal as
strongly as a fixed antenna.
To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.
CONNECTING AN A/V DEVICE
NOTE
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)
VIDEO OUTPUT
Connecting to a VCR / Video Game System / Camcorder
AUDIO VIDEO OUT
NOTE
To connect A/V devices such as a VCR, video game system or camcorder.
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment (
and ) to this unit
Please refer to the user manual
for the other equipment for
more information.
Satellite, cable or TV antenna
cable to TV ANTENNA
terminal (cable not included)
To AUDIO / VIDEO
IN jacks (AV IN)
To AUDIO / VIDEO
OUT jacks
8
(VIDEO1 IN and AUDIO1 IN)
or (VIDEO2 IN and AUDIO2 IN).
(VIDEO1 IN and AUDIO1 IN) or (VIDEO2 IN and AUDIO2 IN).
Connecting to a VCR / Camcorder /
Satellite System / Cable
AUDIO OUT S-VIDEO OUT
AUDIO1 IN S-VIDEO IN
NOTE
Connect the AUDIO and S-VIDEO cable
(not included) as shown.
Make sure you connect the cable from the other
equipment (
and ) to
this unit ( and ).
Please refer to the user manual for the other
equipment for more information.
To S-VIDEO OUT / AUDIO OUT jacks
To AUDIO1 IN
jacks (AV IN)
To S-VIDEO IN
jacks (AV IN)
