External connection
Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can
be connected to the antenna jack directly, if the antenna cable is a 300ohm flat
feeder cable, you need to use the 300ohm/75ohm converter (not included) to con-
nect the antenna cable to the antenna jack.
l 75Ωcoaxial cable is recommended to eliminate interference and double image
due to the unmatched input impedance of the antenna.
l The antenna cable and power line should not be bundled together.
Stand and Wall-mounted (Optional)
1. How to mount the LCD TV ?
(1) Take out the bracket hole cover from groove with screw driver and place on the
bracket hole;
(2) Fasten 4 screws into four nuts on the rear cover;
(3) Fasten 2 brackets with 4 M8 screws on the wall as figure 2 shown;
(4) Carefully check for the strength before releasing the LCD TV.

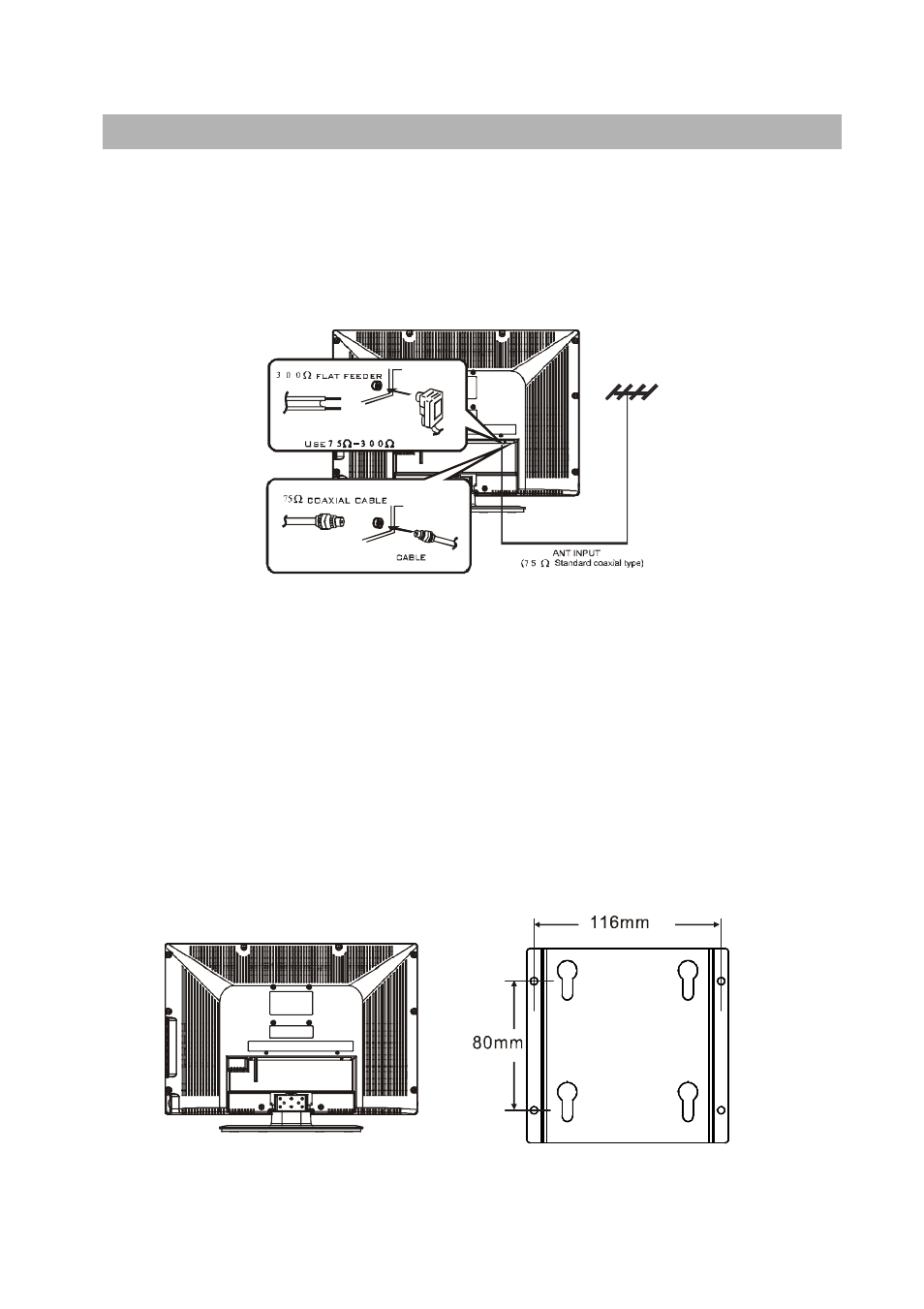

Figure 1 Figure 2
