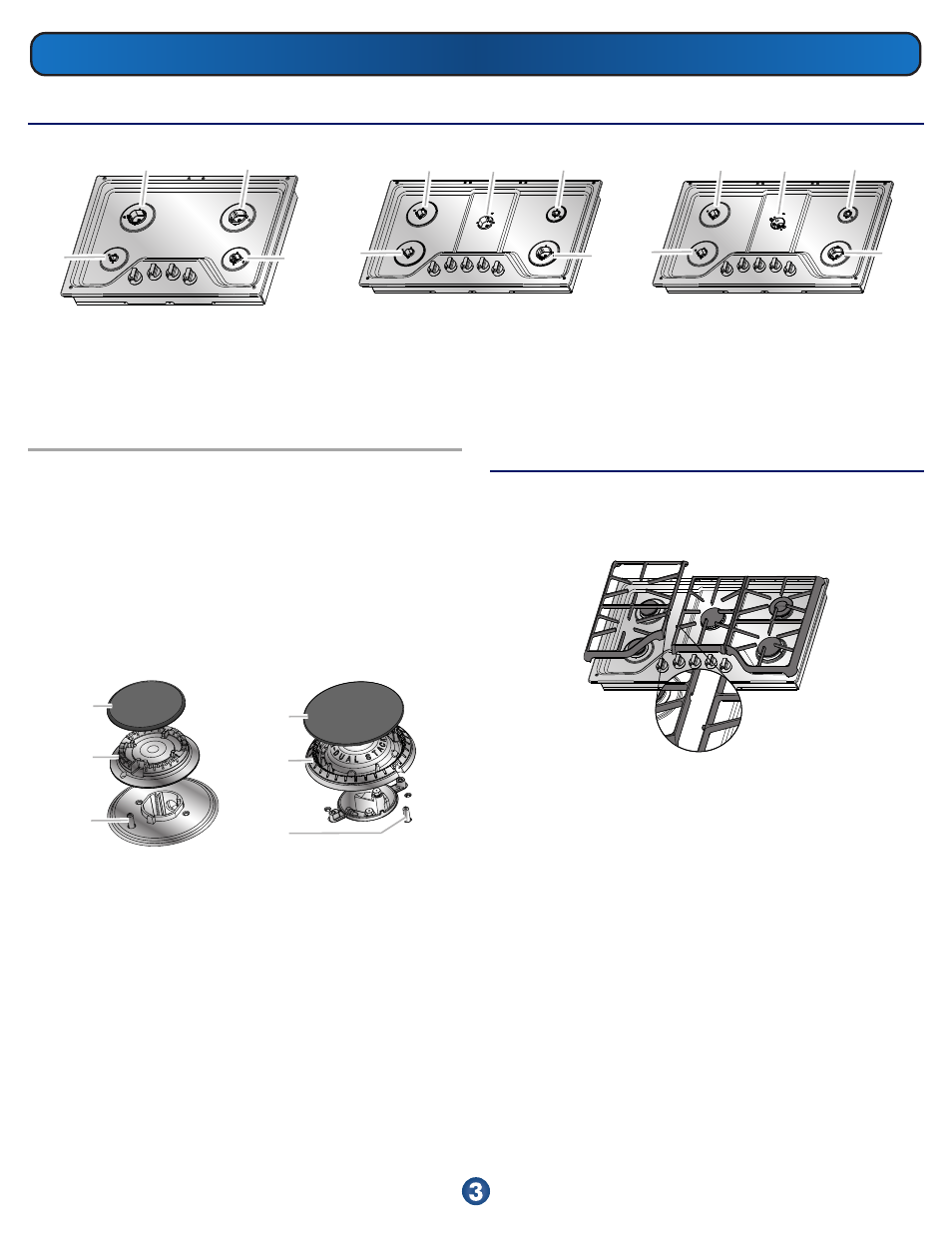

Assembling the Burners
Check your model number. Then refer to the following for information specific to your burners .
Standard and Power Simmer Dual Stacked Burners
■ Burner caps and spreaders are included with your cooktop.
■ Always match the burner spreader size to the cap size.
■ Always line up the hole in the spreader to the electrode.
■ Select models (MGC9 series models) come with an extra Melt cap.
This is a large cap with “MELT” and “FOR SMALLEST BURNER”
printed on it. Use this cap over the small burners, position D on
models with 4 burners and position C on models with 5 burners.
■ Standard and power simmer dual stacked burners are similar in
assembly. Note that there is no hole in the dual stacked burner
spreader to insert the electrode. The stacked burner electrode (C)
aligns with the semicircle notch in the spreader (B).
Grate Placement
To install the grates, align the feet on the center grate with the indents
on the cooktop. Then install the 2 outer grates by aligning the tabs on
the center grate with the slots in the outer grates. Be sure to line up the
slots and tabs for proper grate alignment.
ASSEMBLING YOUR COOKTOP
B
C D
A B A C
D
E
B A C
D E
MGC7430 and MGC9530
A. Standard burner (power)
B. Standard burner
C. Standard burner
D. Standard burner (simmer)
MGC7536
A. Standard burner
B. Standard burner (power)
C. Standard burner (simmer)
D. Standard burner
E. Standard burner
MGC9536
A. Standard burner
B. Power simmer dual
stacked burner
C. Standard burner (simmer)
D. Standard burner
E. Standard burner
Standard Burner
A. Cap
B. Spreader
C. Electrode
Power Simmer
Dual Stacked
Burner
A. Cap
B. Spreader
C. Electrode
A
B
C
A
B
C
A. Outer grate slot
B. Center grate tab
