6

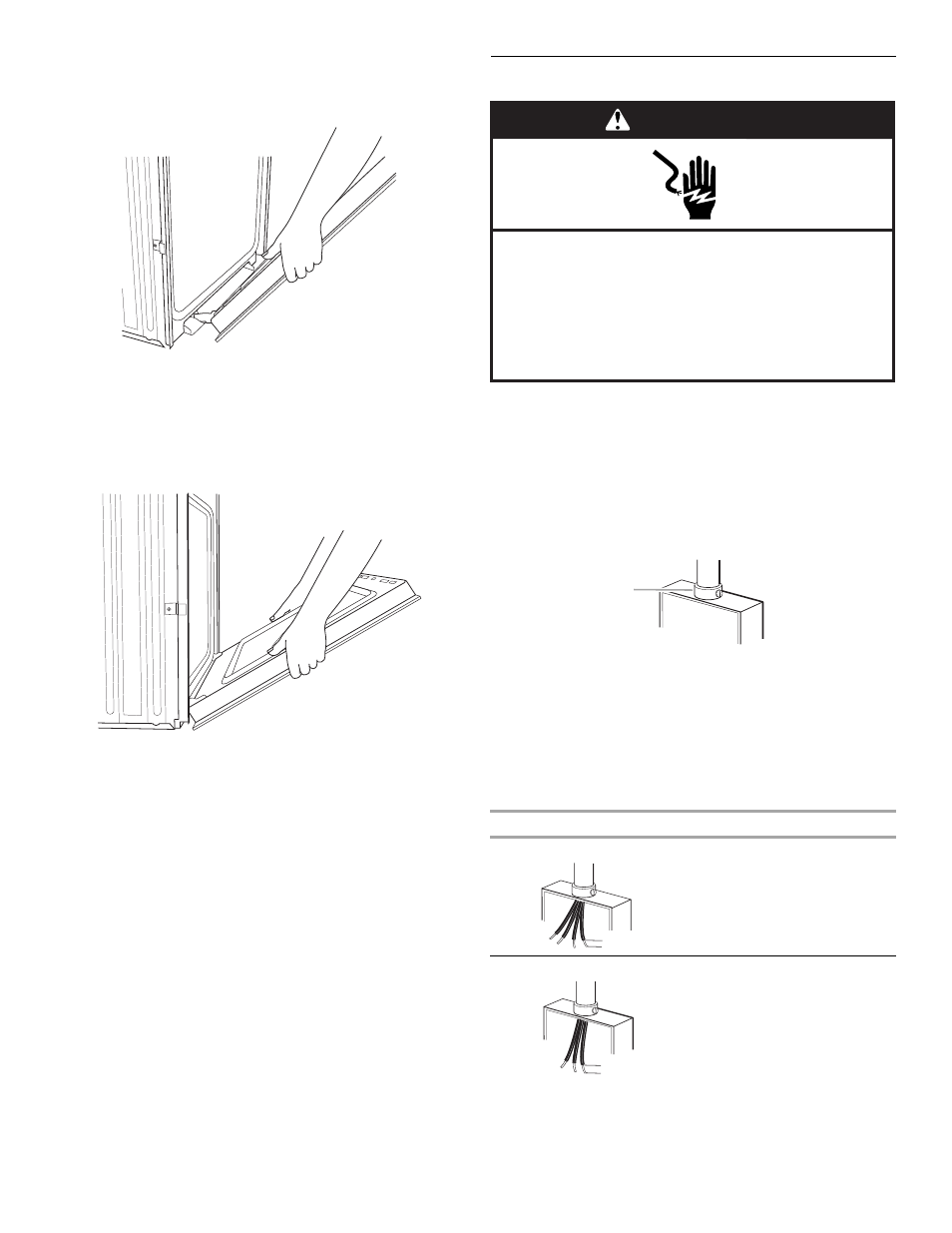

3. At a 45° angle, align door hinges with slots in the lower front
of the oven cavity. Slowly insert door, making sure you
maintain the 45° angle. You will know the door is engaged in
the slot when you feel a slight drop.
4. Lower the oven door to the fully open position. If the oven
door does not open to a full 90 degrees, repeat steps 1-3.
5. Locate the oven door hinge locks in the corners of the oven
door, and rotate the hinge locks toward the oven cavity to the
locked position.
See Step 3 (illustration A) in the “Remove Oven Door(s)”
section for proper locked position.
6. Close the oven door.
7. When the hinges are properly installed and the door closed,
there should be an even gap between the door and the
control panel. If one side of the oven door is hanging lower
than the other, the hinge on that side is not properly installed.
Make Electrical Connection
This oven is manufactured with a neutral (white) power supply
wire and a cabinet-connected green (or bare) ground wire twisted
together.
1. Disconnect power.
2. Feed the flexible conduit from the oven through the opening
in the cabinet.
3. Remove junction box cover, if it is present.
4. Install a UL listed or CSA approved conduit connector to the
junction box.
5. Route the flexible conduit from the oven to the junction box
through a UL listed or CSA approved conduit connector.
6. Tighten screws on conduit connector.
7. See “Electrical Connection Options Chart” to complete
installation for your type of electrical connection.
Electrical Connection Options Chart
A. UL listed or CSA approved conduit connector
If your home has: Go to section:
4-wire 4-wire Cable from Home
Power Supply
3-wire 3-wire Cable from Home
Power Supply
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge solid copper wire.
Electrically ground oven.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A
½"
(1.3 cm)
½"
(1.3 cm)
