FRANÇAIS
q w e r t y
o Q0 Q1 Q2 Q3 Q4
u
i
q Interrupteur principal (ON/OFF) ················· (8)
w Témoin principal (STANDBY) ······················ (8)
Indique l’état de l’appareil comme suit :
• Alimentation “ON” : Désactivé
• Lorsque le circuit de protection est activé :
Rouge (clignotant) ....................................... (6)
• Veille : Rouge
• Alimentation “OFF” : Arrêt
e Molette INPUT SELECTOR ·························· (9)
r Commutateur/témoin SOURCE DIRECT ···· (9)
t Témoins d’entrée ········································· (8)
y Témoin MUTE (MUTE) ································· (9)
u Commande VOLUME ······························· (8, 9)
i Capteur de télécommande ·················· (10, 11)
o Commande BALANCE ······························ (8, 9)
Q0 Commutateur/témoin LOUDNESS ············· (9)
Q1 Commutateurs/témoins SPEAKERS A/B ··· (9)
Q2 Commande TREBLE ································· (8, 9)
Q3 Commande BASS ····································· (8, 9)
Q4 Prise de casque audio (PHONES) ················ (9)
REMARQUE
Vous ne pouvez régler les boutons de commande
o BALANCE, Q2 TREBLE et Q3 BASS que lorsque
l’interrupteur r SOURCE DIRECT est éteint.

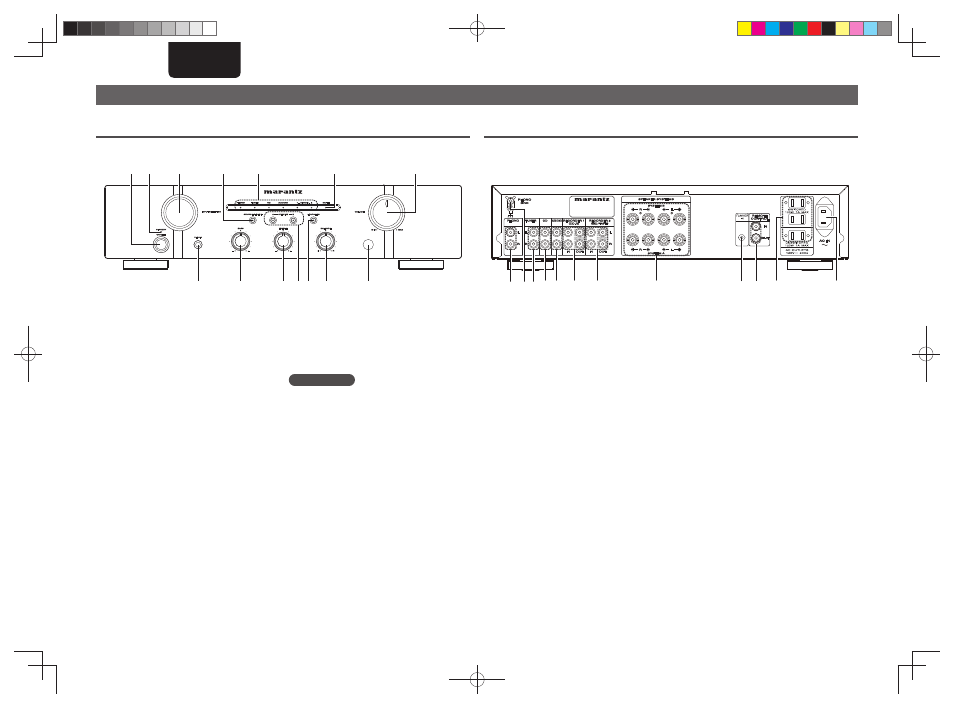

Nomenclature et fonctions
Pour les touches qui ne sont pas décrites ici, lire la page indiquée entre parenthèses ( ).
Panneau avant
q Bornes d’entrée PHONO ······························ (7)
w Borne PHONO GND ······································ (7)
e Bornes d’entrée TUNER ······························· (7)
r Bornes d’entrée CD ······································ (7)
t Bornes d’entrée AUX/DVD ·························· (7)
y Bornes d’entrée/sortie
RECORDER 1 (CD-R) ····································· (7)
u Bornes d’entrée/sortie
RECORDER 2 (MD/TAPE) ···························· (7)
Panneau arrière
q we r t y u i Q0 o Q2 Q1
i Bornes des systèmes d’enceintes
(SPEAKER SYSTEMS) ······························ (6, 7)
o Prise d’entrée FLASHER
Cette borne est utilisée pour commander
l’appareil depuis une autre zone.
Raccordez le signal de commande d’un pavé
numérique, etc.
Q0 Prises d’entrée/sortie
REMOTE CONTROL ···································· (10)
Q1 Sortie CA (AC OUTLETS) ····························· (8)
Q2 Prise CA (AC IN) ············································ (8)
