Tableau 2. Tension et fréquence de test

Modèle

Entrée

Alimentation

Mesure

Vca

Hz

AVC63-12A1

120

120

50/60

AVC63-12A2

120

120

400

AVC63-12B1

120

240

50/60

AVC63-12B2

120

240

400

AVC125-10A1

240

120

50/60

AVC125-10A2

240

120

400

AVC125-10B1

240

240

50/60

AVC125-10B2

240

240

400

Le fonctionnement du régulateur est satisfaisant si les résultats ci-dessus sont obtenus. Cependant, la stabilité
doit être testée lorsque l'alternateur et le régulateur sont en fonctionnement.

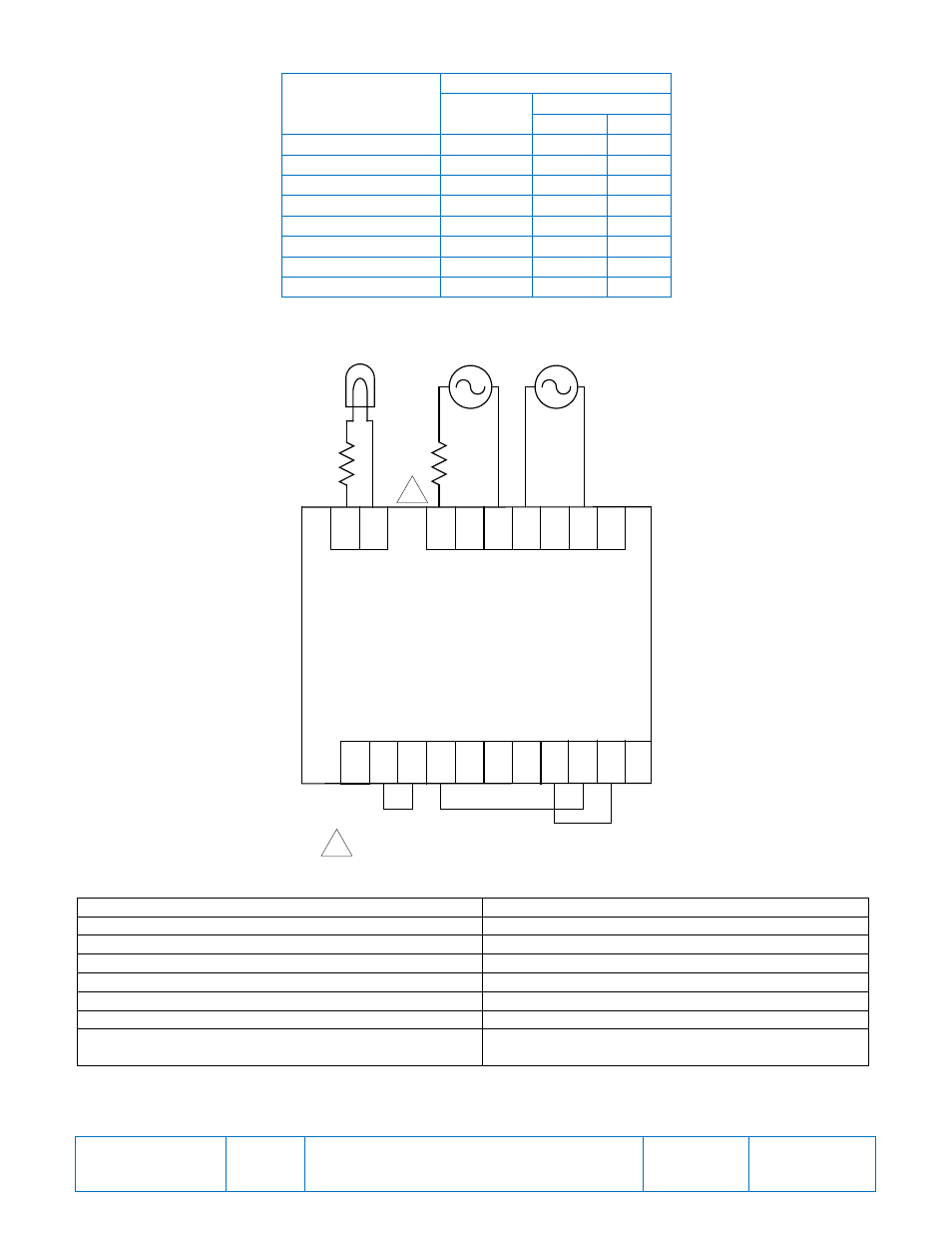

Figure 10. Configuration de test

100 W Lamp

Lampe de 100 W

Input Power

Puissance d'entrée

Sensing Voltage

Mesure de tension

10 ohms

10 ohms

20 ohms

20 ohms

AVC63-12 or AVC125-10

AVC63-12 ou AVC125-10

CH GND

CH GND

A wire-wound resistor with a minimum
power rating of 15 W should be used.

Une résistance bobinée d'une puissance nominale
minimum de 15 W doit être utilisée.

F1

F2

26

30

20

22

AVC63-12 or AVC125-10

D

2

5

9

0

-3

3

0

3

-2

4

-0

6

10

ohms

Input

Power

100 W

Lamp

24

28

2

3

5

6

6a

7

8

5a

9

4

CH

GND

Sensing

Voltage

20

ohms

1

1

A wire-wound resistor with a minimum
power rating of 15 W should be used.

Publication

9337270991

Révision

J

Instructions

Date

01/15

Page

14 sur 16
