Installation notes
1. Do not slide oven across floor. Damage to floor covering or
floor could result.
2. The oven support surface must be a minimum 3/4” (2cm)thick
plywood platform.
For single ovens, it must support 202 pounds.
For double ovens, it must support 379 pounds.
The platform must be solid, level and flush with the bottom
of the cabinet cut out.
3. Use extreme caution when moving or installing the oven. It is
very heavy.
DO NOT LIFT THE OVEN BY THE DOOR HANDLE, remove
the door for easier handling and installing.
See REMOVING THE DOOR in the maintenance section of
the Use Care Manual.
4. Be very careful when moving or installing the oven to avoid
damage to the oven frame or damage to the cabinets.
5. Be sure to level the oven. An oven that is not level may provide
poor or inconsistent baking results.
6. Be careful when placing oven. DO NOT pinch the conduit
between the oven back.
WARNING
Before installing or removing, turn power OFF at the service
panel. Lock service panel to prevent power from being turned
ON accidentally.
Securely fasten oven to cabinet using the screws provided.
Failure to do so could result in oven moving or tipping during use
and causing damage to the oven or cabinets or personal injury.
Know how to disconnect the power to the oven at the circuit
breaker or fuse box in case of an emergency.
CAUTION
Unit is heavy and requires at least two people or proper
equipment to move.

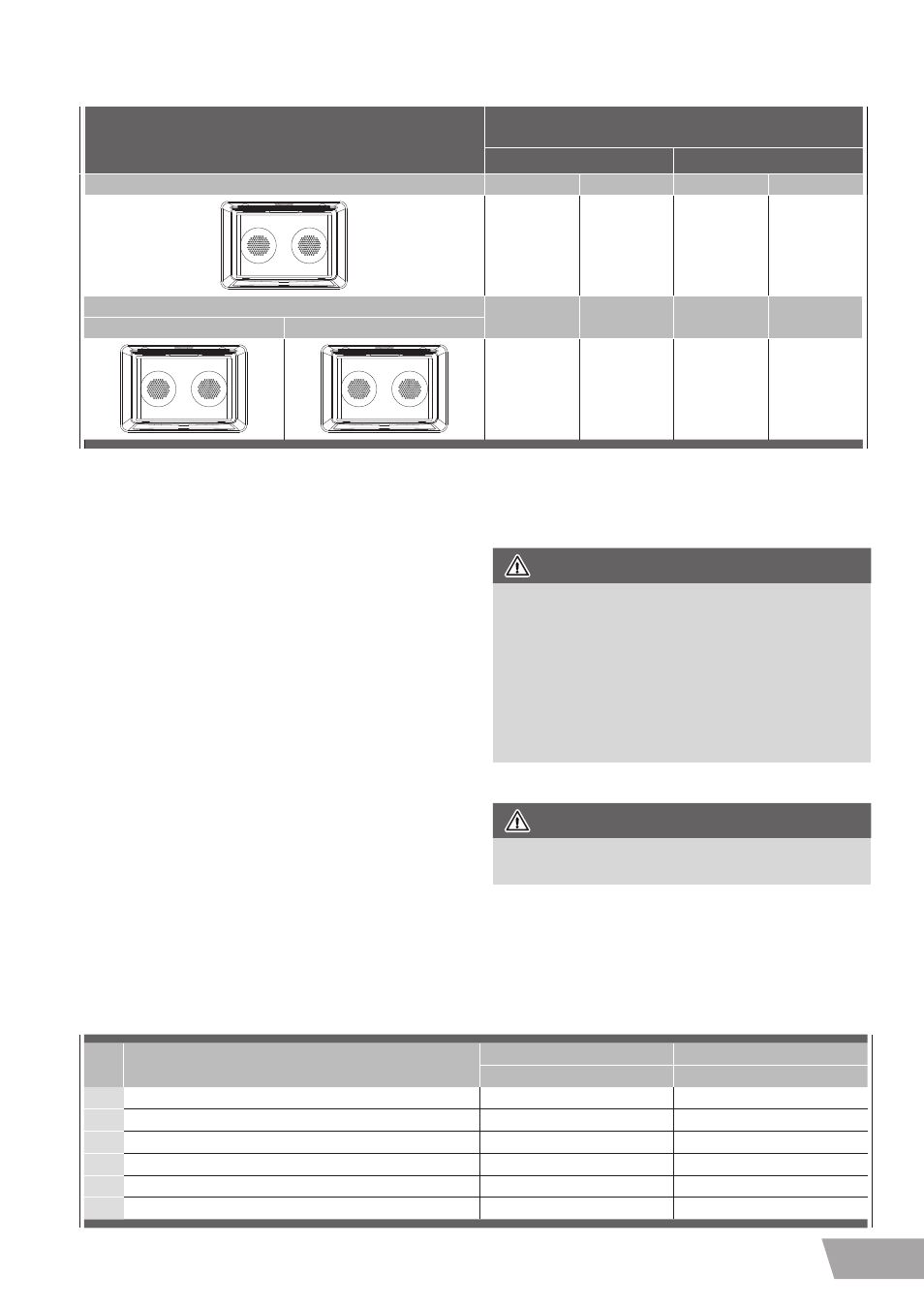

Ltr. DIMENSION
SINGLE DOUBLE
30” 30”
A Cutout Width 28 7/16” (72.2 cm) 28 7/16” ( 72.2 cm)
B Cutout Depth 24” (61 cm) 24” ( 61 cm)
C Cutout Height 27 3/8” (69.5 cm) 50” (127 cm)
D Floor Bottom of Cutout 34” (86.5 cm) N/A
E Minimum Spacing 1/2” ( 1.3 cm) 1/2” ( 1.3 cm)
F Minimum Spacing 3/4” ( 1.9 cm) 1 1/4” ( 3.2 cm)
Technical Data
For cutout dimensions see following section titled:
Preparing location
Electrical Ratings and Maximum
Connected Load
@ 120/240 Volts 60 Hz @ 120/208 Volts 60 Hz
SINGLE OVEN Amperes kW Amperes kW
16.9 3.84 17.5 3.54
DOUBLE OVEN
Amperes kW Amperes kW
UPPER CAVITY LOWER CAVITY
33.8 7.68 32.4 6.48
