DIMENSIONS
COMMERCIAL-STYLE RANGES
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All KitchenAid
® appliances are appropriately UL, CUL or CSA approved.
7 of 30

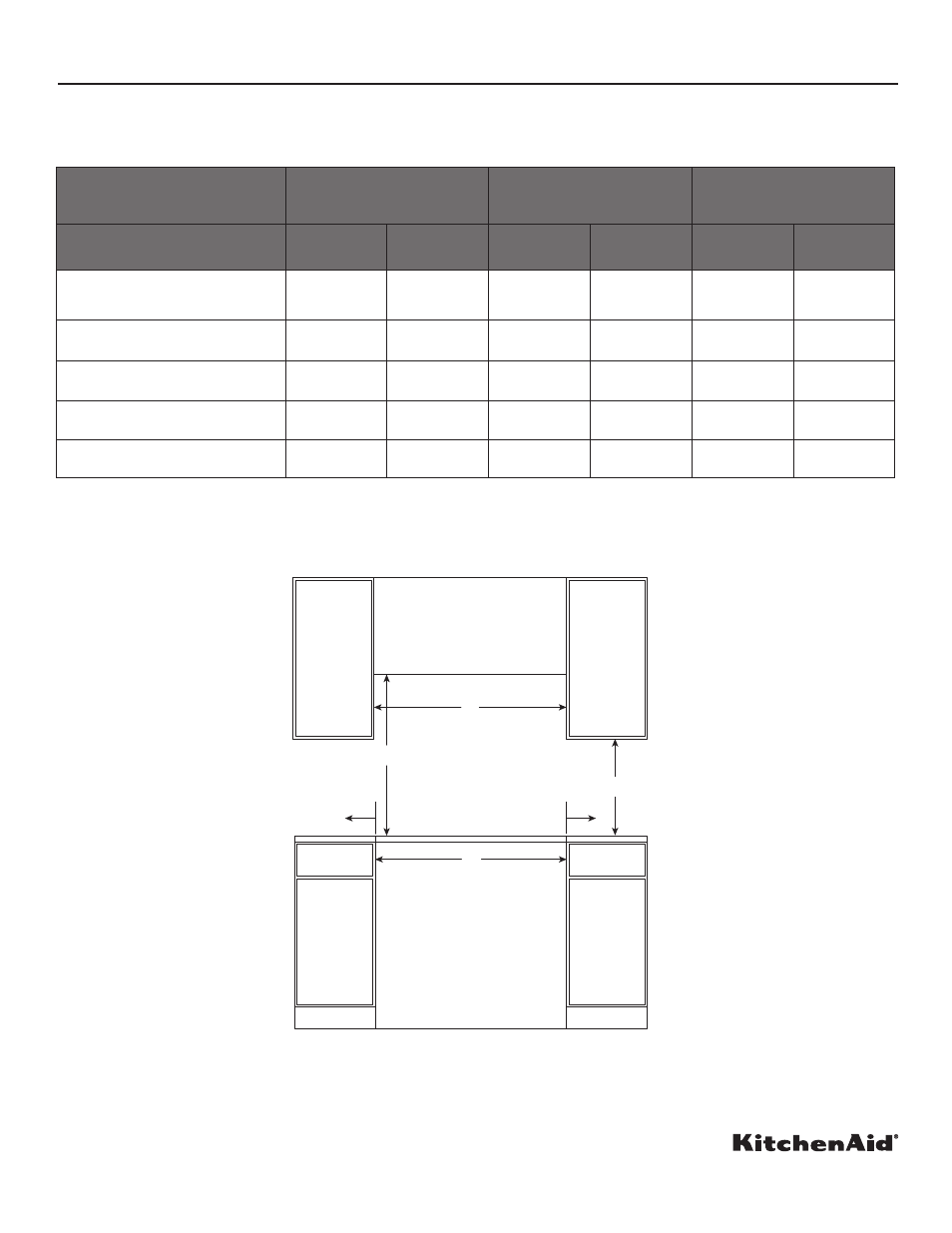

OPENING/CLEARANCE DIMENSIONS
MODEL #
30" (76.2 cm) RANGES
DUAL-FUEL/GAS
KFDC500J/KFGC500J
36" (91.4 cm) RANGES
DUAL-FUEL/GAS
KFDC506J/KFGC506J
48" (121.9 cm) RANGES
DUAL-FUEL/GAS
KFDC558J/KFGC558J
Unit of Measurement in cm in cm in cm
Combustible Area above Cooking
Surface Width (min.) (A)
30 76.2 36 91.4 48 121.9
Bottom of Cabinet Height above
Cooking Surface (min.) (B)*
42 106.7 58 147.3 58 147.3
Bottom of Cabinet Height above
Countertop (min.) (C)
18 45.7 18 45.7 18 45.7
Distance to Fixed Wall or
Combustible Material (min.) (D)
12 30.5 12 30.5 12 30.5
Opening Width (min.) (E) 30 76.2 36 91.4 48 121.9
* If installing a hood or hood liner above the range, follow the hood or hood liner instructions for dimensional clearances above the
cooking surface.
FRONT VIEW
A
E
D
B*
D
C
