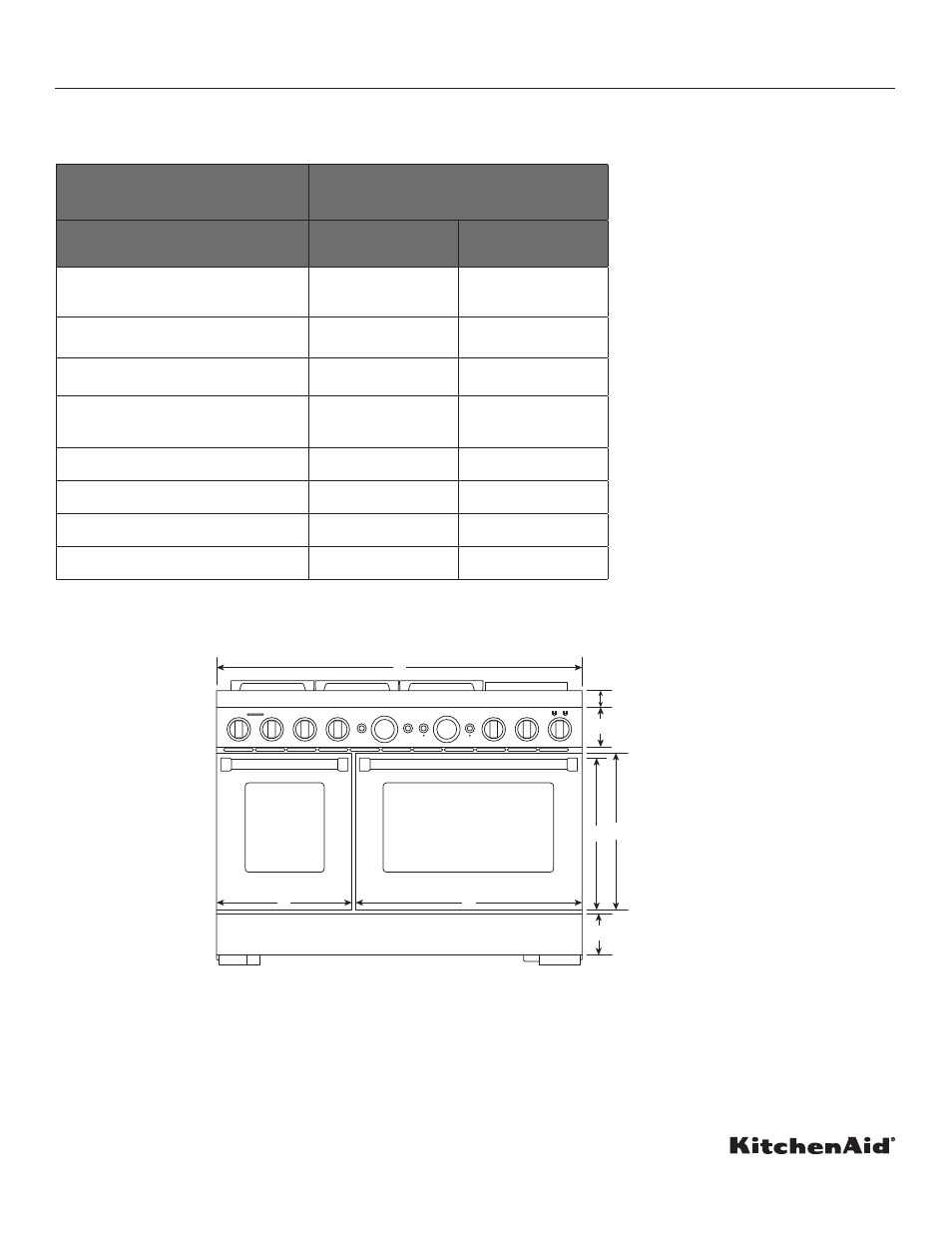

DIMENSIONS
COMMERCIAL-STYLE RANGES
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All KitchenAid
® appliances are appropriately UL, CUL or CSA approved.
2 of 30
PRODUCT DIMENSIONS
MODEL #
48" (121.9 cm) RANGES
DUAL-FUEL/GAS
KFDC558J/KFGC558J
Unit of Measurement in cm
Overall Width (A) 47 7 ⁄
8
121.6
Bullnose Height (B) 2 3 ⁄
16
5.6
Control Panel Height (C) 5 5 ⁄
16
13.5
Door Heights (D) 20 11 ⁄
16
52.6
Door Bottoms to Handle Tops (E) 20 50.8
Secondary Oven Door Width (F) 17 3 ⁄
4
45.1
Main Oven Door Width (G) 29 5 ⁄
8
75.2
Toe-Kick Height (H) 5 1 ⁄
2
14
FRONT VIEW
G
B
D
C
E
A
H
F
