22

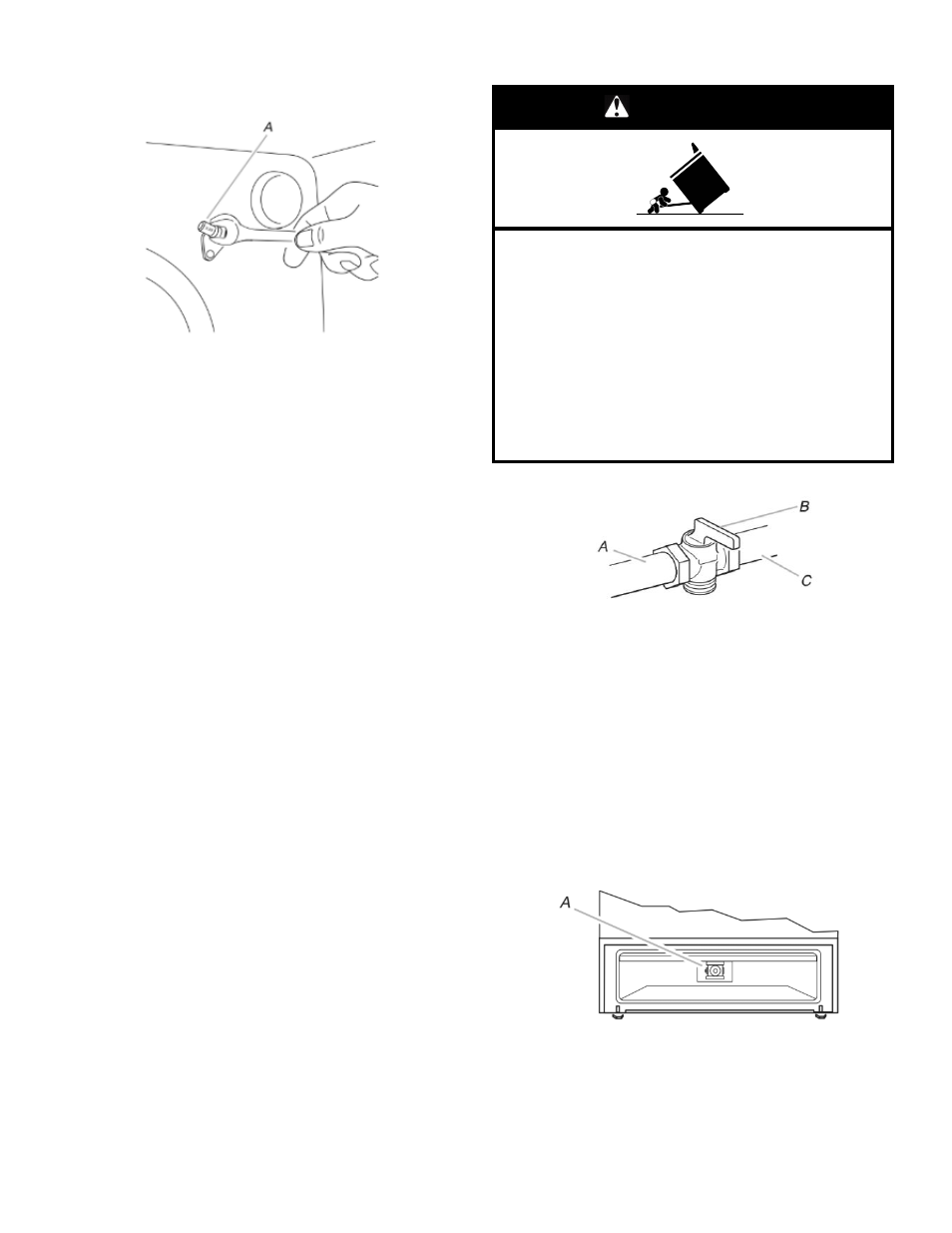

6. Place the broil burner on the broil burner orifice hood and
insert the broil burner ceramic igniter in the hole in the rear of
the oven.
A. Orifice hood
7.
Position the broil burner against the top of the oven and attach
it with 2 screws.
8.
Replace storage drawer, warming drawer or premium storage
drawer. See the “Storage Drawer” or “Warming Drawer or
Premium Storage Drawer” section.
9.
Replace the oven door if it has been removed. See the “Oven
Door” section.
10.
Replace the oven racks
.
Complete Installation (Natural Gas to Propane
Gas)
1. Refer to the “Make Gas Connection” section for properly
connecting the range to the gas supply.
2. Refer to the “Electronic Ignition System” section for proper
burner ignition, operation and burner flame adjustments.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Checking for proper cooktop, bake and broil burner flame is
very important. The small inner cone should have a very
distinct blue flame 1/4" (0.64 cm) to 1/2" (1.3 cm) long. The
outer cone is not as distinct as the inner cone. Propane gas
flames have a slightly yellow tip.
3. Refer to “Complete Installation” in the “Installation
Instructions” section of this manual to complete this
procedure.
NOTE: Make sure to save the orifices that have just been
replaced in the conversion.
Natural Gas Conversion
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip bracket to floor or wall per installation
instructions.
Slide range back so rear range foot is engaged in the
slot of the anti-tip bracket.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed
and engaged.
Failure to follow these instructions can result in death or
serious burns to children and adults.
1. Turn manual shutoff valve to the closed position.
A. To range
B. Manual shut-off valve closed position
C. Gas supply line
2. Unplug range or disconnect power.
To Convert Gas Pressure Regulator (Propane Gas
to Natural Gas)
1.
Remove the premium storage drawer, warming drawer or
baking drawer or premium storage drawer. See the
Remove/Replace Drawer, Storage Drawer or Warming
Drawer or Premium Storage Drawer section.
2.
Locate gas pressure regulator at rear of the drawer
compartment.
NOTE: On models with a warming drawer or baking drawer,
an access cover must be removed to access the gas pressure
regulator.
A. Gas pressure regulator
IMPORTANT: Do not remove the gas pressure regulator.
3. Remove plastic cover from gas pressure regulator cap.
