18

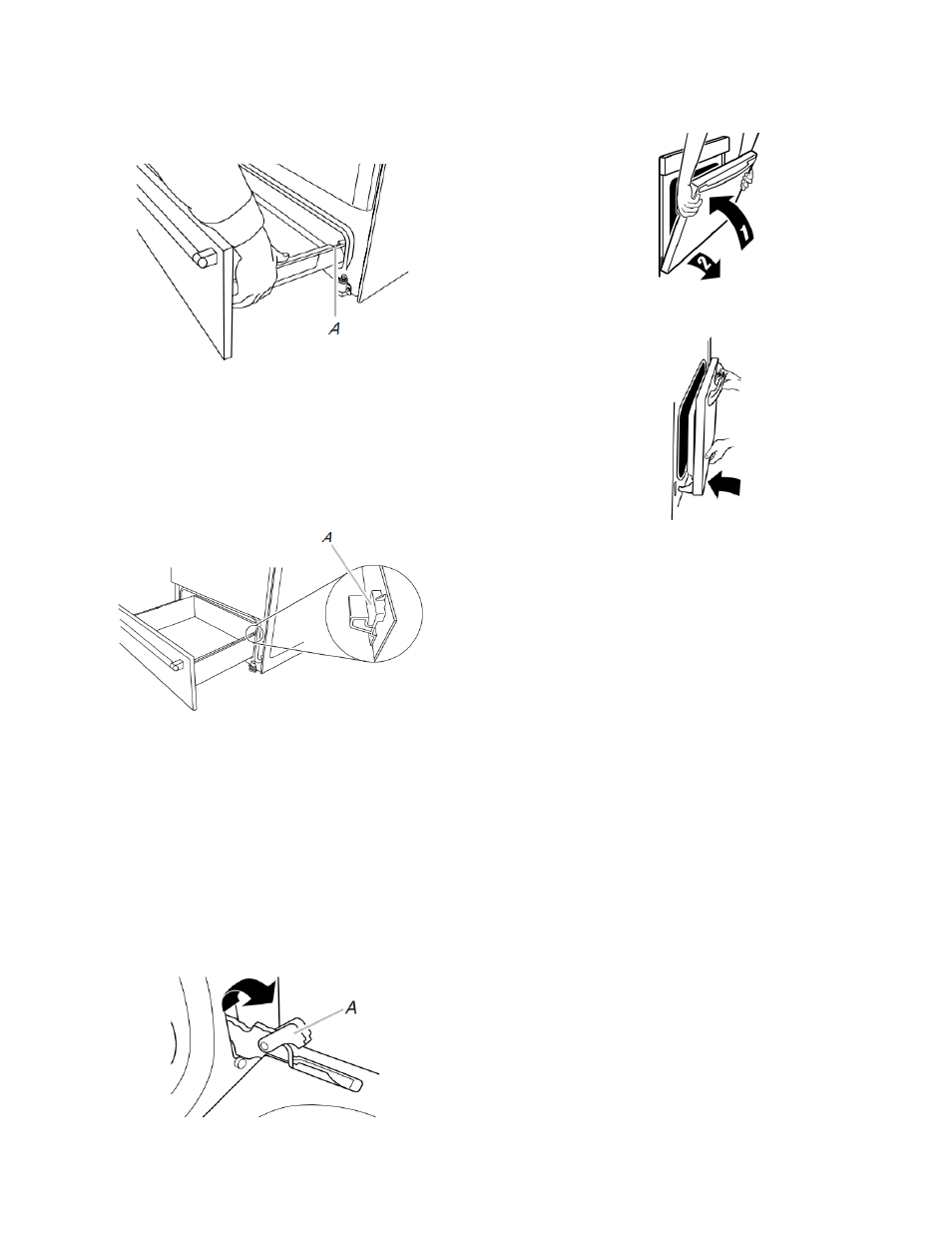

Storage Drawer (on some models)
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pull the storage drawer straight back to the drawer stop.
A. Drawer stop notch
2. Lift up the front of the drawer and pull the drawer out.
To Replace:
1. Lift up the front of the drawer and place the rear of the drawer
inside the range so that the drawer stop notch is behind the
drawer glide.
2. Lower the drawer so that the edge of the slide rail drops into
the slot in the drawer glide.
3. Slowly push the drawer into the range.
A. Engage drawer glide
NOTE: When properly installed, the rear slides on the bottom of
the drawer will engage the base rails and the drawer will not tip
when items are placed in the drawer.
Oven Door
For normal range use, it is not suggested to remove the oven
door. However, if removal is necessary, make sure the oven is
OFF and cool. Then, follow these instructions. The oven door is
heavy.
To Remove:
1. Open oven door all the way.
2. Pinch the hinge latch between two fingers and pull forward.
Repeat on other side of oven door.
A. Hinge Latch
3. Close the oven door as far as it will shut.
4. Lift the oven door while holding both sides.
Continue to push the oven door closed and pull it away from
the oven door frame.
To Replace:
1. Insert both hanger arms into the door.
2. Open the oven door.
You should hear a click as the door is set into place.
3. Move the hinge levers back to the locked position. Check that
the door is free to open and close. If it is not, repeat the
removal and installation procedures.
Complete Installation
1.
Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2.
Check that you have all of your tools.
3.
Dispose of/recycle all packaging materials.
4.
Check that the range is level. See the “Level Range” section.
5.
Use a mild solution of liquid household cleaner and warm
water to remove waxy residue caused by shipping material.
Dry thoroughly with a soft cloth. For more information, read
the “Range Maintenance and Care” section.
6.
Read the Quick Start Guide and online Control Guide.
7.
Turn on surface burners and oven. See the Quick Start Guide
and online Control Guide for specific instruction on range
operation.
If Range Does Not Operate, Check the Following:
■ Household fuse is intact and tight; or circuit breaker has
not tripped.
■ Range is plugged into a grounded 3-prong outlet.
■ Gas pressure regulator shutoff valve is in the “on”
position.
■ Electrical supply is connected.
■ See the online “Troubleshooting” section.
8.
When the range has been on for 5 minutes, check for heat. If
the range is cold, turn off the range and check that the gas
supply line shut-off valve is open.
■ If the gas supply line shut-off valve is closed, open it, and
then repeat the 5 minute test as outlined above.
■ If the gas supply line shutoff valve is open, press the
CANCEL button on the oven control panel and contact a
qualified technician.
