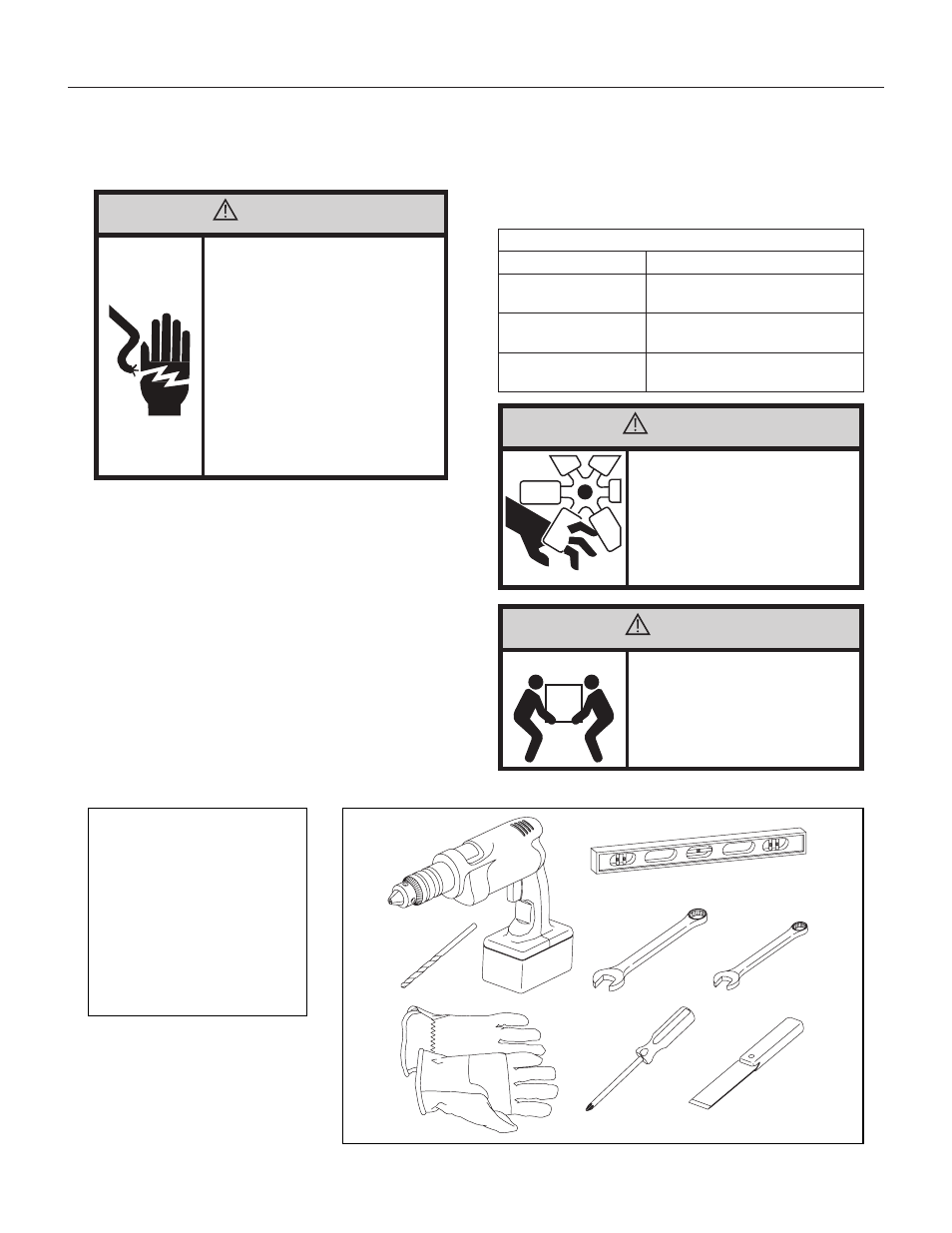

IMPORTANT: Before you begin the actual installation of your air
conditioner, check your local electrical codes and the information below.
Your air conditioner must be connected to a power source with the same
alternating current (A.C.) voltage and amperage as marked on the name
plate located on the chassis. Only A.C. can be used. Direct Current (D.C.)
cannot be used.
CIRCUIT PROTECTION – Use on single outlet circuit only. An overloaded
circuit will invariably cause malfunction or failure of an air conditioner;
therefore, it is necessary that the electrical protection is adequate. Due
to momentary high current demand when the air conditioner starts, use a
“TIME DELAY” fuse or a HACR type circuit breaker. Consult your dealer or
power company if in doubt.
Refer to the electrical name plate located on the air conditioner chassis
(see Page 2) to determine the correct fuse or circuit breaker amperage for
your model (see Table 1 on Page 6 for electrical receptacle types).
The power cord has a plug with a grounding prong and a matching
receptacle is required.
Recommended Tools
1. Power Drill
2.
5 /
32
" Drill Bit
3. Gloves
4. Carpenters Level
5.
5 /
16
" Wrench
6. 1 /
4
" Wrench
7. #2 Phillips Screw Driver
8. Putty Knife or (wood stir stick)
1
2
3
4
6 5
8 7
5/16
5/16
1/4
1/4
ITEMS NOT TO SCALE
Installation Instructions
READ THIS FIRST! Electrical Requirements
WARNING
Electrical Shock Hazard
Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.
Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.
Always plug into a grounded 3 prong outlet.
Failure to follow these instructions can result
in death, fire, or electrical shock.
The following instructions are for standard chassis model groups
distinguished by the first three letters of the model designations cabinet
sizes listed in Table 2.
Table 2
MODEL DESIGNATION
CABINET SIZE (H x W x D)
SMALL CHASSIS –
KCS, KES, KHS
15 15 ⁄
16
" x 25 15 ⁄
16
" x 29 "
(405 mm x 660 mm x 737 mm)
MEDIUM CHASSIS –
KCM, KEM, KHM
17 15 ⁄
16
" x 25 15 ⁄
16
" x 29 "
(455 mm x 660 mm x 737 mm)
LARGE CHASSIS –
KCL, KEL, KHL
20 3 ⁄
16
" x 28 " x 35 1 ⁄
2
"
(513 mm x 711 mm x 851 mm)
WARNING
MOVING PARTS HAZARDS
•
Do not operate unit out of sleeve or
with front grille removed.
•
Do not place hands in blower or fan
blade areas.
Failure to do so can result in serious injury.
CAUTION
Excessive Weight Hazard
Use two or more people when installing your
air conditioner.
Failure to do so can result in back or other
injury.
