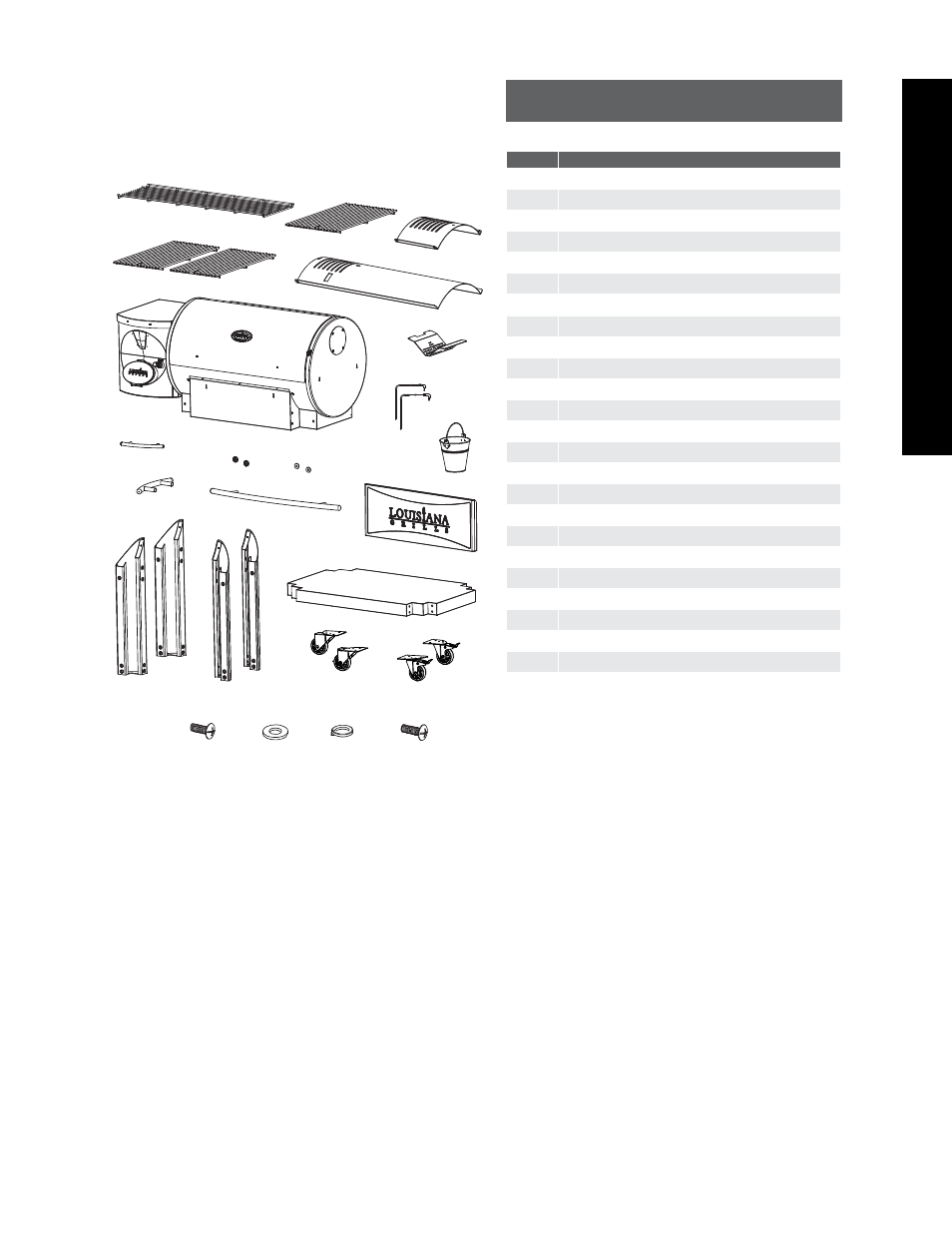

PART# DESCRIPTION
1 Upper Cooking Rack (x1)
2 Cooking Grid A (x1)
3 Cooking Grid B (x2)
4 Flame Broiler Slider (x1)
5 Flame Broiler Main Plate (x1)
6 Burn Grate (x1)
7 Meat Probe (x2)
8 Main Barrel / Hopper Assembly (x1)
9 Grease Bucket (x1)
10 Hopper Lid Handle (x1)
11 Hopper Side Handle (x1)
12 Lid Handle Washer (x2)
13 Lid Handle Bezel (x2)
14 Lid Handle (x1)
15 Front Shelf (x1)
16 Bottom Shelf (x1)
17 Support Leg A (x2)
18 Support Leg B (x2)
19 Caster Wheel (x2)
20 Locking Caster Wheel (x2)
A Screw (x32)
B Washer (x44)
C Locking Washer (x44)
D Screw (x12)
LG1200FP
NOTE: Due to ongoing product development, parts are subject to change without notice.
