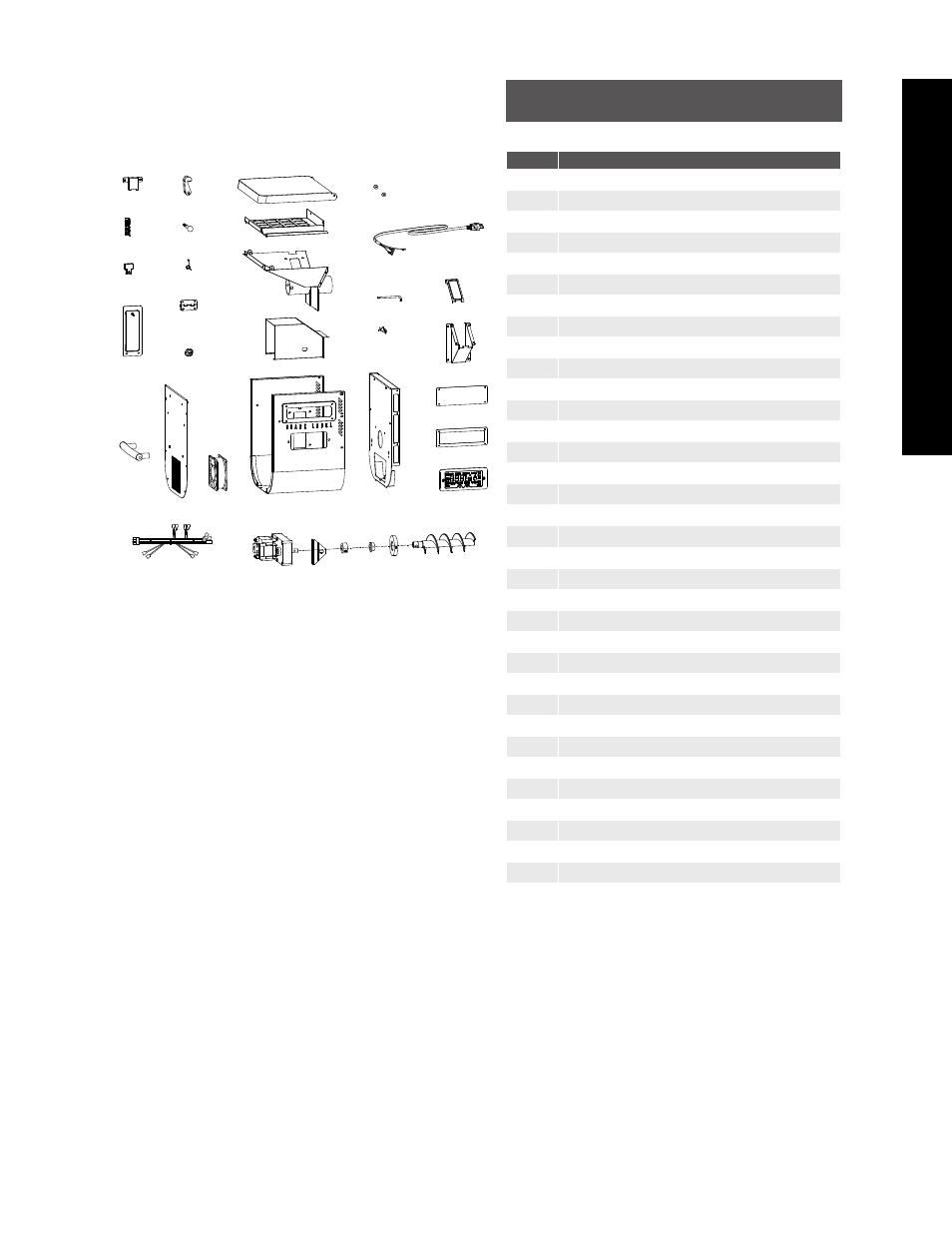

PART# DESCRIPTION
1 Hopper Clean-out Lock Guider (x1)
2 Hopper Clean-out Lock Spring (x1)
3 Hopper Clean-out Lock Strike Box (x1)
4 Hopper Clean-out Door (x1)
5 Hopper Clean-out Lock Latch (x1)
6 Hopper Clean-out Knob, Connector (x1)
7 Hopper Clean-out Door Spring (x1)
8 Short Hinger (x1)
9 Power Cord Buckle (x1)
10 Hopper Lid (x1)
11 Hopper Safety Screen (x1)
12 Hopper Body Assembly (x1)
13 Air Flow Channel (x1)
14 Plastic Washers (x2)
15 Power Cord (x1)
16 Hopper Clean-out Axis (x1)
17 R-pin (x1)
18 Hopper Clean-out Door Frame (x1)
19 Hopper Clean-out Diversion Channel (x1)
20 Hopper Sight Glass (x1)
21 Hopper Site Glass Frame (x1)
22 Control Board (x1)
23 Hopper Front Panel (x1)
24 Hopper Housing (x1)
25 Fan (x1)
26 Hopper Access Panel (x1)
27 Hopper Side Handle (x1)
28 Wire Harness (x1)
29 Auger Motor (x1)
30 Auger Mounting Bracket (x1)
31 Lock Collar (x1)
32 Nylon Bushing (x1)
33 Metal End Cap (x1)
34 Auger Flighting (x1)
HOPPER
NOTE: Due to ongoing product development, parts are subject to change without notice.
