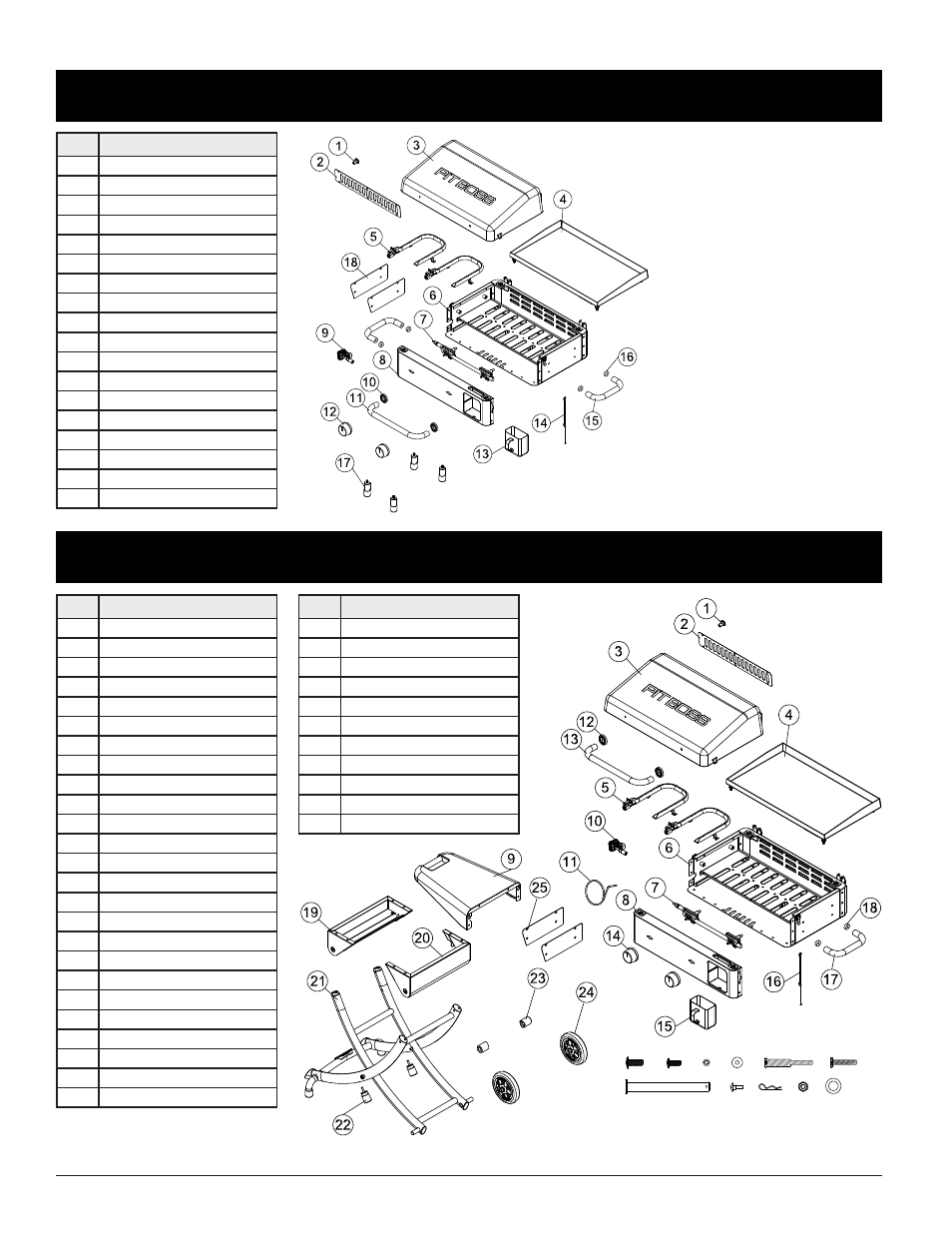

NOTE: Due to ongoing product development, parts are subject to change without notice.
Part# Description
1
Ventilation Handle (x1)
2
Ventilation Adjustment Plant (x1)
3
Lid (x1)
4
Hot Plate (x1)
5
Burner (x2)
6
Body (x1)
7
Manifold (x1)
8
Control Panel (x1)
9
Regulator (x1)
10
Lid Handle Bezel (x2)
11
Lid Handle (x1)
12
Control Knob (x2)
13
Grease Cup (x1)
14
Lighting Rod (x1)
15
Side Handle (x2)
16
Side Handle Bezel (x4)
17
Fire Box Feet (x4)
18
Isolation Plant (x2)
Part# Description
1
Ventilation Handle (x1)
2
Ventilation Adjustment Plant (x1)
3
Lid (x1)
4
Hot Plate (x1)
5
Burner (x2)
6
Body (x1)
7
Manifold (x1)
8
Control Panel (x1)
9
Side Shelf (x1)
10
Regulator (x1)
11
Cylinder Wire Retainer (x1)
12
Lid Handle Bezel (x2)
13
Lid Handle (x1)
14
Control Knob (x2)
15
Grease Cup (x1)
16
Lighting Rod (x1)
17
Side Handle (x1)
18
Side Handle Bezel (x2)
19
Fire Box Support - Left (x1)
20
Fire Box Support - Right (x1)
21
Cart Assembly (x1)
22
Cart Support Feet (x2)
23
Wheel Bushing (x2)
24
Wheel (x2)
25
Isolation Plant (x2)
Part# Description
A
Screw (x8)
B
Screw (x2)
C
Nut (x2)
D
Washer (x2)
E
Leg Locking Pin (x1)
F
Leg Pin (x2)
G
Wheel Axle Pin (x2)
H
Lighting Rod Screw (x1)
I
Wheel Cotter Pin (x2)
J
Nut (x3)
K
Wheel Axle Washer (x2)
REPLACEMENT PARTS - PB2BSPD
REPLACEMENT PARTS- PB2BSPS
A
G
H
I
J
K
B
C
D
E
F
