Advanced Contact Technology
www.multi-contact.com 3 / 8
3
1
4
2
5
6

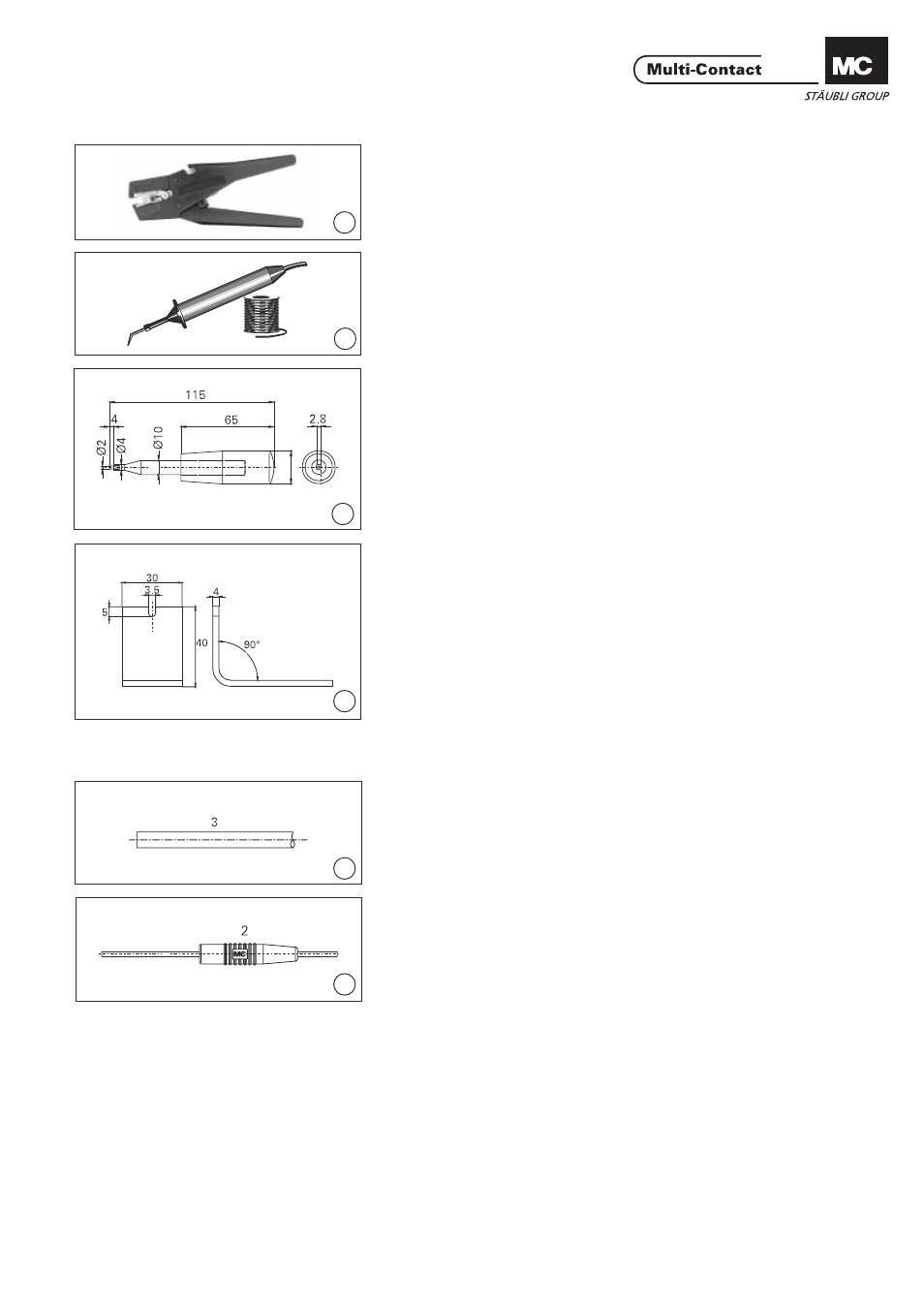

Outillage nécessaire Tools required
(ill. 1)
Pince à dénuder „Stripax“
No. de Cde 25.0015 (ill. 1)
Cable stripper “Stripax”
Order No. 25.0015
(ill. 2)
- Fer à souder 60W
- Fil de soudure
p.e. Elsold Ø 1,5mm
DIN 8516 (L-Sn60PbCuZ) (ill. 2)
- Soldering iron 60W
- Solder
e.g. Elsold Ø 1,5mm
DIN 8516 (L-Sn60PbCuZ)
(ill. 3)
Outil auxiliaire A-LK2
Matière recommandée:Acier (ill. 3)
Auxiliary tool A-LK2
Recommended material: Steel
(ill. 4)
Outil auxiliaire 410-BK
Matière recommandée: Laiton (ill. 4)
Auxiliary tool 410-BK
Recommended material: Brass
Préparation du câble Preparation of the cable
(ill. 5)
Couper le câble 3 à la longueur
prévu e. (ill. 5)
Cut the cable 3 to the desired nomi-
nal length.
(ill. 6)
Introduire le câble dans l’isolant 2. (ill. 6)
Slide insulation 2 onto cable.
