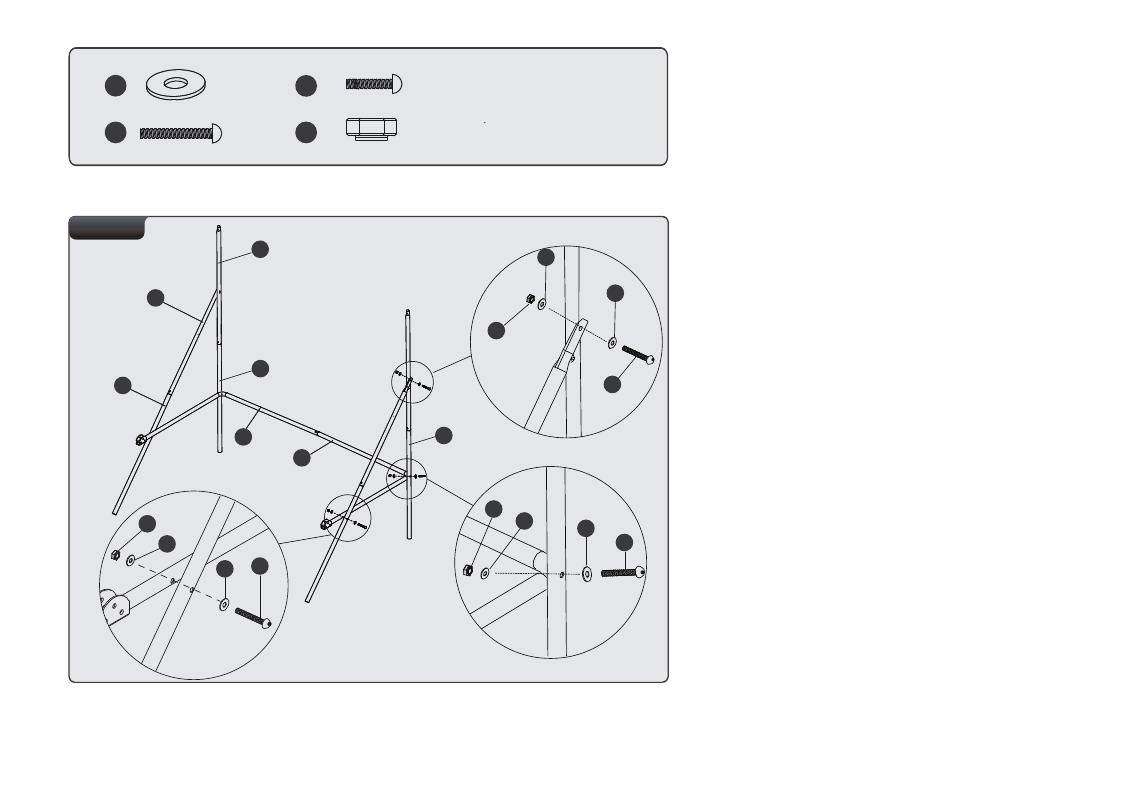

FIG.4
6. Attach the Left and Right L Tubes (#5 and #6) to Left and
Right Tubes (#3 and #4) using Bolts(#26), Washers (#22)
and Nuts(#27), and then attach the Left and Right L Tube
(#5 and #6) to the Mounting Tube (#8) using Bolts (#26),
Washers (#22) and Nuts(#27).
7. Attach the Support Tube and Mounting Tube (#7 and #8)
to the Board Tube(#2) using Bolts(#24), Washers (#22)
and Nuts(#27), repeat this step for other side.
Note: Make sure the spring lock is face down.
