7
Introduction
3. Instruction for Wall Mount
-
- Do not mount your PROSCAN TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
The wall mount kit (not included) with your purchase allows you to mount your
PROSCAN TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. PROSCAN is not responsible for any damage to the product or injury to
yourself or others resulting from the wall-mounting.
- 4 pcs of type M5x12 screws are required for installing the wall mount bracket to
your
PROSCAN TV. Do not use screws that are longer than 12 mm. Screws that
are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury.
PROSCAN is not liable for these kinds of
incidents

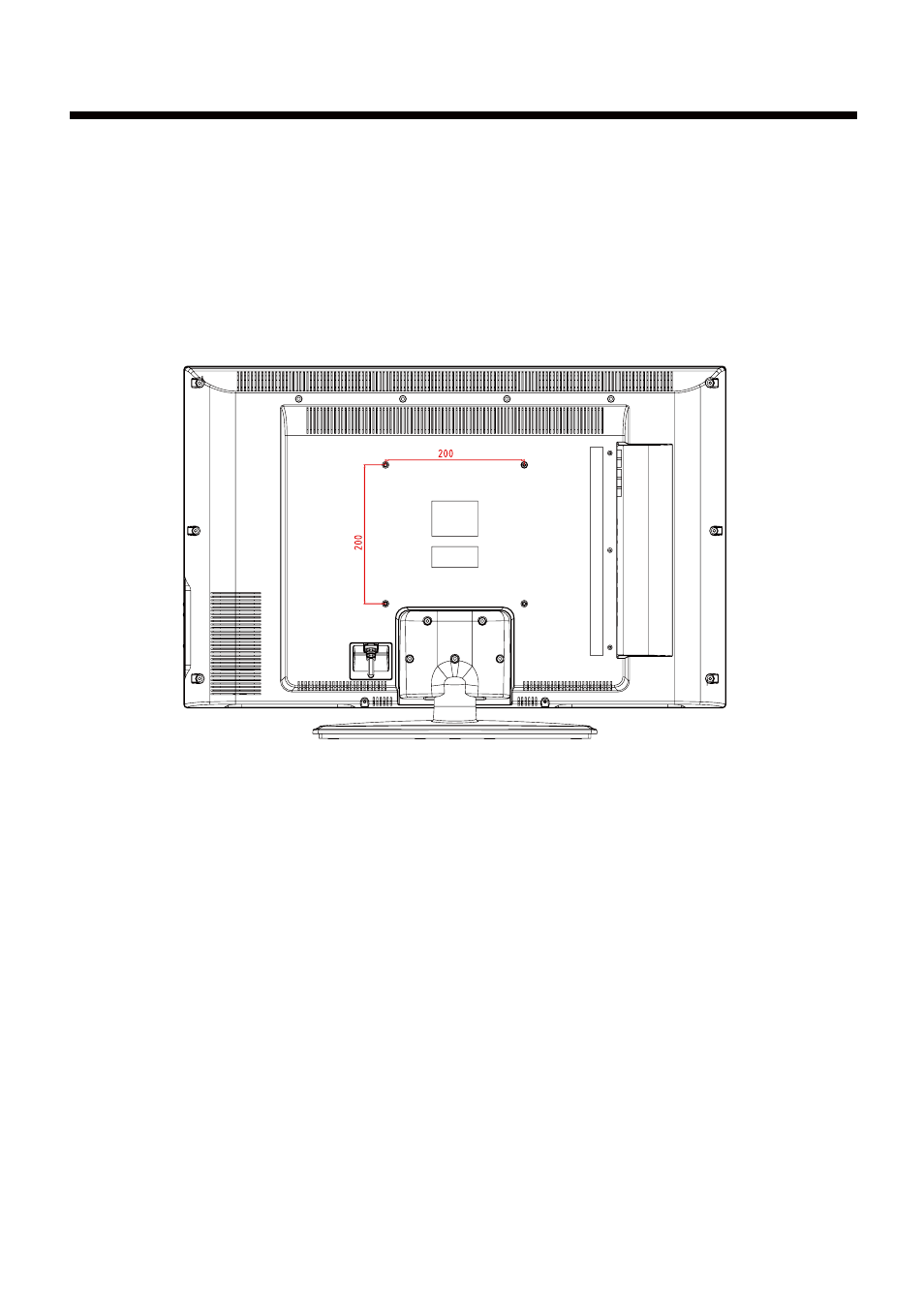

Dimensions for Mounting Hole Pattern
This PROSCAN TV is compatible with a 200mm x 200mm mounting hole pattern.
mm
mm
