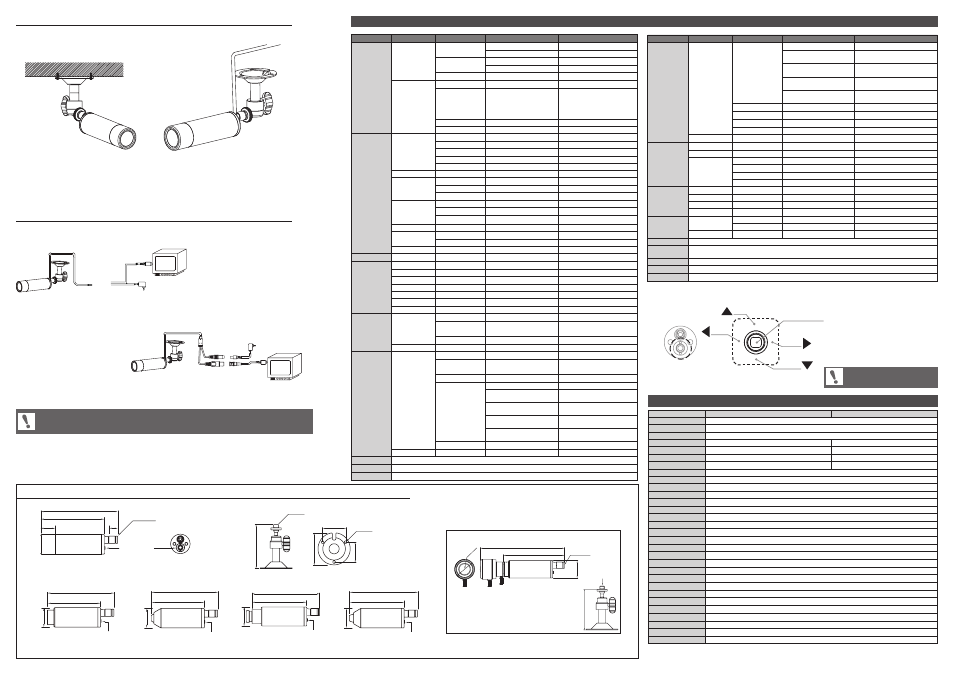

MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
PRIVACY
ON
AREA SEL
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244)
PAL:(000 ~ 288)
BOTTOM NTSC:(000 ~ 244)
PAL:(000 ~ 288)
LEFT NTSC:(000 ~ 474)
PAL:(000 ~ 468)
RIGHT NTSC:(000 ~ 474)
PAL:(000 ~ 468)
COLOR (1 ~ 8)
TRANSP 0.00, 0.50, 0.75, 1.00
MOSAIC OFF,ON
RETURN
OFF
DAY&NIGHT
COLOR
B/W
BURST OFF,ON
AUTO
BURST OFF,ON
DELAY CNT 0 ~ 255
DAY -> NIGHT 0 ~ 255
NIGHT ->DAY 0 ~ 255
NR
NR MODE OFF,Y,C,Y/C
Y LEVEL (000 ~ 015)
C LEVEL (000 ~ 015)
RETURN
CAMERA ID
ON
EDIT MODE
RETURN
OFF
LANGUAGE ENGLISH / 日本語 / DEUTSCH / FRANCAIS / Русский / PORTUGUÊS / ESPAÑOL / 中文
CAMERA
RESET
BACK
EXIT
SAVE ALL
*Important Note :
- Any changes made to the camera settings must be saved prior to exiting the OSD menu.
Else all changes will be discarded.
SPECIFICATION
Signal Format NTSC PAL
Image Device 1/3” 960H SONY EXview HAD CCD II
Scanning System 2 : 1 Interlace
H Resolution. 750TV Lines
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
S/N Ratio More than 50dB(AGC OFF)
Min. Illumination 0.1Lux
Sync System Internal
Gamma r= 0.45
Video Output 1.0 Vp-p Composite (75Ω)
OSD Built in (Inner Key / Joystick)
BLC OFF / BLC / HLC
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR OFF / ON (Level adjustable)
ATR OFF / ON (Level adjustable)
Function MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night Digital D&N (Option)
Lens Board Lens, Pinhole Lens. Varifocal Lens
Language ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHANESE
Operating Temperature 40°F~122°F (-40°C~+50°C)
Storage Temperature -4°F~140°F (-20°C~+60°C)
Humidity Less than 80%
Power Consumption DC12V ±10% Max. 70mA
Weight Approx. 68g
Dimension(mm) 23.0Ø x 75.2mm
IP Rating IP67 (WaterProof Cap Housing only)
Specifications and designs are subject to change for improving the functionality of this product without notice.
MENU
(SELECTION KEY)
UP
DOWN
LEFT
RIGHT
OSD MENU STRUCTURE
MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
SHUTTER/AGC
AUTO
HIGH LUMINANCE
MODE SHUT
BRIGHTNESS (000 ~ 255)
LOW LUMINANCE MODE AGC,OFF
BRIGHTNESS x0.25,x0.50,x0.75,x1.00
RETURN
MANUAL
MODE SHUT+AGC
SHUTTER
1/50(PAL),1/100(NTSC)
1/60(NTSC),1/120(PAL)
1/250,1/500,1/1000
1/2000,1/4000,1/10000
AGC 6,12,18,24,30,36,42,44.8
RETURN
WHITE BAL
ATW
SPEED (000 ~ 255)
DELAY CNT (000 ~ 255)
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR,OUTDOOR
RETURN
PUSH
USER1
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
USER2
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
ANTI CR
MANUAL LEVEL 27 ~ 105
RETURN
PUSH LOCK
BACK LIGHT OFF,BLC,HLC
PIC ADJUST
MIRROR OFF,ON
BRIGHTNESS (000 ~ 255)
CONTRAST (000 ~ 255)
SHARPNESS (000 ~ 255)
HUE (000 ~ 255)
GAIN (000 ~ 255)
RETURN
ATR
ON
LUMINANCE LOW,MID,HIGH
CONTRAST
LOW,MIDLOW,MID,
MIDHIGH,HIGH
RETURN
OFF
MOTION DET
ON
DETECT SENS (000 ~ 255)
BLOCK DISP
OFF,ON,ENABLE
(CONTROLER)
MONITOR AREA ON,OFF
AREA SEL
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244)
PAL:(000 ~ 288)
BOTTOM NTSC:(000 ~ 244)
PAL:(000 ~ 288)
LEFT NTSC:(000 ~ 474)
PAL:(000 ~ 468)
RIGHT NTSC:(000 ~ 474)
PAL:(000 ~ 468)
RETURN
OFF
NEXT
EXIT
SAVE ALL
When the OSD control, Rubber
Please adjust the side to put a
finger deep.
(A'ssy View)
DC12V
(BLACK)
BNC FEMALE
DC12V POWER SUPPLY
VIDEO IN
TV MONITOR
DIY CABLE CONNECTION
TV MONITOR
DC12V POWER SUPPLY
VIDEO IN
Yellow (Video Out)
Black (GND Common)
Red ( DC +12V IN)
LEAD WIRE CONNECTION (STANDARD)
MOUNTING POSITION
CONNECTION
When you install the camera, please glue up the end of cable to keep it stable in order to protect the
camera from the humidity problems.
50
1/4"-20UNC
40
28.6
24.8
3-Ф 3.2
Ф
23
78.1
62.6
Joy-Stick
Control Rubber
77.9
62.4
Joy-Stick
Control Rubber
Ф
23
78.7
63.2
Joy-Stick
Control Rubber
Ф
23
81.9
Ф
23
Joy-Stick
Control Rubber
66.4
112.5
80.75
Ф
23
1/4"-20 UNC Ф 29
73
1/4"-20UNC
90.7
75.2
16.8 10.5
1/4"-20 UNC
Joy-Stick
Control Rubber
Board Lens
(Only IP67)
DIMENSIONS
Unit(mm)
