4
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
■ Drill
■ 1 ¹⁄₄" (3.0 cm) drill bit
■
¹⁄₈" (3.0 mm) drill bit for pilot holes
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Caulking gun and weatherproof caulking compound
■ Flat-blade screwdriver
■ Phillips screwdriver
■ Saber or keyhole saw
Parts Supplied
■ T-10 Torx ®† adapter
■ 4 - 4.5 x 13 mm mounting screws
Parts Needed
■ 3 - UL listed wire connectors
■ 1 - 75W max, 120V incandescent light bulb
For cabinets with recessed bottoms:
■ Two 2" (5.1 cm) wide filler strips. Length and thickness
determined by recess dimensions.
■ Four flat head wood screws or machine screws with washers
and nuts (to attach filler strips).
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
■ It is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located inside the range hood on
the left wall.
■ Range hood location should be away from strong draft areas,
such as windows, doors and strong heating vents.
■ Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance. Consult the
cooktop/range manufacturer installation instructions before
making any cutouts.
■ This range hood is recommended for use with cooktops with
a maximum total rating of 40,000 BTUs or less.
■ Grounded electrical outlet is required. See “Electrical
Requirements” section.
■ All openings in ceiling and wall where range hood will be
installed must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title 24
CFR, Part 328 (formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD, Part 280) or when such
standard is not applicable, the standard for Manufactured Home
Installation 1982 (Manufactured Home Sites, Communities and
Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local
codes.

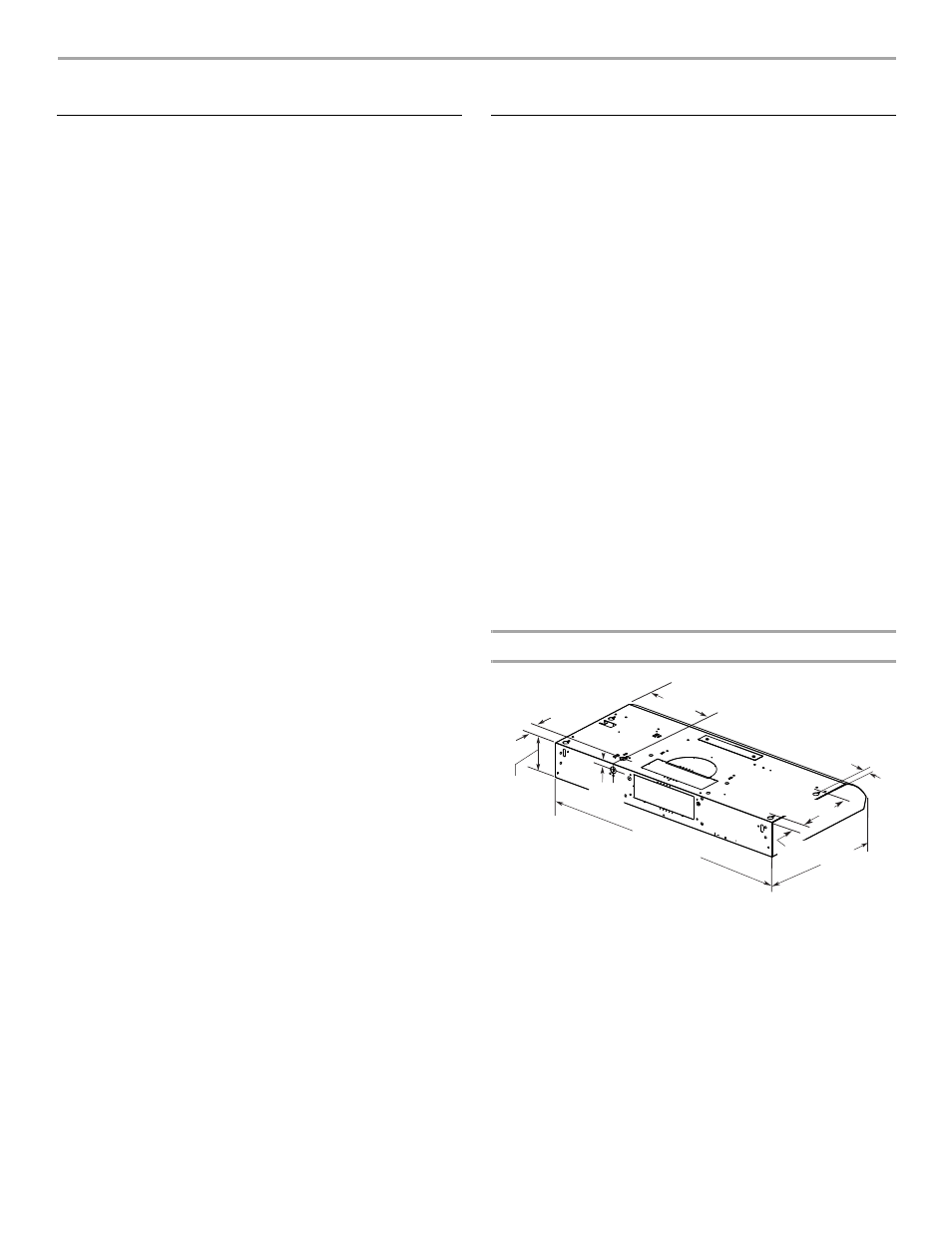

Product Dimensions
†®TORX is a registered trademark of Saturn Fasteners, Inc.
1"
(2.5 cm)
4 ¹⁵⁄₁₆ "
(12.5 cm)
6 ⁹⁄₁₆ " (16.7 cm) or
9 ⁹⁄₁₆ " (24.4 cm)
29 ¹⁵⁄₁₆ " (76.0 cm) or
35 ¹⁵⁄₁₆ " (91.0 cm) 18 ⁵⁄₈ "
(47.3 cm)
1¹⁄₂ "
(3.8 cm)
9"
(22.9 cm)
2"
(5.1 cm)
⁷⁄₈ "
(2.2 cm)
