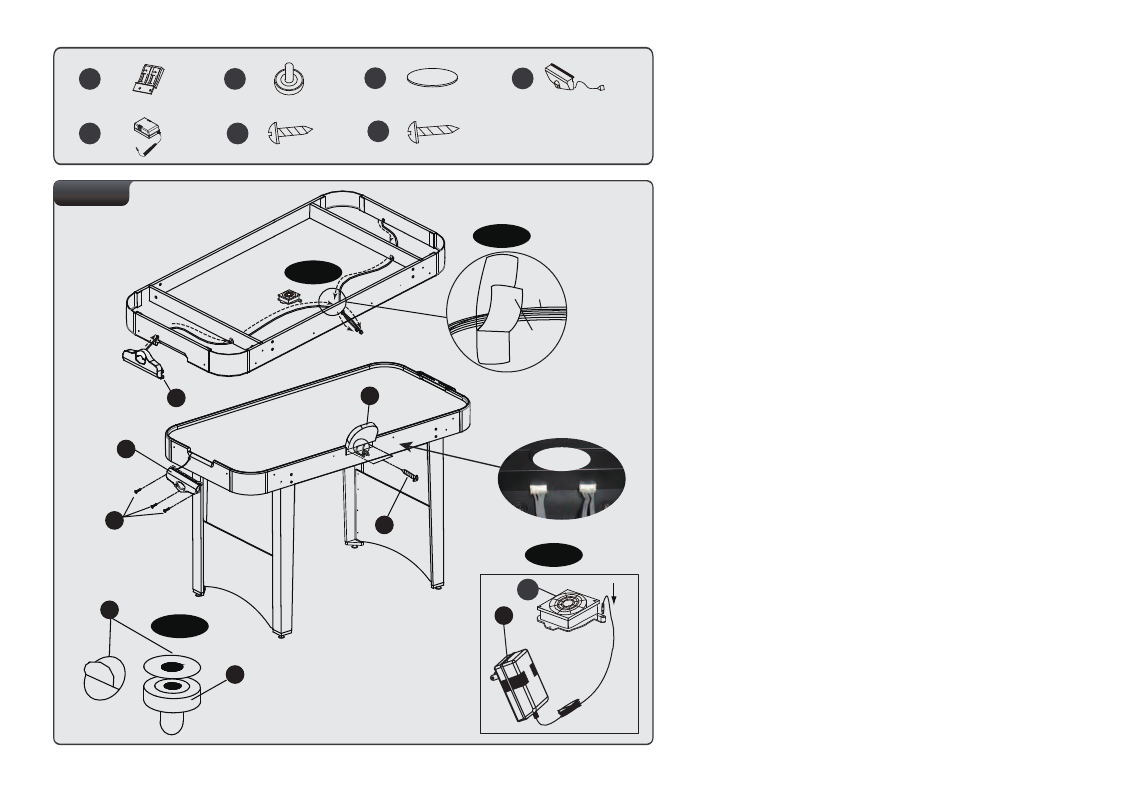

7. Thread the wire from Goal Box (#10) through the openings
of the end aprons and support of the playfield to the
opening of side apron and use Velcro Straps to fix Scorer
Wire. See FIG. 3A & 3B.
8. Attach the Goals (#10) to each End Apron using three
Screws (#A4). See FIG. 3.
9. Attach the Electronic Scorer (#6) to the side apron in the
pre-drilled holes using two Screws (#A5). Insert the Scorer
Wire into the Electronic Scorer (#6). See FIG. 3 & 3C.
10. Tear off the backside paper of the Felt Pad (#9) and stick
them at the bottom of the Pushers (#8). See FIG. 3D.
11. Insert the Adaptor (#11) into the DC Motor (#P1). See
FIG. 3E.
