ASSEMBLY INSTRUCTIONS

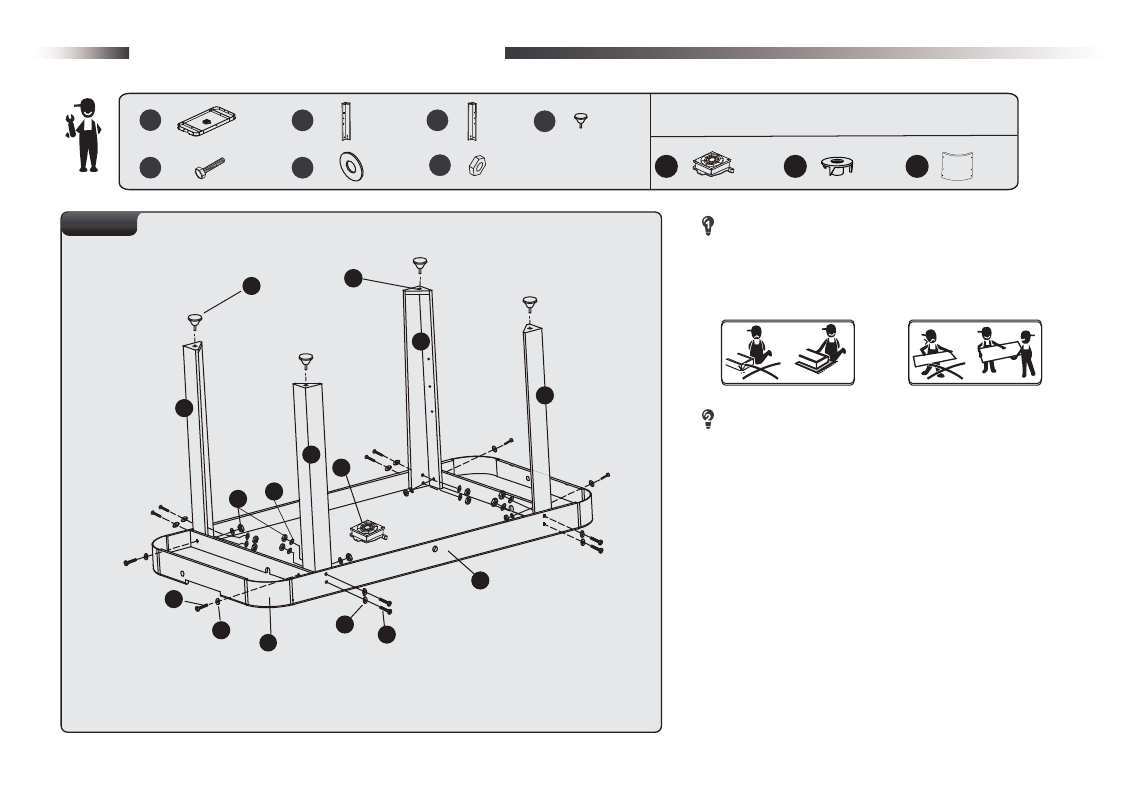

FIG.1
Find a clean, level place to begin the assembly of your Air
Hockey Table. The table will be assembled upside down
and then turned over on its legs once the assembly
completed. This game table is heavy, and turning it over
will require at least two adults.
Remove all the parts from the box and verify that you have
all of the listed parts as shown on the parts list. Carefully
cut or tear the four corners of the box so that the bottom of
the box can be used as your work surface.
FIG. 1
x2 x4 x1
1
1
2
2
x12
A2
x24
A3
x12 A6
x2
x1 x12 x4
3
4
P1 P3 P2
PRE-INSTALLED
P1
P3
P2
1
A3
A3
A2
A2
2
2
5
3
3
A6
A3
5
3. Place the Main Frame (#1) face down on a clean and flat
surface. Attach the Right Leg (#2) and Left Leg (#3) to the
Main Frame using three Leg Bolts (#A2) , six Leg
Washers (#A3) and three nuts (#A6) per Leg. See FIG.1.
4. Screw the Leg Levelers (#5) into the bottom of each leg.
