1) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

2) Find the appropriate threaded holes on mounting

strap. Assemble mounting screws into threaded holes.
3) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
4) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.

5) Push fixture to wall, carefully passing mounting screws
through holes in fixture.
6) Screw threaded balls onto mounting screws. Tighten
threaded balls to secure fixture to wall.
7) Insert recommended bulbs.
8) Raise glass up to fixture. Pass hole in top of glass over

threaded pipe on bottom of socket cluster.

9) Fit glass inside top of cage on fixture. Pass hole in bottom of

glass over end of threaded pipe on bottom of socket cluster.

10) Pass hole in rubber washer over end of threaded pipe

protruding from bottom of glass. Pass hole in flat washer

over end of threaded pipe. Screw hexnut onto end of

threaded pipe. (DO NOT over tighten.)

11) Raise bottom of cage up to fixture. Fit bottom of cage over

glass. Pass hole in bottom of cage over end of threaded

pipe protruding from bottom of glass.

12) Thread hex coupling onto end of threaded pipe protruding

from bottom of cage.

13) Thread end of short threaded pipe into hex coupling

protruding from bottom of cage.

14) Pass hole in bottom trim over end of short threaded pipe.
15) Thread finial onto end of short threaded pipe. Tighten finial

to secure cage in place.

INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS AND/
OR IN WET LOCATIONS.
16) Mounting surface should be clean, dry, flat and 1/4” larger

that the canopy on all sides. Any gaps between the mounting

surface and canopy exceeding 3/16” should be corrected

as required.

17) With silicone caulking compound, caulk completely around

where back of canopy meets the wall surface to prevent

water from seeping into outlet box.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 1/2/15

IS-49600-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

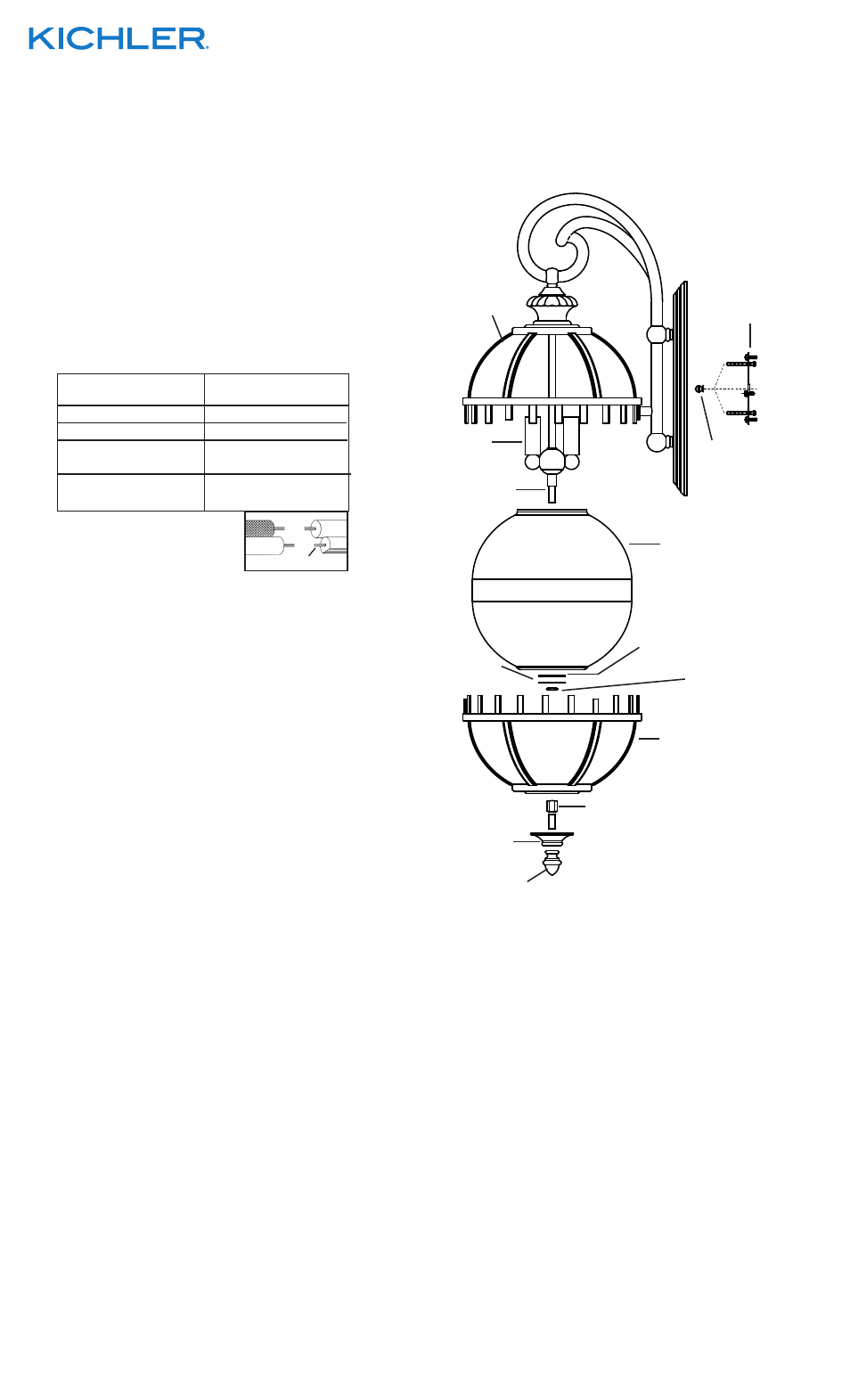

THREADED BALL

BOULE FILETE

MOUNTING STRAP

COLLLIER DE

FIXATION
